Detailed Product Description
Impact Energy: 300J, 150J Pendulum Rising Angle: 150°
Torque Of Pendulum: 80.38, 160.77NM Maximum Impact Speed: 5.2m/s
Specimen Support Span: 40mm Impact Blade Thickness: 16mm
Power: Three-phase, 380V, ±10%, 50Hz Main Unit Dimension: 2124x600x1340mm
High Light:

ball drop machine

,

impact test equipment

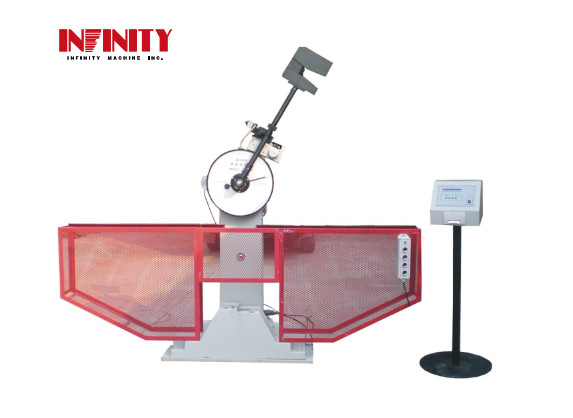

Metal Charpy Impact Test Equipment Impact Resistance ISO83-76 / ISO148-83



Model: RS-8217



Brief Introduction:



This machine is applied to testing impact resistance property of metal materials under dynamic load, to judge material impact toughness value under dynamic load. One operating cycle of this machine includes pendulum rising, latch withdraw, impact, auto swing and energy display. Pendulum rises automatically after impact specimen for the next impact test. It adopts PLC control and LCD display, it is convenient for reading and operation, high efficiency and high security. It can better show its superiority for continuous large number of impact test on metallurgy researching and in test room of mechanical manufacturer.

Metal Charpy Impact Test Equipment Impact Resistance ISO83-76 / ISO148-83 0

Test standards:



1. National standard: GB/T3808-2002 test method of pendulum impact testing machine

2. International standard: ISO83-76 steel charpy (U notch) impact test

3. International standard: ISO148-83 steel simple beam (V notch) impact test



Basic structure:



This impact testing machine is composed of base, framework, pendulum, dial indicating device, drive mechanism, pendulum hanging mechanism, safety device, electric device control section, energy measuring, control system and data processing system.



Basic configuration:



Host machine: including base, framework, pendulum, dial indicating device, transmission mechanism, pendulum hanging mechanism, safety device, bearing jaw and optical-electricity encoder (Japanese LINE).



Pendulum: 300J, 150J, each is one piece.



Electric device control segment: one set, with auto control function for manifold cycles of taking pendulum, impacting, swinging pendulum and impacting again.



Energy measuring and control system plus data processing system: one set, LCD displays rising angle, angle and energy, and test result can be automatically printed out after impact.



Specification:



 Impact energy  300J, 150J
 Pendulum rising angle  150°
 Distance from pendulum axis to impact center  750mm
 Torque of pendulum  80.38, 160.77NM
 Maximum impact speed  5.2m/s
 Specimen support span  40mm
 Arc radius specimen bearing terminal  R1+0.5 (GB/T3808-2002 GB/T229-94)
 Arc radius of impact blade  R2-2.5mm (GB/T3808-2002 GB/T229-94)
 Intersection angle of impact blade  30°
 Impact blade thickness  16mm
 Angular displacement sensor resolution:  0.1°
 Power  three-phase, 380V, ±10%, 50Hz
 Main unit dimension (WxDxH)  about 2124x600x1340mm
 Weight  about 500kg
