JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber
JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber
JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE
Model Number: RS-8220A3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Drop Height: 600~1400mm Control Way Of Ropped Ball: DC Electromagnetic Control
Steel Ball Weight: JIS Standard, GB/T14485 Standard (optional) Dimension: W720 X D760 X H2000mm
Weight: 210Kg Power Supply: AC220V 50/60Hz 1A Or Specified By User
High Light:

impact resistance tester

,

impact test equipment

,

JIS K6745 Impact Testing Machine

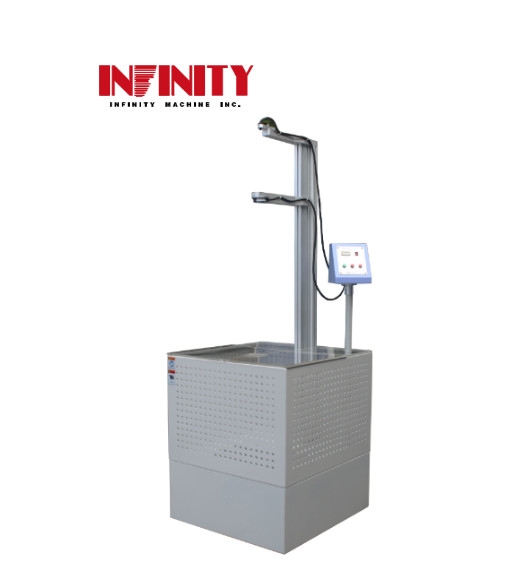

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber



Model: RS-8220A



Application:



This tester is suitable for testing the fastness of plastic, ceramic, acrylic, glass fiber and test coating, etc.



Features:



It adopts DC electromagnet control mode, put the steel ball under the electromagnetic chuck and steel ball is adsorbed automatically; press Drop button, the chuck immediately release steel ball, then steel ball will do free-fall testing to impact specimen surface. Drop height can be adjusted up and down, and with a scale to view the height. And specimen drop height can be known by Infrared mark lamp of impact point.



Key parts of this machine are all quality products with reliable performance, and there are various drop accessories, making your test accurate and effective.



Specification:



 Model  RS-8220A

 Drop height

 600~1400mm
 Control way of ropped ball  DC electromagnetic control
 Steel ball weight  JIS Standard 112g, 198g, 225g, 357g, 533g, 1042g, 2280g  (Standard)
 Standard GB/T14485: 454g, 761g, 1053g, 1735g (Optional)
 Dimension ( WxDxH )  720 x 760 x 2000mm
 Weight  210Kg
 Power  AC220V 50/60Hz 1A



Package:



JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber 0



JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber 1



JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber 2
