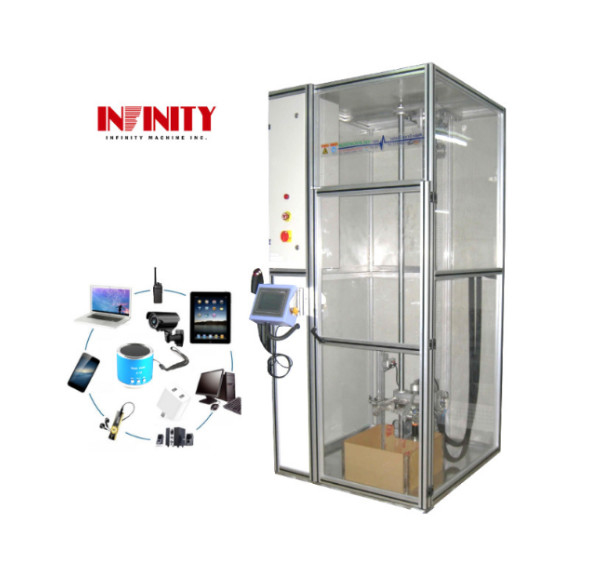

Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32

Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32

  • Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32
  • Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32
Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Drop Height: 300~2000mm Sample Weight: 2kg (MAX.)
Controller: LCD + PLC Min Release Height: 300mm
Air Source: >0.5MPa Weight: 420kg
Dimension: 1000x1180x2415mm Power Supply: AC220V 30A Or 110V 60Hz 6A
Drop Way: 4 Corners, 8 Edges, 2 Faces 4 Sides
High Light:

drop weight tester

,

drop test equipment

,

Impact Testing Machine IEC 60068-2-32

Drop Test Machine , Drop Weight Impact Testing Machine IEC 60068-2-32



Model: DT2000



Application:



This drop test machine is aimed at assessing the effect of unintentional drop of the product by user in actual use on the product performance, which is applicable to the original-gesture drop test of mobile phone, tablet, e-reader, telephone, e-dictionary, and other consuming electronic products.



Standard: IEC 60068-2-32





Machine Structure:



This drop test machine adopts AC variable-frequency and variable-speed motor plus synchronous pulley for adjusting drop height range, which is durable;



This drop test machine adopts a color LCD touch panel plus PLC for motion control and set, by which drop cycles can be preset and power-off memory function is provided; all control parameters will be set via the touch panel: drop, reset, height setting, number of drops and count, etc.;



Operator just needs to input the size of the product to be subject to drop test via the screen only: length L, width W, thickness T, diagonal interval DI; so that the tester can auto raise up to the set drop height for testing.



After the drop finishes, the fixture block will automatically return to the set sucking height (generally, at a height of 600~800mm)



4 corners, 8edges, 2 faces, 4 sides can be set to drop and impact on base, if the product is not regular shape, we can make the clamping fixture for the test.



The product will be released at the height around 300mm, that can make sure the impact gesture of the product on the base.



The drop bases: steel plate, marble board, wood board.

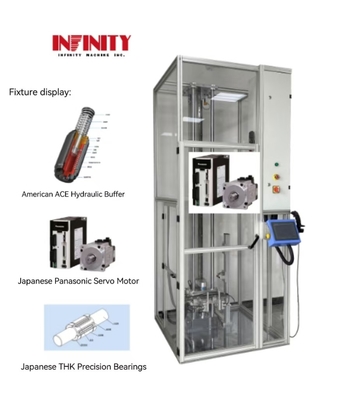

The adoption of Japanese THK high precision low friction slide rail, the friction effect of fixture during dropping can be minimized.

Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32 0

Specification:



 Model  DT2000
 Drop height  300~2000mm
 Max sample weight  2kg
 Drop height setting  Touch panel setting and display
 Min release height  300mm
 Counter  0~999,999 (settable)
 Air source  ≥0.5MPa
 Tester size  W1000xD1180xH2415mm
 Weight  420kg
 Power supply  AC220V 50Hz 3A or 110V 60Hz 6A

Our workshop:

Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32 1



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.

Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32 2

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32 3Drop Test Machine For Drop Weight Impact Testing IEC 60068-2-32 4



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.
