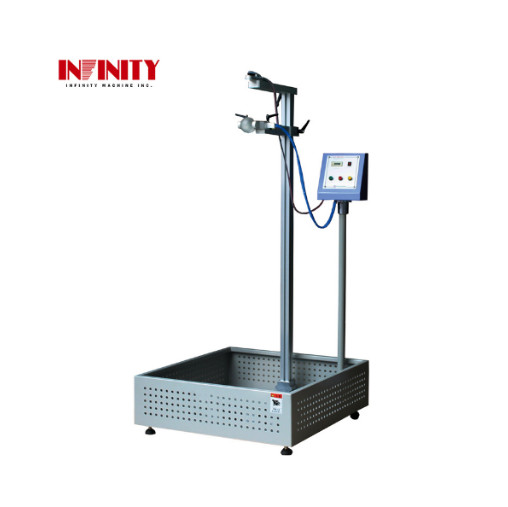

Air Pressure Automatic Reliability Drop Weight Tear Tester Steel Ball Drop Test Machine,Steel Ball Drop Impact Tester

Air Pressure Automatic Reliability Drop Weight Tear Tester Steel Ball Drop Test Machine,Steel Ball Drop Impact Tester

  • Air Pressure Automatic Reliability Drop Weight Tear Tester Steel Ball Drop Test Machine,Steel Ball Drop Impact Tester
Air Pressure Automatic Reliability Drop Weight Tear Tester Steel Ball Drop Test Machine,Steel Ball Drop Impact Tester
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: B8200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Drop Height: 300~1800mm (optional 2000mm) Max Sample Weight: 2kg
Dropping Height Indicator: Scale Indicator, 1cm Min Dropping Area: 500x600mm
Air Pressure: ≥0.5MPa Weight: 85Kg
Dimension: 700x900x2300mm Power Supply: AC220V 50Hz 5A Or Specified By User
High Light:

drop weight tester

,

drop test equipment



Air Pressure Automatic Reliability Drop Weight Tear Tester Steel Ball Drop Test Machine,

Steel Ball Drop Impact Tester



Model: B8200



Application:



Apply for repeating dropping (light dropping) testing of mobile phone, telephone receiver, interphone, MP3, CD, electronic dictionary, etc. To check if the products’ parts and function normal or not after many times light dropping.



Features:



Easy operation and good price.

Marble, steel plate, wood plate for dropping plate can be optional.

Adopt Japan SMC precision pneumatic component, move up and down by hands and there is a scale for indicating the height.



Specification:



 Model  B8200
 Dropping height indicator  Scale indicator, 1cm Min
 Effective dropping height  300~1800mm (optional 2000mm)
 Max tested weight  2Kg
 Dropping plate  Steel plate, cement floor, wooden plate
 Dropping area  500x600mm
 Air pressure  ≥0.5MPa
 Dimension (WxDxH)  700x900x2300mm
 Main unit weight  85Kg
 Power supply  AC220V 50Hz 5A or specified by user
