| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8019 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Max. Capacity: | 1000N.m | Measure Range: | 10-1000N.m |
|---|---|---|---|
| Measure Angle: | 0-100,000° | Dimensions Of Clamp Sample: | ¢6-¢32mm |
| External Dimensions: | 1500×420×1250mm | Environment Temperature: | 10℃～40℃ |
| Relative Humidity: | ≤80% | Power Supply: | AC 220V 50 Hz |
| Highlight: | utm universal testing machine,computerized universal testing machine,Servo Control Torsion Bar Tester |
||

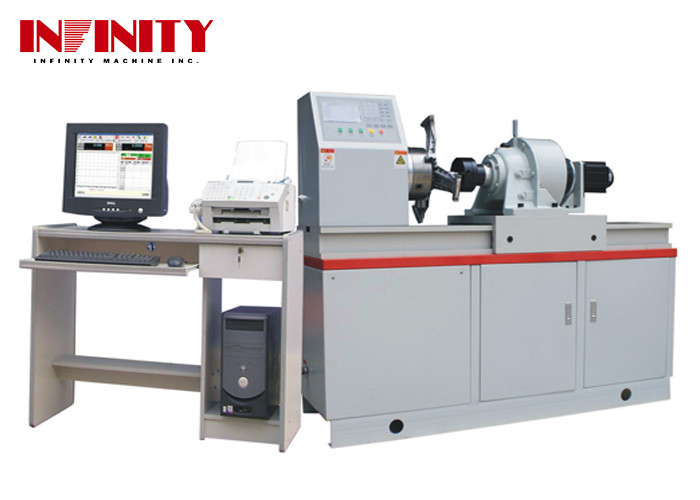

Servo Control Electronic Universal Testing Machine / Torsion Bar Tester
Model: RS-8019
Purpose:
It is mainly used for metal and nonmetal different kinds of materials torsion testing, which can realize the control of torsion and torsion angle. Add related accessories that can also perform anti-torsion testing on parts and components. Under the mode of microcomputer control, if it is equipped with minor angle measuring equipment, accurate test data such as torsion elastic modulus (shear modulus G) and proportional stress (TP) can be acquired. It is necessary test equipment for quality inspection entities, scientific research institutes of colleges and industrial and mining enterprises.
This machine is of horizontal type steel structure, and the exterior is of high-quality steel plate high-spraying cover. Drive system adopts reliable components, and the noise of drive system working is less than 60dB.
Drive loading system adopts Japanese Panasonic servo system to control. Torque measurement adopts high-accuracy torque sensor and measurement of turn angle adopts imported high-accuracy photoelectric encoder.
Specification:
| Max. load | 1000N.m |
| Relative error | ±1% |
| Measurement range of torque | 10-1000N.m |
| Measurement range of torque angle | 0°-100,000° |
| Relative error of torque angle | ±1% |
| Speed | 0.2-1000°/min, stepless speed regulating |
| Max. distance between chucks | 550mm |
| Dimensions of clamp sample | ¢6-¢32mm |
| External dimensions | 1500×420×1250mm |
| Safety protection | overloading protection and overflow, overpressure and overheat protection of electronic control system |
| Power | single phase 0.75Kw |
| Weight | about 550kg |
| Power supply | AC220V 50 Hz |
| Environment temperature | 10℃～40℃ |
| Relative humidity | ≤80% |
Configurations:
A. Host testing machine:
1. 1000 N.m host 1 set
2. Torque sensor 1 pc
3. High-accuracy planet reduction box 1 set
4. AC servo motor and servo system (Japanese Panasonic) 1 set
5. Loading hand wheel 1 pair
B. Control system of testing machine:
Control system with liquid crystal display (as figure 2) 1 set
Features: it can realize host operation independent from computer to avoid affecting normal test due to computer virus and other factors.
C. Torsion clamp of testing machine 1 set (standard configuration)
D. Microcomputer configuration of testing machine:
1. One Lenovo computer 1 set (Dikaryon 1.6G/ RAM 1G/ HDD 160G/ DVD/ 17” LC/ Lenovo attached legal XP system)
2. One HP A4 color ink jet printer 1 set
3. Professional test software in Chinese under Windows XP platform 1 set
Support and Services:
Technical Support and Services
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
