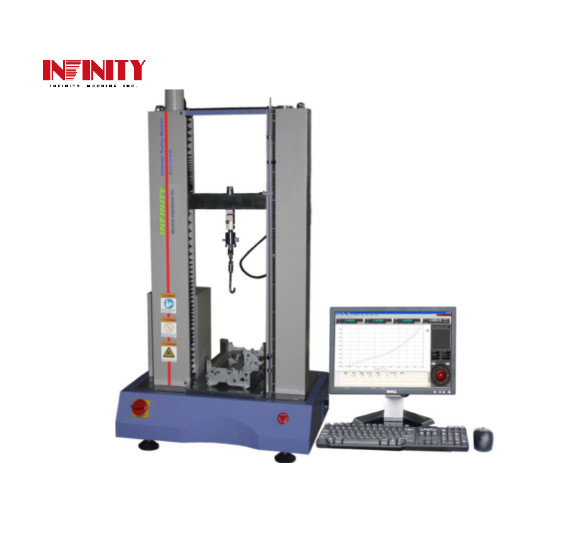

5KN / 10KN Electronic Universal Testing Machine For Metal Bending Test

5KN / 10KN Electronic Universal Testing Machine For Metal Bending Test

  • 5KN / 10KN Electronic Universal Testing Machine For Metal Bending Test
5KN / 10KN Electronic Universal Testing Machine For Metal Bending Test
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8018
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 100N,200N,500N,1KN,2KN,5KN,10KN Stroke: 650, 1000mm (optional)
Effective Width: 400, 500mm (optional) Software: Standard Control Software
Motor: AC Frequency Control Motor Transmission Rod: High Accuracy Ball Screw
Dimension: 760*530*1300mm Power Supply: AC220V 5A Or Specified By User
High Light:

computerized universal testing machine

,

universal test equipment

,

5KN Metal Bending Tester



5KN / 10KN Electronic Universal Testing Machine for Metal Bending Test



Model: RS-8018



Application:



Tape/Adhesive parts peeling test at 90 degree

Metal plate/rod/pipe strength test

Rubber / plastic tensile test

Metal/Plastic bending test

Wire / sheet tensile / compression/tearing/bending test



Scope:



Tape, Automotive, ceramic, composite material, construction, medical/food equipment, metal, paper, plastic, rubber, textile, wood, communication, etc.



Specification:



 Model  RS-8018
 Capacity  100N,200N,500N,1KN,2KN,5KN,10KN
 Unit switch  N,KN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²
 Load resolution  1/500,000
 Load accuracy  ±0.5%
 Load range  Rangless
 Max. stroke  650, 1000mm optional
 Effective width  400, 500mm optional
 Test speed  25~500mm/min
 Speed accuracy  ±1%
 Stroke resolution  0.001mm
 Software  standard control software
 Motor  AC frequency control motor
 Transmission column  high accuracy of ball screw
 Main unit dimension W*D*H  760*530*1300mm
 Main unit weight  165kg
 Power  AC220V 5A or specified by user
