| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8000P |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 4KN | Stroke: | 400mm |
|---|---|---|---|
| Effective Width: | 1000mm | Motor: | AC Servo Motor |
| Software: | Special Control Software | Transmission Rod: | High Accuracy Ball Screw |
| Dimension: | 1400x750x1650mm | Power Supply: | AC220V 10A Or Specified By User |
| High Light: | computerized universal testing machine,universal test equipment |
||

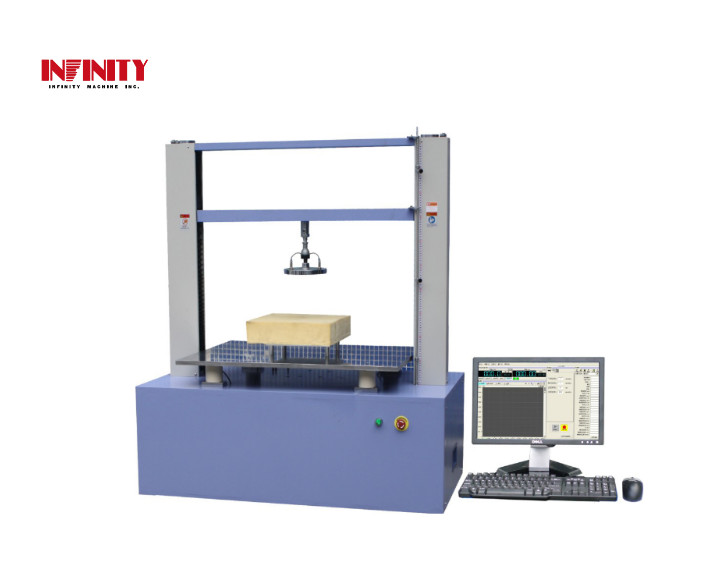

Digital Compression Testing Machine For Concrete , Hardness Testing Machine
Model: RS-8000P
Application:
This tester is suitable for the compression testing, the hardness testing and the fatigue testing of polyfoam, sponge of seats, because of using the programmable software for the control, and the servo motor for the driving, the tester can satisfy the A,B,C three type of testing methods stipulated in the GB/T10807-2006.
Standard:
GB/T10807-2006 ISO 2439: 1997,ASTMD3674,JISK6400-2004
Features:
※ To use four high precise LOAD CELL for the measurement, can guarantee the precision.
※ To use special sense for the auto-zero position adjusting, can guarantee the repeatability.
※ 1000x750mm super big testing space, can satisfy the finished seats of car to be tested.
※ Attach with several fixtures for the different polyfoam, can satisfy all kinds of testing requirement.
※ Special testing software, can satisfy the testing requirement of CI/ the loss rate of lag, after set to zero, can finish the whole testing procedure
automatically.
Specification:
| Model | RS-8000P |
| Capacity (optional) | 4KN ( 4x1000N or specified by user ) |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2 |
| Load resolution | 1/500,000 |
| Load accuracy | ±0.5% |
| Stroke (exclude the grips) | 400mm or specified by user |
| Effective width | 1000mm |
| Test speed | 0.001~600mm/min |
| Speed accuracy | ±0.5% |
| Stroke resolution | 0.001mm |
| Motor | AC servo Motor |
| Software | Special control software |
| Load range | Rangless |
| Transmission rod | High accuracy ball screw |
| Main unit dimension (WxDxH) | 1400x750x1650mm |
| Main unit weight | 550 Kg |
| Power supply | AC220V 10A or specified by user |
Our show room:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
