Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S

Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S

Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S
Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S
Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: U9010
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 10KN Stroke: 600mm
Effective Width: 400mm Load Resolution: 1/200,000
Load Accuracy: ±0.5%F.S Effective Load Range: 0.25%~100%F.S
Dimension: 800x600x1972mm Power Supply: AC220V 10A Or Specified By User
High Light:

utm universal testing machine

,

computerized universal testing machine

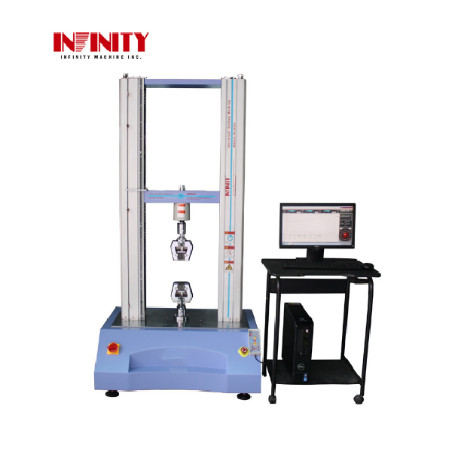

Compression Electronic Universal Testing Machine Model: U9010


Purpose:

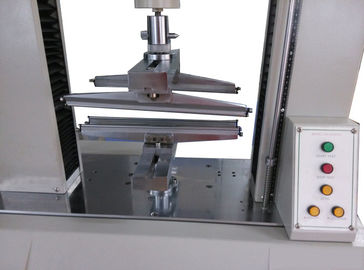

The machine is suitable for 3, 4-points bending test of tempered glass, and also tensile, compression, flexural, peel, shear, tear, bursting, , fatigue tests for wire, metal foil, sheet metal and metal tape, rubber, plastic, air / sea foam, waterproof materials, wire and cable, textile fabrics, net rope, non-woven material by equipped with the different fixtures.

Typical applications:

Glass 3-points bending test
Glass 4-points bending test
Glass compressive strength test
Metal / sheet tensile test
Rubber / plastic tensile test
Metal / plastic bending test
Tape 900/1800 peel strength test
FPC pull test
Beverage packaging compression / bursting force test
The product holding force (Constant) Test
Low cycle fatigue (loop) test
Metal timber three-point bending test
Environmental plywood adhesive force test
The composite woven packaging with strength test
  Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 0
Specification:



 Model  U9010
 Capacity  10kN(1000kgf)
 Unit (switchable)  N, KN, Kgf, Lbf
 Load resolution  1/200,000
 Load accuracy  ±0.5%F.S
 Effective Load range  0.25%~100%F.S
 Stroke (exclude the grips)  600mm
 Effective width  400mm
 Test speed  0.001~500mm/min
 Over-load protection  Auto step into protection when the load is 10% higher than  the max capacity of loadcell.
 Main unit dimension (WxDxH)  800x600x1972mm
 Main unit weight  235 Kg
 Power Supply  AC220V 10A or specified by user


Features:

High-precision:
Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion-proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ± 0.25%, the displacement accuracy is up to 0.001mm.

High intelligence:
Automatically determine the fracture, automatic return, the force units are free to switch languages switchable: Simplified / Traditional Chinese, English. Load - displacement, load - time, displacement - time stress - strain, strain - time, stress - time multi-curve analysis.

Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 1

Test report:
Statements developing is based the Crystal Reports10.0 version, can automatically calculate the strength, elastic modulus E RP0.2 ReL, ReH, elongation, content can be freely altered ,curve automatically generated. Can be exported to Excel, PDF, HTML and other formats.


Language of software: English

Test software:

Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 2

Test report:

Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 3
Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 4

Our Show Room:



Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 5

Support and Services:

Technical Support and Services

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



Packing and Shipping:

Packaging and Shipping

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.

Compression Electronic Universal Testing Machine AC220V 10A 0.25%~100%F.S 6



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
