Name: Economy Type Tablet Lifespan Test Four Stations Mechanical Button Testing Machine
Brand: Infinity Machine International Inc.
SKU: IN-8330C-4
Price: 50,050.00 USD
Availability: InStock

Home Products Keyboard Button Tester

Economy Type Tablet Lifespan Test Four Stations Mechanical Button Testing Machine

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	IN-8330C-4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Four Stations Mechanical Button Testing Machine	Model:	IN-8330C-4
Application:	Suitable For Long-term Click Life Testing Of Buttons On Various Portable Small Electronic Products	Feature:	Can Test Mechanical And Electrical Lifespan
Test Station:	4sets	Test Force Range:	200gf~1000gf (or Specified)
Test Speed:	1~60cycles/min	Test Times:	1~999999cycles Settable
Power:	Electronic	Warranty Period:	1 Year
Highlight:	Economy Tablet Lifespan Test , Four Stations Tablet Lifespan Test , Mechanical Button Tablet Lifespan Test

Economy Type Tablet Lifespan Test Four Stations Mechanical Button Testing Machine

Model:IN-8330C-4

Application:

Suitable for long-term click life testing of buttons on various portable small electronic products, such as mobile phones, tablets, laptops, various remote controls, keyboards, etc.

Features:

Can test mechanical and electrical lifespan (on/off conductivity test)
Each testing station can test three buttons at a time, with adjustable pressure and a calibration system to control the impact force

Technical Parameter:

Model	IN-8330C-4
Test station	4sets
Click on the lever	3 pressing rods per workstation
Click on the probe	¢6mm spherical silicone head, Shore hardness: 50±5° (or specified) can be customized with the same hardness conductive rubber head for tapping touch screen
Test force range	200gf~1000gf (or specified)
Test speed	1~60cycles/min
Test Times	1~999999cycles settable
Dimension (WxDxH)	W850xD480xH1100mm
Weight	260 kg
Power Supply	AC220 50Hz 3A or specified by user

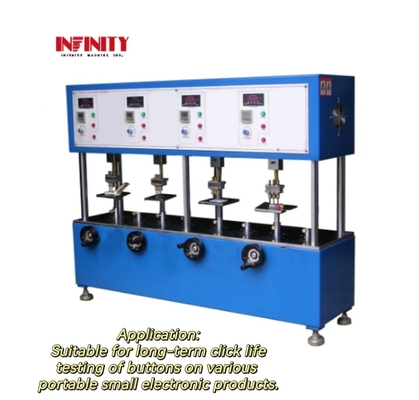

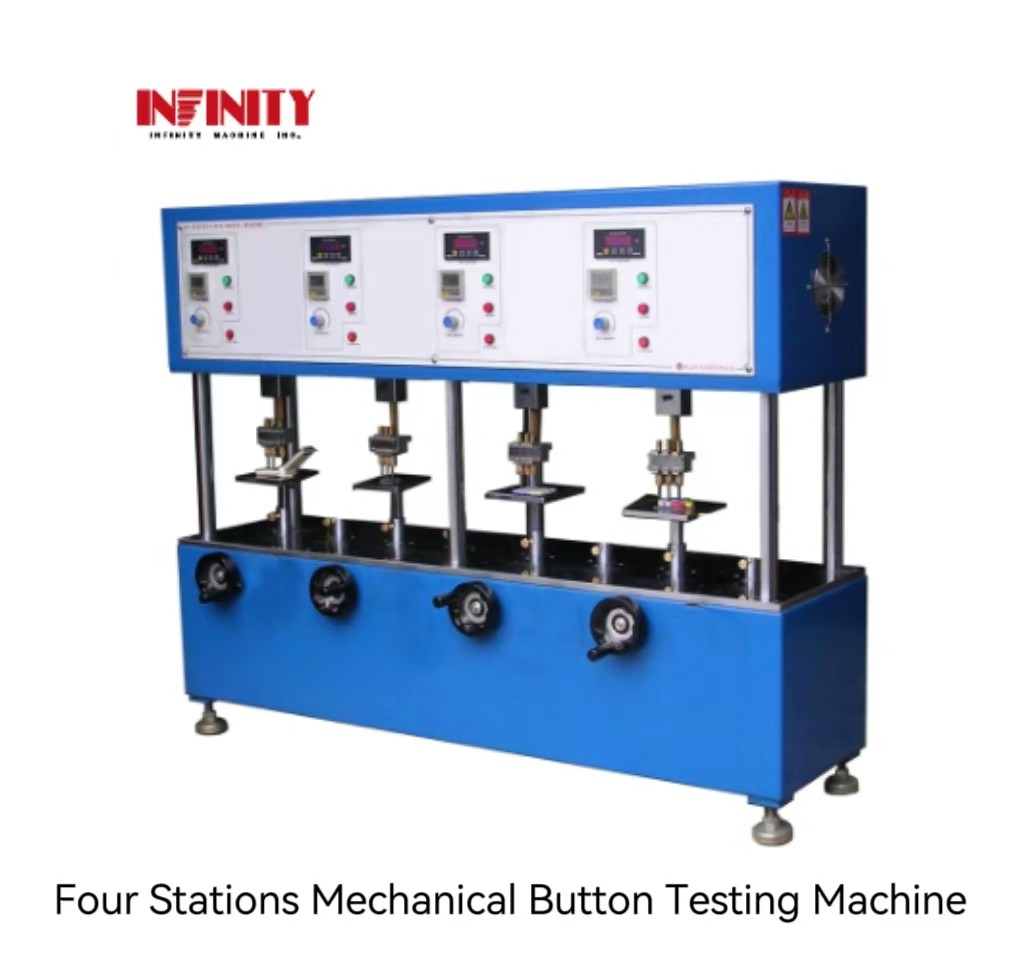

Machine appearance:

Economy Type Tablet Lifespan Test Four Stations Mechanical Button Testing Machine 0

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Company Profile:

Economy Type Tablet Lifespan Test Four Stations Mechanical Button Testing Machine 1

Hot-sale products recommendation:

For more details:

Please contact :Moi Mai

Email:sales2@infinity-machine.com

Tel/Whatsapp/Wechat:+86 181-0308-7812
