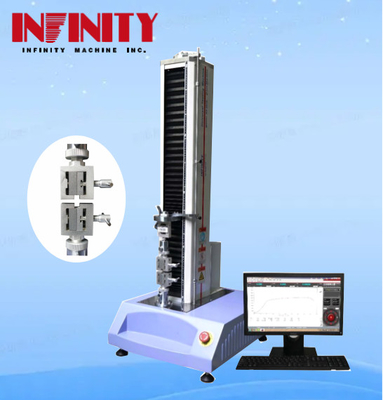

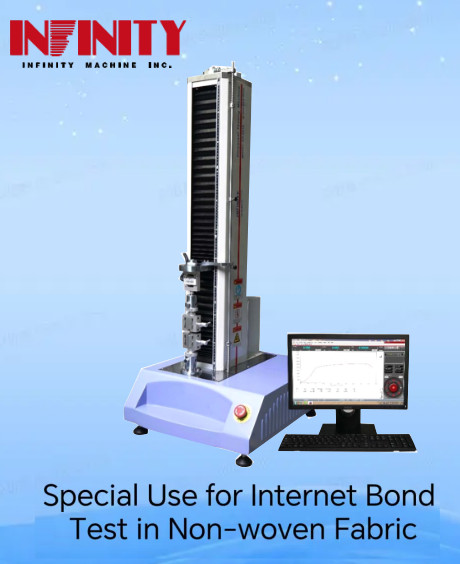

Servo Control Universal Pull Pressure Test Machine(Special Use for Internal Bond Test in Non-woven Fabric)
Product model number: IF2001A1
Application:
It is suitable for drawing, compression, bending, peeling off, cutting, tearing, rubber, plastic, rubber and foam, wire, waterproof material, textile material, wire, wire rope, and other materials.
Standards:
This test machine is manufactured according to the "Electronic universal test machine" GB / T 16491-2008, "General Technical Requirements of Test Machine" GB2611-2007, "Detection of force measurement system of tensile test machine", "Technical conditions of extension meter" JB6146-2007, "General Code for licensing assessment of Manufacturing Measuring Instruments" JJF1246-2010 standard.
Features:
1.Multifunctional:
With different fixtures, stretching, compression, bending, shear, tear, stripping and other tests.
2.High-accuracy:
Japanese Panasonic AC servo motor drive, high precision gap-free ball screw drive, with high precision TRANSCELL explosion-proof LOADCELL, force value accuracy up to ± 0.5%; displacement accuracy up to 0.01mm.
3.High intelligence:
The functions of automatic discrimination break, automatic return, and curve combination, such as load-to-time displacement, displacement-time stress-strain, strain-time, stress-time and other curve analysis.
4.High application:
9 languages can be switched: Simple / Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, global general use.
Specification :
| Model |
IF2001A1
|
|
Force value capacity
|
100N |
| Force value unit: (switchable) |
N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm²
|
| Force value decomposition degree |
1/500,000 |
| Force value accuracy |
±0.5% |
|
Test trip
|
650mm
|
| Test space effective width |
130mm |
| Test speed |
0.01~500mm/min
|
| Speed accuracy |
±0.5% |
| Displacement resolution |
0.001mm
|
| Any power-generating or power-driven machine |
AC servo motor
|
| Drive link |
High-precision ball-rolling screw |
| Equipment Size: (WxDxH) |
500X 600X 1200mm |
| Weight of equipment |
140 Kg
|
| Working power supply |
AC220V 50 / 60Hz or the designated or specified by user
|
Professional test report:
Based on the report developed in Crystal Reports10.0, it can automatically calculate the strength and elastic modulus E and RP0.2,ReL ,ReH ,Extension rate, etc., the report title and content can be freely changed, the curve is automatically generated. Can be remitted as Excel, PDF and other formats.
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
