| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID6005 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200PC PER MONTH |
| Product Name: | Glass Shot Bag Impact Testing Machine | Model: | ID6005 |
|---|---|---|---|
| Impact Method: | Shot Bag Pendulum Impact | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | Glass Shot Bag Impact Testing Machine,GB/T962-1999-6.11 |
||

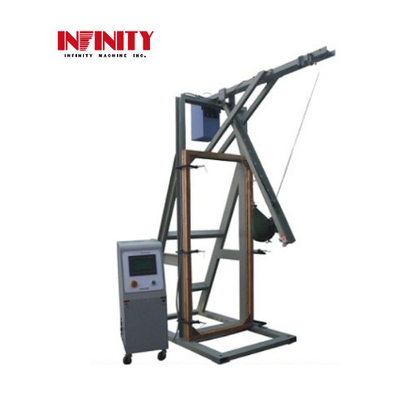

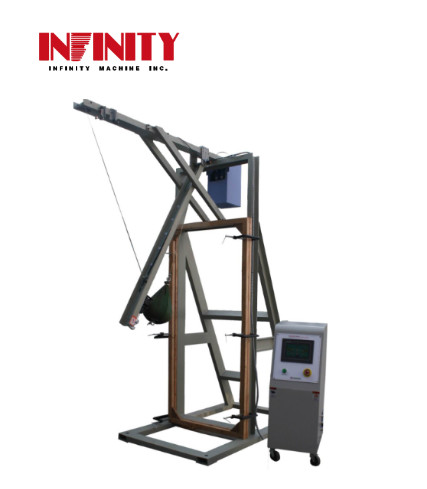

Glass Shot Bag Impact Testing Machine
Model Number:ID6005
Equipment use:
This equipment is designed according to the GB/T962-1999-6.11 standard, meets the impact test requirements of safety laminated glass for construction, and tests the impact resistance of safety laminated glass.
Meet test standards:
ANSI Z97.1,ISO/DIS12542 1~12543-6:1997,AS/NZS2208:1996,GB/T9962-1999
Specification Parameter:
| Project | Specification |
| Impact method | Shot bag pendulum impact |
| Swing arm radius | 1530mm |
| Impact height | 300~1200mm |
| Impact shot bag weight | 45kg±0.1kg |
| Shot diameter | ∮2.5mm |
| Sample size | H1930xW864mm |
| Wooden interior dimensions | H1911xW845mm |
| Specimen fixed frame |
The part in contact with the sample is rubber with a shore hardness of 50 degrees. |
| Size(WxDxH) | 1800x3049x2775mm |
| Weight | Around 700kg |
| Power supply | 1∮ AC220V 50HZ 3A or specify |
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Related product recommendation:
1.IZOD Digital Impact Testing Machine:Used to measure the impact resistance of various tough material specimens under specific angles and loads.
2.Packaging Incline Impact Testing Machine: suitable for packaging boxes of products, simulating the slope impact testing caused by packaging tilting and sliding during transportation or dock handling to test the reliability of packaging.
3.Three Axis Automatic Drop Ball Impact Testing Machine: This machine adopts PLC control mode. The suction nozzle uses vacuum negative pressure to clamp steel balls of different sizes. Press the drop button, and the suction nozzle will release the steel balls instantly. The steel balls will undergo free fall testing to impact the surface of the sample and test its impact resistance. It is suitable for impact testing of electronic products such as mobile phones, tablets, and speakers.
