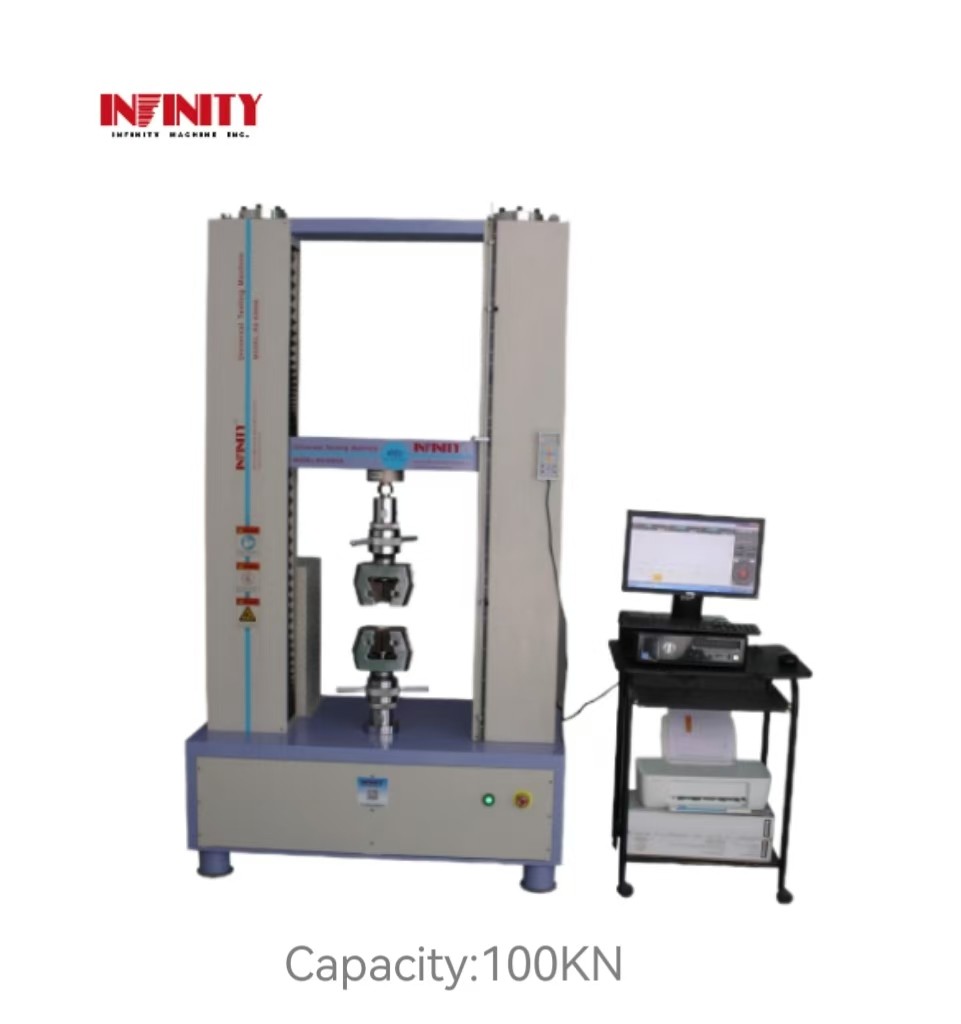

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test

  • 100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test
  • 100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test
100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IF2A1-100KN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Servo Controlled Universal Tensile Testing Machine Model: IF2A1-100KN
Capacity: 100KN Unit (switchable): N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
Power Supply: 380V AC, 50 HZ, 3 PHASE Warranty: 1 Year
Highlight:

Bending Test Universal Tensile Testing Machine

,

100KN Universal Tensile Testing Machine

,

Pushing Universal Tensile Testing Machine

                                             Servo Controlled Universal Tensile Testing Machine

                                                                                          Model:IF2A1-100KN





Purpose:

This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.

Computer control style RS-8000A ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).



Applications:

Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.

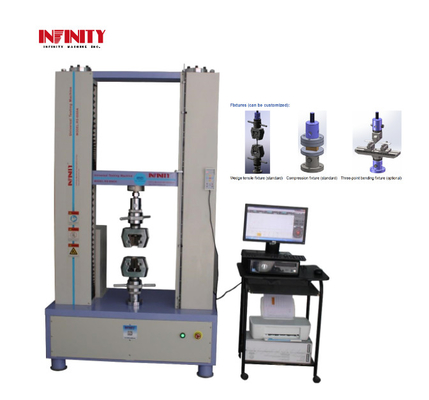

Fixtures (can be customized):

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 0



Specification:



Model IF2A1-100KN
Capacity 100KN
Unit (switchable) N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
Load resolution 1/500,000
Load accuracy ±0.25%
Load range Rangless
Stroke (exclude the grips) 650mm, 800mm (optional)
Effective width 400mm , 600mm (optional)
Test speed 0.001~300mm/min
Speed accuracy ±0.5%
Displacement resolution 0.001mm
Software Closed-loop control software
Motor AC servo Motor
Transmission rod High accuracy ball screw
Main unit dimension (WxDxH) 1220x720x2200mm
Main unit weight 1500 Kg
Power Supply 380V AC, 50 HZ, 3 PHASE




Features:

High accuracy:

Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 1



High performance:

Automatic broken identification, automatically return, point collected by hand, units switching and 9 kinds of languages can be selected: Chinese, English, Japanese, Germany, French, Russian, Spanish and Portuguese.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 2

Superior software program:

Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.



Multi-function:

Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 3



       Configuration:



100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 4



Software control:

High analysis & precision, easy operating, apply for testing of tensile, compression, pushing, bending, cutting, shearing, tearing on all material

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 5



1. Tensile Test graph.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 6

2. Compression test graph.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 7

3. Peeling test graph.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 8

4.Shearing test graph.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 9

5. Holding force test graph (fatigue test)

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 10





Testing Report:

Testing report can be output as PDF file or printed.There are Chinese version and English version.

100KN Servo Controlled Universal Tensile Testing Machine for Pushing and Bending Test 11
