| Product Name: | Servo Control Universal Pull Pressure Test Machine | Model: | IF2001A |
|---|---|---|---|
| Force Value Capacity:: | 100N、200N、500N、1KN、2KN、5KN(optional) | Force Value Unit: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Working Power Supply:: | AC220V 50 / 60Hz Or The Designated Or Specified By User | Warranty: | 1 Year |
| Highlight: | 100N Universal Pull Pressure Test Machine,5KN Universal Pull Pressure Test Machine,Multifunctional Universal Pull Pressure Test Machine |
||

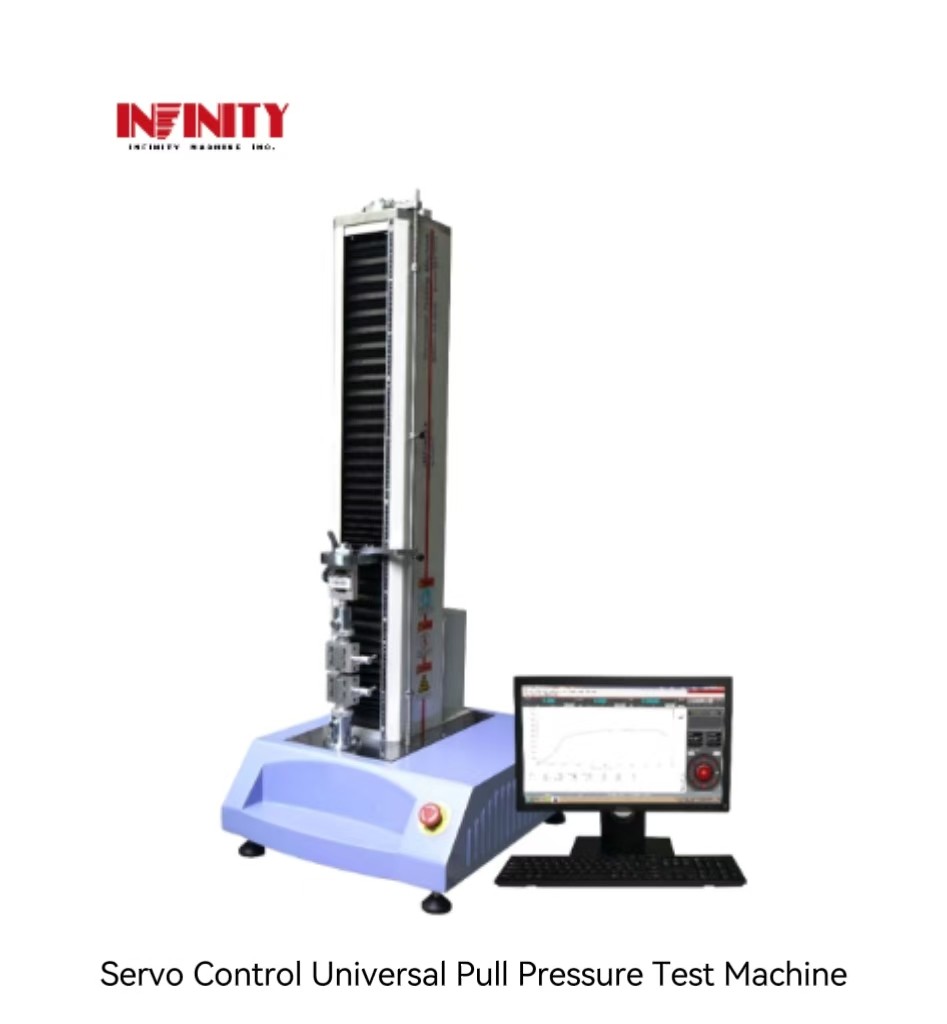

Servo Control Universal Pull Pressure Test Machine
Model:IF2001A
Application:
Suitable for metal wire, metal foil, metal sheet and metal tape, rubber, plastic, sea/foam, waterproof material, wire and cable, textile, net rope, non-woven fabric and other materials tensile, compression, bending, stripping, shearing, tearing, bursting, puncture, fatigue and other tests.
Standards:
This test machine is manufactured according to the "Electronic universal test machine" GB / T 16491-2008, "General Technical Requirements of Test Machine" GB2611-2007, "Detection of force measurement system of tensile test machine", "Technical conditions of extension meter" JB6146-2007, "General Code for licensing assessment of Manufacturing Measuring Instruments" JJF1246-2010 standard.

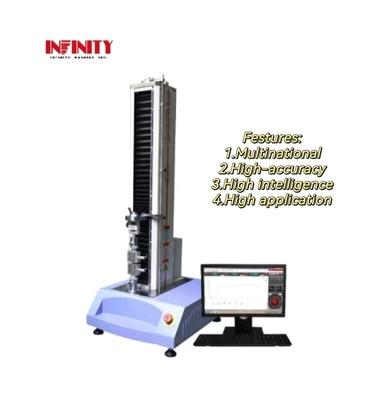

Features:
1.Multifunctional:
With different fixtures, stretching, compression, bending, shear, tear, stripping and other tests.
2.High-accuracy:
Japanese Panasonic AC servo motor drive, high precision gap-free ball screw drive, with high precision TRANSCELL explosion-proof LOADCELL, force value accuracy up to ± 0.5%; displacement accuracy up to 0.01mm.
3.High intelligence:
The functions of automatic discrimination break, automatic return, and curve combination, such as load-to-time displacement, displacement- time stress-strain, strain-time, stress-time and other curve analysis.
4.High application:
9 languages can be switched: Simple / Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, global general use.
Specification:
| Model | IF2001A |
|
Force value capacity |
100N,200N,500N,1KN,2KN,5KN(optional) |
| Force value unit: (switchable) | N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force value decomposition degree | 1/500,000 |
| Force value accuracy | ±0.5% |
|
Test trip |
650mm |
| Test space effective width | 130mm |
| Test speed | 0.01~500mm/min |
| Speed accuracy | ±0.5% |
| Displacement resolution | 0.01mm |
| Motor |
AC servo motor |
| Drive link | High-precision ball-rolling screw |
| Equipment Size: (WxDxH) | 500X600X1200mm |
| Weight of equipment | 140 Kg |
| Working power supply |
AC220V 50 / 60Hz or the designated or specified by user |
Test fixture: (optional)
Testing software:
Professional test report:
The report developed based on Crystal Reports10.0 can automatically calculate the strength, elastic modulus E, RP0.2, ReL, ReH, elongation, etc. The title and content of the report can be freely changed, and the curve is automatically generated. It can be exported in Excel, PDF and other formats.
