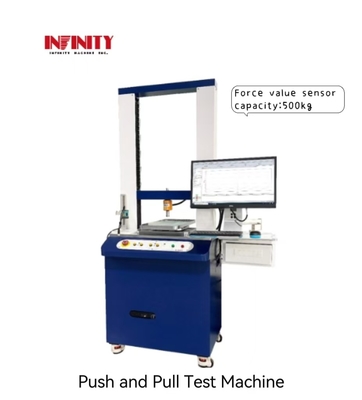

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching

  • High Precision Push And Pull Test Machine For Destructive Pressing And Stretching
  • High Precision Push And Pull Test Machine For Destructive Pressing And Stretching
High Precision Push And Pull Test Machine For Destructive Pressing And Stretching
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IF3231
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Push And Pull Test Machine Model: IF3231
Host Size (WxDxH): 1167x700x 1770mm Machine Weight: 185kg
Source: AC220V 5A 50Hz Or Is Specified
Highlight:

high precision push pull test machine

,

destructive pressing stretching pull test machine

,

pull test machine destructive pressing stretching

                                                              Push and Pull Test Machine

                                                                                  Model:IF3231

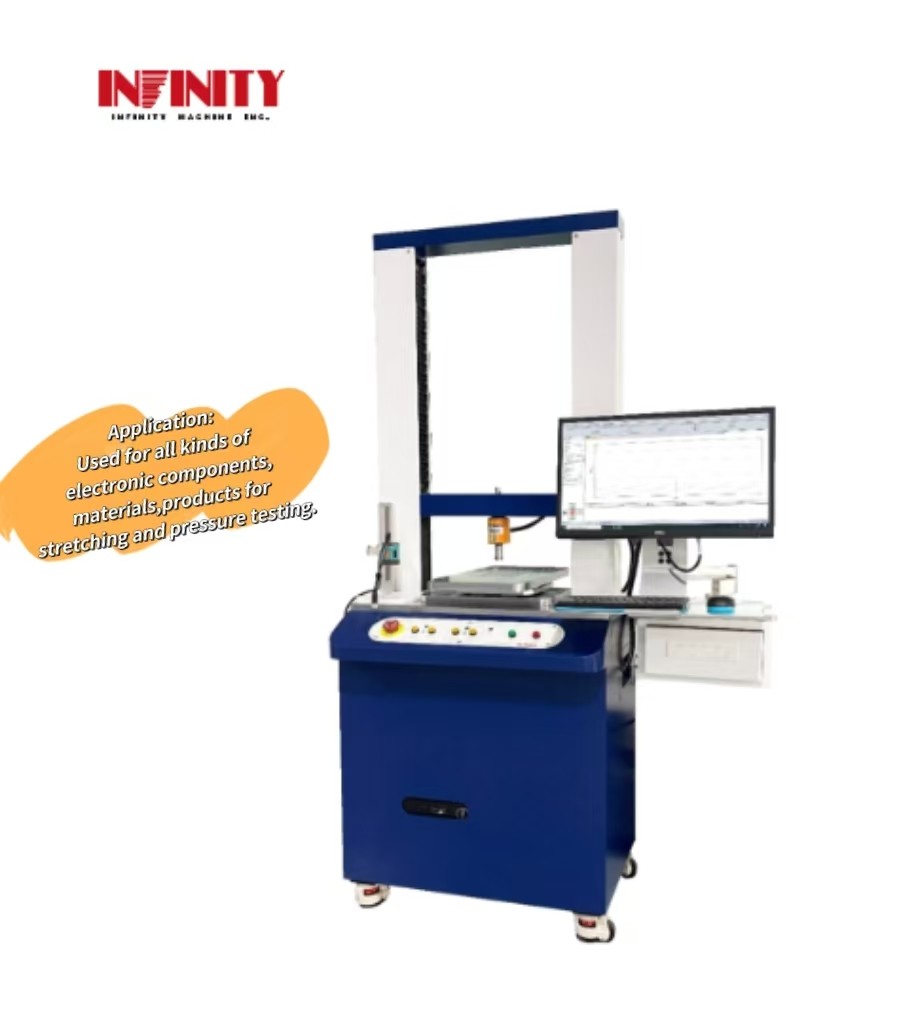

Application:

The equipment is used for all kinds of electronic components, materials, products for stretching, pressure testing, so as to determine its structural resistance strength. The destructive pressing or stretching can be implemented, automatically judged and the test can be concluded after rupture, obtaining the maximum force value and displacement of the product. Constant force test can be carried out to obtain the life of the product under a certain force.



Features:

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 0 1.The code scanner is configured to scan the QR code of the product, which is more convenient to manage the test data of the corresponding product.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 1 2.Real-time display of the current force value and displacement changes, can be displayed: force-stroke (kgf-mm), or force-time (kgf-time) curve diagram.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 2 3.The test report can be selected, directly printed or saved as Word, E xcel, PDF and other formats.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 3 4.The motion shaft is driven by Japanese Panasonic servo motor, precision ball screw drive, low noise, durable use.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 4 5.Language has simplified / traditional / English three operation interface can be switched, the force value unit has N, Lb, gf, kgf can be switched, suitable for global customers.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 5 6.Configure the manual X and Y platforms to change the test position arbitrarily.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 6 7.Open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 7 8.The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 8 9.The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query.

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 910.According to the customer agreement, it has data upload functions such as Trace and PDCA.



Specification:

Force value sensor capacity

500Kg

Force value accuracy

±0.3%

Displacement measurement accuracy

±0.05mm

Displacement decomposition degree

0.001mm

Test trip

0~600mm

Effective width

420mm

Test speed

0~1000mm/min

Speed accuracy

±0.5%

Scan the code reading accuracy

≥4mil



Rupture test plot: Force-Time (kgf-time)

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 10



Dimensional drawing:(mm)

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 11



Installation hole position diagram of X and Y counter tops and sample fixture: (mm)

High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 12



Test report:

                                  High Precision Push And Pull Test Machine For Destructive Pressing And Stretching 13

                                                    Curve report (select data curves to print)

1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.

2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).

3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.

4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
