Steel Ball Specifications Impact Testing Machine Better Than Mechanical Claw Drop Method

Product Description:

Powered by AC220V 2A 50Hz power supply, this machine is capable of delivering exceptional performance and accurate results. The steel ball specifications of 20g, 500g, or as specified ensures that you get the precise testing results every time.

The X-axis speed range of 1~100mm/s allows for precise control over the testing process and ensures that the impact is delivered with the desired force. The machine's X-axis itinerary of 420mm and equipment size of 1140×1200×2700mm makes it possible to test a wide range of products with varying sizes and shapes.

With its advanced features and robust construction, this Three-axis Automatic Drop Ball Machine is the perfect choice for industries that demand high-quality testing equipment. So, if you are looking for a reliable and efficient drop ball impact tester, look no further than our Three-axis Automatic Drop Ball Machine.

Features:

• Product Name: Impact Testing Machine
• Y-axis itinerary: 300mm
• X-axis itinerary: 420mm
• Steel ball specifications: 20g, 500g, or as specified
• Application: The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products.
• Test height: 50-1200mm

Keywords: Drop Ball-impact Tester, Three-axis Automatic Drop Ball Machine, Three-axis Automatic Drop Ball Machine

Device control interface:

Technical Parameters:

Action flow chart:

Applications:

The Infinity Machine ID6150 Drop Ball-impact Tester is a state-of-the-art testing machine that is designed to evaluate the resistance of materials to impact. This Three-axis Automatic Drop Ball Machine is made in China and is certified for CE and ISO standards. The minimum order quantity is 1 and the price is negotiable. The packaging details include clear sheet+sponge+wood carton, while the delivery time is 20-30 days after order confirmation. Payment terms include TT, PayPal, Moneygram, and other options. This product has a supply ability of 200 sets per month.

The Infinity Machine ID6150 is designed to be a versatile machine that can be used in a wide range of applications. Here are some product application occasions and scenarios:

• Materials Testing: The Infinity Machine ID6150 can be used to test the impact resistance of a wide range of materials, including plastic, glass, ceramics, and metals. This makes it an ideal tool for materials testing laboratories, research institutions, and manufacturing companies.
• Safety Testing: The Three-axis Automatic Drop Ball Machine can be used to evaluate the safety of various products, such as helmets, safety glasses, and other protective gear. This is important for ensuring that these products meet industry standards for impact resistance and safety.
• Product Development: The Infinity Machine ID6150 can be used in product development to evaluate the impact resistance of new materials and products. This allows manufacturers to test and refine their products before they are released to the market.
• Quality Control: The Three-axis Automatic Drop Ball Machine is an important tool for quality control in manufacturing environments. By testing the impact resistance of materials and products, manufacturers can ensure that their products meet industry standards and are of high quality.

The Infinity Machine ID6150 has a range of specifications that make it an ideal tool for impact testing. The equipment size is 1140×1200×2700mm and the weight of the equipment is about 530 Kg. The X-axis itinerary is 420mm and the working power supply is AC220V 2A 50Hz. The test height is 50-1200mm. These specifications make it easy to use and highly accurate.

Customization:

Infinity Machine ID6150 Three-axis Automatic Drop Ball Machine

• Brand Name: Infinity Machine
• Model Number: ID6150
• Place of Origin: Made In China
• Certification: CE ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT PAYPAL Moneygram and so on
• Supply Ability: 200 sets / month

Equipment size: 1140×1200×2700mm

Acrylic ball specification: 160g Or As Specified

X-axis itinerary: 420mm

Features:

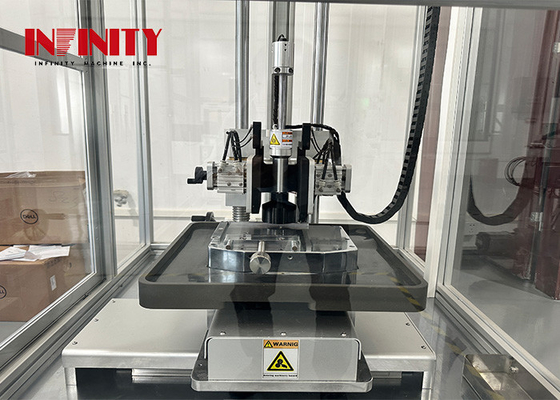

• The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method.

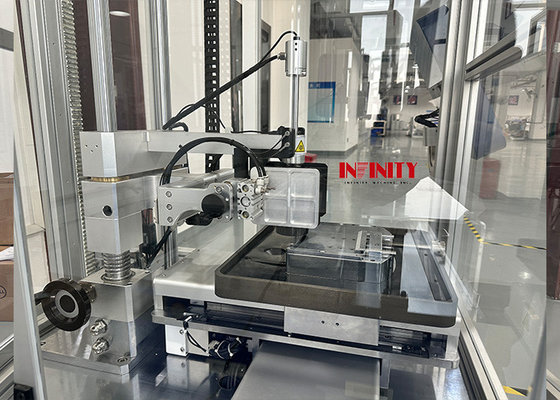

• With the Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency.
• X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use.
• Language Has Simplified / English Interface, Suitable For Global Customers.
• Software Operation Interface Is Simple And Easy To Operate.
• The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test.
• Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test.
• According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample.
• When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed.
• The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading.
• The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety.
• The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position.
• The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position.

Application:

The Infinity Machine ID6150 Three-axis Automatic Drop Ball Machine adopts PLC control mode, the suction nozzle uses vacuum negative pressure, holding different sizes of steel balls, press the drop button, the suction nozzle, the steel ball will be used as free fall test, impact the surface of the sample, and test the impact resistance of the sample, which is suitable for the impact test of mobile phone, tablet, audio and other electronic products.

Keywords: Three-axis Automatic Drop Ball Machine, Drop Ball-impact Tester

Support and Services:

The Impact Testing Machine product is designed to provide accurate and reliable testing results for the impact resistance of various materials. Our technical support team is available to assist with any questions or concerns regarding the operation and maintenance of the machine.

We also offer a range of services to ensure optimal performance of the Impact Testing Machine, including calibration and repair services. Our technicians are trained to provide efficient and effective solutions to any issues that may arise.

Packing and Shipping:

Product Packaging:

• The Impact Testing Machine will be packaged in a sturdy cardboard box to protect it from damage during transit.
• The machine will be wrapped in bubble wrap to provide extra cushioning.
• All components will be securely placed in the box and any empty spaces will be filled with packing materials to prevent movement.
• The box will be labeled with the product name, model number, and handling instructions.

Shipping:

• The Impact Testing Machine will be shipped via a reputable carrier such as DHL, FedEx, or UPS.
• The shipping cost will depend on the destination and shipping method chosen.
• Tracking information will be provided so the customer can track their package's progress.

FAQ:

Q: What is the brand name of the Impact Testing Machine?

A: The brand name of the Impact Testing Machine is Infinity Machine.

Q: What is the model number of the Impact Testing Machine?

A: The model number of the Impact Testing Machine is ID6150.

Q: Where is the Impact Testing Machine made?

A: The Impact Testing Machine is made in China.

Q: What certifications does the Impact Testing Machine have?

A: The Impact Testing Machine is certified with CE and ISO.

Q: What is the minimum order quantity for the Impact Testing Machine?

A: The minimum order quantity for the Impact Testing Machine is 1.

Q: What is the price of the Impact Testing Machine?

A: The price of the Impact Testing Machine is negotiable.

Q: What are the packaging details for the Impact Testing Machine?

A: The packaging details for the Impact Testing Machine include clear sheet, sponge, and a wood carton.

Q: What is the delivery time for the Impact Testing Machine?

A: The delivery time for the Impact Testing Machine is 20-30 days after order confirmed.

Q: What are the payment terms for the Impact Testing Machine?

A: The payment terms for the Impact Testing Machine include TT, PayPal, Moneygram, and so on.

Q: What is the supply ability for the Impact Testing Machine?

A: The supply ability for the Impact Testing Machine is 200 sets per month.
