| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2001A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Test Speed:: | 0.01~500mm/min | Test Trip:: | 650mm |
|---|---|---|---|
| Working Power Supply:: | AC220V 50 / 60Hz Or The Designated Or Specified By User | Force Value Accuracy: | ±0.5% |
| Equipment Size: (WxDxH): | 500X 600X 1200mm | Force Value Unit: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In ², Kgf/mm |
| Standards:: | This Test Machine Is Manufactured According To The "Electronic Universal Test Machine" GB / T 16491-2008, "General Technical Requirements Of Test Machine" GB2611-2007, "Detection Of Force Measurement System Of Tensile Test Machine", "Technical Conditions O | Professional Test Report:: | Based On The Report Developed In Crystal Reports10.0, It Can Automatically Calculate The Strength And Elastic Modulus E And RP0.2、ReL 、ReH 、 Extension Rate, Etc., The Report Title And Content Can Be Freely Changed, The Curve Is Automatically Generated. Can |
| Highlight: | 100N Internal Bond Testing,Servo Control Internal Bond Testing Machine |
||

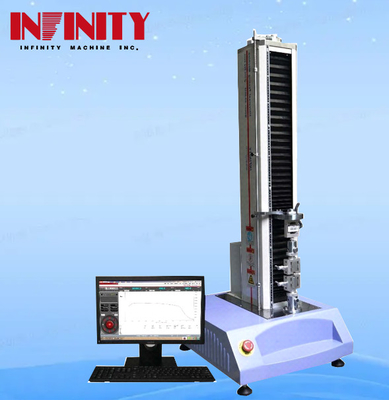

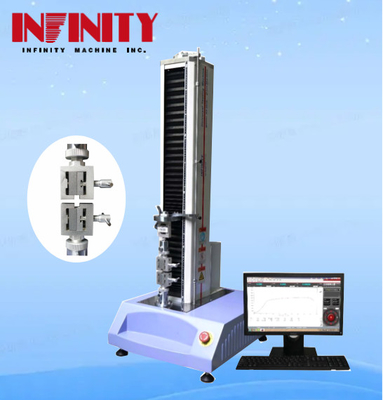

100N Force Value Capacity Servo Control/Non-woven Fabric Internal Bond Testing with ±0.5% Speed Accuracy
This test machine meets several standards, including the "Electronic Universal Test Machine" GB/T 16491-2008, "General Technical Requirements of Test Machine" GB2611-2007, "Detection of Force Measurement System of Tensile Test Machine," "Technical Conditions of Extension Meter" JB6146-2007, and "General Code for Licensing Assessment of Manufacturing Measuring Instruments" JJF1246-2010 Standard.
The Universal Pull Pressure Test Machine offers several features that make it stand out from other testing machines. With different fixtures, it can perform stretching, compression, bending, shear, tear, stripping, and other tests. The machine uses a Japanese Panasonic AC Servo Motor Drive and a high-precision gap-free ball screw drive, with high-precision TRANSCELL explosion-proof LOADCELL, ensuring force value accuracy up to ± 0.5% and displacement accuracy up to 0.01mm.
The machine also offers high intelligence with automatic discrimination break, automatic return, and curve combination functions, such as load-to-time displacement, displacement-time stress-strain, strain-time, stress-time, and other curve analysis. With the ability to switch between 9 different languages, including Simple/Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, this machine is ideal for global general use.
Finally, the Universal Pull Pressure Test Machine comes with a professional test report based on the report developed in Crystal Reports10.0, which can automatically calculate the strength and elastic modulus E and RP0.2, ReL, ReH, extension rate, etc. The report title and content can be freely changed, and the curve is automatically generated. The test report can be remitted as Excel, PDF, and other formats.
The Universal Testing Machine, also known as the Universal Pull Pressure Test Machine, is a high-precision testing instrument equipped with a non-woven fabric internal bond testing machine.
Technical Parameters:
| Test speed | 0.01~500mm/min |
| Force value unit | (switchable): N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In ², Kgf/mm |
| Force value capacity | 100N |
| Drive link | High-precision Ball-rolling Screw |
| Force value accuracy | ±0.5% |
| Any power-generating or power-driven machine | AC Servo Motor |
| Use of equipment | It Is Suitable For Drawing, Compression, Bending, Peeling Off, Cutting, Tearing, Rubber, Plastic, Rubber And Foam, Wire, Waterproof Material, Textile Material, Wire, Wire Rope, And Other Materials. |
| Working power supply | AC220V 50 / 60Hz Or The Designated Or Specified By User |
| Professional test report | Based On The Report Developed In Crystal Reports10.0, It Can Automatically Calculate The Strength And Elastic Modulus E And RP0.2,ReL ,ReH , Extension Rate, Etc., The Report Title And Content Can Be Freely Changed, The Curve Is Automatically Generated. Can Be Remitted As Excel, PDF And Other Formats. |
| Standards | This Test Machine Is Manufactured According To The "Electronic Universal Test Machine" GB / T 16491-2008, "General Technical Requirements Of Test Machine" GB2611-2007, "Detection Of Force Measurement System Of Tensile Test Machine", "Technical Conditions Of Extension Meter" JB6146-2007, "General Code For Licensing Assessment Of Manufacturing Measuring Instruments" JJF1246-2010 Standard. |
This is the technical parameter table for the Universal Testing Machine product, also known as Non-woven Fabric Internal Bond Testing Machine. It has a test speed of 0.01~500mm/min and a force value capacity of 100N. The force value unit is switchable and it uses a high-precision ball-rolling screw as its drive link. It has a force value accuracy of ±0.5% and is powered by an AC servo motor. It can be used for various materials and comes with a professional test report that can be remitted in different formats. It is manufactured according to several standards.
Applications:

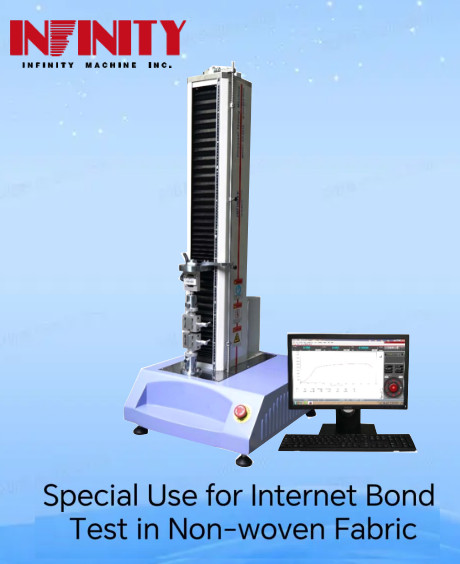

One common application for this universal test machine is in the testing of materials, such as metals, plastics, and composites. The machine's high precision and accuracy make it ideal for measuring the tensile, compressive, and bending properties of these materials. In addition, the machine can be used in the Non-woven Fabric Internal Bond Testing Machine, which measures the strength of non-woven fabrics used in a variety of products, from clothing to medical supplies.
Another scenario where this Universal Pull Pressure Test Machine can be used is in the testing of products, such as automotive parts, electronics, and consumer goods. By subjecting these products to various forces and stresses, the machine can help manufacturers identify weaknesses and areas for improvement. This can ultimately lead to better quality products that are more reliable and durable.
With a supply ability of 200 sets per month, the Infinity Machine Universal Testing Machine is a popular choice for many industries. The machine is packaged with care, using a clear sheet, sponge, and wood carton for protection during shipping. Delivery time is typically 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and other options.
This test machine is manufactured according to the "Electronic Universal Test Machine" GB / T 16491-2008, "General Technical Requirements of Test Machine" GB2611-2007, "Detection of Force Measurement System of Tensile Test Machine", "Technical Conditions of Extension Meter" JB6146-2007, "General Code for Licensing Assessment of Manufacturing Measuring Instruments" JJF1246-2010 standard. It can be powered by AC220V 50 / 60Hz or the designated or specified by user. The machine's speed accuracy is ±0.5%, ensuring reliable and consistent results every time.
With a minimum order quantity of 1 and negotiable price, the Infinity Machine Universal Testing Machine is a sound investment for any company looking to improve their product quality and reliability.
Customization:

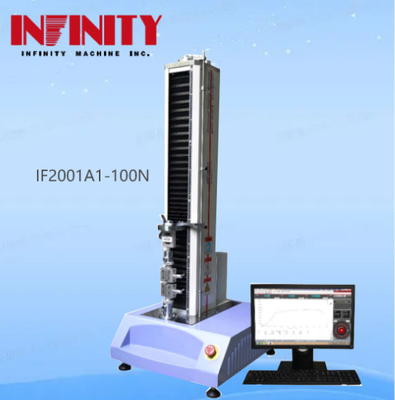

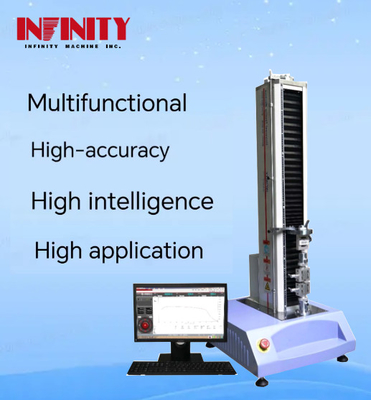

Infinity Machine Universal Testing Machine IF2001A1 is a high-accuracy and multifunctional testing equipment that can perform stretching, compression, bending, shear, tear, stripping and other tests. It is equipped with a Japanese Panasonic AC servo motor drive and high precision gap-free ball screw drive, with high precision TRANSCELL explosion-proof load cell. It has a force value accuracy up to ± 0.5% and displacement accuracy up to 0.01mm. The machine features high intelligence with functions such as automatic discrimination break, automatic return and curve combination, and curve analysis. It also has high application with 9 languages that can be switched including simple / traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, global general use.
Equipment size is (WxDxH) 500X 600X 1200mm, with a test trip of 650mm. It comes with a professional test report based on the report developed in Crystal Reports10.0, which can automatically calculate the strength and elastic modulus E and RP0.2,ReL ,ReH ,extension rate, etc. The report title and content can be freely changed, and the curve is automatically generated. The machine is powered by an AC servo motor and is made in China with CE and ISO certification. The packaging details include a clear sheet+sponge+wood carton, and the delivery time is 20-30 days after order confirmed. The payment terms include TT, PayPal, Moneygram and so on, with the minimum order quantity of 1 and negotiable price. The supply ability is 200 sets/month.
The Universal Testing Machine product offers the following technical support and services:
Product Packaging:
The Universal Testing Machine is carefully packaged to ensure safe delivery and to protect it from damage during transit. The packaging includes a sturdy cardboard box, foam padding, and plastic wrap. The machine is disassembled for shipping and comes with detailed instructions for easy assembly.
Shipping:
We offer worldwide shipping for the Universal Testing Machine. Shipping costs and delivery times may vary depending on the destination. We use reputable shipping services to ensure timely delivery and provide tracking information for your convenience. Please contact us for more information about shipping options and rates.
Q: What is the brand name of the Universal Testing Machine?
A: The brand name is Infinity Machine.
Q: What is the model number of the Universal Testing Machine?
A: The model number is IF2001A1.
Q: Where is the Universal Testing Machine made?
A: It is made in China.
Q: What certifications does the Universal Testing Machine have?
A: It has CE and ISO certifications.
Q: What is the minimum order quantity for the Universal Testing Machine?
A: The minimum order quantity is 1.
Q: What is the price of the Universal Testing Machine?
A: The price is negotiable. Please contact us for more information.
Q: What are the packaging details for the Universal Testing Machine?
A: The packaging details include a clear sheet, sponge, and a wood carton.
Q: How long does it take for the Universal Testing Machine to be delivered?
A: It takes 20-30 days after the order is confirmed for delivery.
Q: What payment terms are accepted for the Universal Testing Machine?
A: We accept TT, PayPal, Moneygram, and other payment methods.
Q: What is the supply ability of the Universal Testing Machine?
A: The supply ability is 200 sets per month.
