Min. Angle Display 0.001mm Control Keystoke Tester High Precision

Min. Angle Display 0.001mm Control Keystoke Tester High Precision Testing Solution

Product Description:

Test speed: 0~200mm/min

Load accuracy: ±0.5%

Power supply: AC220V 5A Or Specified By User

Min. angle display: 0.001mm

Application:

• Rubber Key Force Test
• Spring & Key Force Test
• Keyboard & Mobile Keystoke Force Test
• Switch Force Test

The Servo Control Keystoke / Switch Button Force Test Machine is a high-quality and efficient product that is designed to accurately test the keystroke and switch force of various keyboards. It is equipped with advanced technology and precise instruments to provide reliable and accurate results.

The test speed of the Servo Control Keystoke / Switch Button Force Test Machine ranges from 0 to 200mm per minute, allowing for a wide range of testing options. With a load accuracy of ±0.5%, this product ensures precise and consistent results every time.

The power supply for the Keyboard Button Tester is AC220V 5A, however, it can also be specified by the user to meet their specific requirements. This makes it a versatile product that can be used in various settings.

The Keyboard Button Tester also features a min. angle display of 0.001mm, providing precise and detailed measurements. This makes it suitable for testing even the smallest keys and switches.

• Servo Control Keystoke / Switch Tester: This product is equipped with servo control technology, allowing for precise and consistent testing of keystrokes and switches.
• Spring & Key Force Tester: The Keyboard Button Tester is designed to accurately measure the force required to press keys and switches, making it suitable for testing springs and key forces.
• Switch Force Test: With its advanced technology and precise instruments, the Keyboard Button Tester is capable of accurately testing the force required to operate different types of switches.

Overall, the Keyboard Button Tester is a reliable and versatile product that is essential for any keyboard manufacturing or testing facility. It is easy to use, provides accurate results, and is suitable for a wide range of applications.

Features:

• Product Name: Servo Control Keystoke / Switch Button Force Test Machine
• Min. load display: 0.01gf
• Main unit weight: 25kg
• Application: Rubber Key Force Test, Spring & Key Force Test, Keyboard & Mobile Keystoke Force Test, Switch Force Test
• Test stroke: 100mm
• Speed accuracy: ±0.5%
• Keystoke button rebounding force test machine
• Rubber key force tester
• Spring and key force tester
• Keyboard and mobile keystroke force tester
• Switch force tester

Technical Parameters:

Applications:

The Servo Control Keystoke / Switch Button Force Test Machine, model IF6001A, is a state-of-the-art testing machine designed and developed by Infinity Machine in China. It is specifically designed for keyboard production lines to accurately measure the pressing force and fatigue of buttons. It is a fully automated testing machine that can provide precise and reliable results for keyboard manufacturers.

The Servo Control Keystoke / Switch Button Force Test Machine is an essential tool for keyboard manufacturers to ensure the quality and durability of their products. It can be used in various industries such as computer hardware, electronics, and telecommunications. It is also suitable for research and development institutions, quality control departments, and testing laboratories.

• Brand Name: Infinity Machine
• Model Number: IF6001A
• Place of Origin: Made In China
• Certification: CE, ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT, PAYPAL, Moneygram and more
• Supply Ability: 300 sets / month

• Model number: IF6001A
• Button Force Testing:
  1. Automatically Inductive Test Method: No Matter What Height Of The Key Is, It Can Be Controlled By Computer Automatically Through The Test Of The Button Test Method.
  2. Can Measure The Force Of The Buttons And Also Do The Fatigue Test, It Will Generate The Test Graph And Also Can Generate The Life Damping Graph.

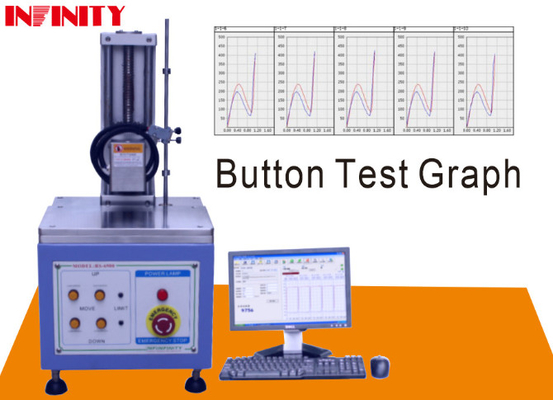

  3. The Test Graph For The Button Test
• Main unit dimension (WxDxH): 300x270x500mm
• Product name: Servo Control Keystoke / Switch Tester
• Power supply: AC220V 5A Or Specified By User

• Keyboard production line
• Automatic testing
• Button life damping graph

With its advanced technology and precise testing capabilities, the Servo Control Keystoke / Switch Button Force Test Machine from Infinity Machine is the perfect solution for keyboard manufacturers who want to ensure the quality and durability of their products. Contact us now to learn more and to get a quote for your specific needs.

Customization:

• The software can create the force value testing report and the testing curves.
• The values of peak force, return force, distance, TT, click rate and dynamic impedance data can directly display on the testing window.
• FC, FC_D, FP, FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing.
• Past or failure can be judged by software according to the set judging conditions.
• Chinese/English display interface can be shifted by user.
• N, Lb, Gf, Kg units can be shifted freely.
• Testing methods can be set and reserved by user.
• Can create the life-time damping curve and the testing report which can be converted to Excel and PDF file, or can be printed out directly from the original file.

• Keystoke button rebounding force test machine
• Spring & key force tester
• Keyboard & mobilephone keystoke force test

Packing and Shipping:

The Servo Control Keystoke / Switch Button Force Test Machiner will be carefully packaged to ensure safe delivery to our customers. Each tester will be wrapped in bubble wrap and placed in a sturdy cardboard box with a layer of foam padding for extra protection. The box will also be sealed with tape to prevent any damage during shipping.

We offer worldwide shipping for the Servo Control Keystoke / Switch Button Force Test Machine. The shipping cost will be calculated based on the destination and weight of the package. Customers can choose from various shipping options such as standard shipping, express shipping, and priority shipping.

For domestic orders, the estimated delivery time is 3-5 business days. For international orders, the estimated delivery time may vary depending on the destination country and customs procedures.

Once the package is shipped, customers will receive a tracking number to track their order. We strive to ensure timely and efficient delivery of our products to our customers.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name is Infinity Machine.
• Q: What is the model number of this product?
  A: The model number is IF6001A.
• Q: Where is this product made?
  A: This product is made in China.
• Q: Is this product certified?
  A: Yes, this product is CE and ISO certified.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity is 1 set.

• Q: Can the price be negotiated?
  A: Yes, the price is negotiable.
• Q: How is this product packaged?
  A: This product is packaged with a clear sheet, sponge, and wood carton.
• Q: How long will it take to receive the product after placing an order?
  A: The delivery time is usually 20-30 days after the order is confirmed.
• Q: What are the payment terms for this product?
  A: The payment terms include TT, PayPal, Moneygram, and other options.
• Q: What is the supply ability of this product?
  A: The supply ability is 300 sets per month.
