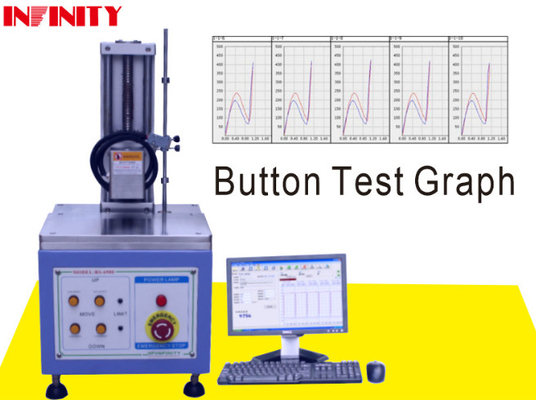

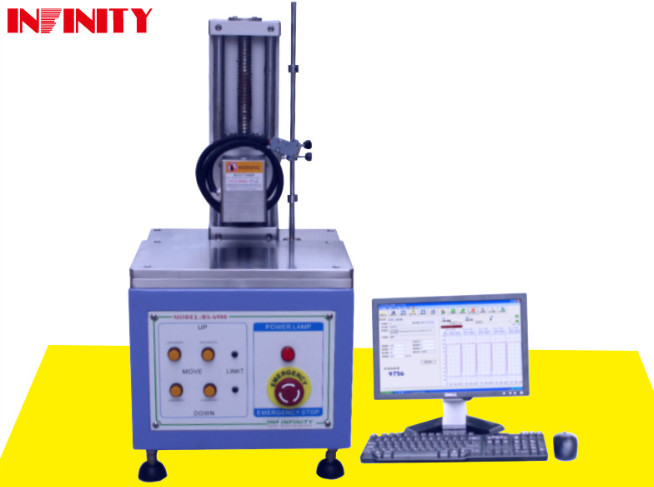

AC Servo Motor Switch Key Tester For Rubber Keystoke / Switch Button Force Testing

Servo  Control  Keystoke / Switch Button  Force  Test  Machine IF6001A

Product Description:

Capacity (optional): 500gf, 2kgf, 5kgf

Test speed: 0~200mm/min

The Servo Control Keystoke / Switch Tester is a high-quality and efficient tool for testing the force values of keyboard buttons. With its advanced features and capabilities, it is the perfect choice for manufacturers, designers, and quality control professionals.

• The software can create the force value testing report and the testing curves.
• The values of peak force, return force, distance, TT, click rate and dynamic impedance data can directly display on the testing window.
• FC, FC_D, FP, FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing and past or failure can be judged by software according to the set judging conditions.
• Chinese / English display interface can be shifted by user.
• N, Lb, Gf, Kg units can be shifted freely.
• Testing methods can be set and reserved by user.
• Can create the life-time damping curve and the testing report which can be converted to be Excel and PDF file, or can be printed out directly from the original file.

The Servo Control Keystoke / Switch Tester offers two methods for button force testing:

1. Automatically Inductive Test Method: No matter what height of the key is, it can be controlled by computer automatically through the test of the button test method.
2. Fatigue Test: Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.

Features:

• Product Name: Keyboard Servo Control Keystoke / Switch Button Force Test Machine
• Feature:
  • Spring & key force tester
  • Keyboard & mobilephone keystoke force test
  • Switch force test
  • Peak force
  • Return force
  • Distance
  • Click rate
  • Dynamic impedance
  • Chinese/English display
  • Unit conversion (N, Lb, Gf, Kg)
  • Testing methods can be set and reserved by user
  • Life-time damping curve
  • Testing report can be converted to Excel/PDF file
  • Print function
  • Min. angle display: 0.001mm
  • Power supply: AC220V 5A or specified by user
  • Model number: IF6001A
  • Unit switchable

Technical Parameters:

Applications:

Brand Name: Infinity Machine

Model Number: IF6001A

Place of Origin: Made In China

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 300 sets / month

This Tester is used for pressing force test and rebounding force test of keyboard buttons, as well as keystoke and buttons of all kinds of electronic products. It adopts high precision load cell and is driven by a servo motor, ensuring accurate force testing data.

Servo Control Keystoke/Switch Tester

• The software can create the force value testing report and testing curves.
• The values of peak force, return force, distance, click rate, and dynamic impedance data can be directly displayed on the testing window.
• FC, FC_D, FP, FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, and FO_D can be indicated after testing.
• Past or failure can be judged by the software according to the set judging conditions.
• Chinese/English display interface can be shifted by the user.
• N, Lb, Gf, Kg units can be shifted freely.
• Testing methods can be set and reserved by the user.
• It can create the life-time damping curve and testing report, which can be converted to Excel and PDF file or printed out directly from the original file.

This Keyboard Servo Control Keystoke / Switch Button Force Test Machine is suitable for use in various industries such as:

• Rubber key force test
• Spring & key force test
• Keyboard & mobile keystoke force test
• Switch force test

It can be used in the production and quality control process of electronic products to ensure the durability and functionality of keyboard buttons and switches.

Customization:

Brand Name: Infinity Machine

Model Number: IF6001A

Place of Origin: Made In China

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 300 sets / month

Main unit dimension (WxDxH): 300x270x500mm

Power supply: AC220V 5A Or Specified By User

Main unit weight: 25kg

Test speed: 0~200mm/min

Test stroke: 100mm

Customized Service:

• Keystroke button rebounding force test machine
• Customized test speed and stroke according to user's needs
• Customized power supply according to user's requirements
• Customized packaging options
• Flexible payment terms for negotiation

Packing and Shipping:

The Keyboard Servo Control Keystoke / Switch Button Force Test Machine is a must-have tool for any keyboard enthusiast. It allows you to easily test the functionality of each individual button on your keyboard, ensuring that you have a smooth and efficient typing experience. Our Packaging and Shipping process ensures that your Keyboard Button Tester arrives safely and in perfect condition.

Our packaging process is designed to protect your Keyboard Servo Control Keystoke / Switch Button Force Test Machine during transit. First, we carefully wrap the tester in bubble wrap to provide cushioning and prevent any damage. Next, we place the wrapped tester in a sturdy cardboard box, ensuring that there is no room for movement. Finally, we seal the box with tape to secure the contents inside.

We offer fast and reliable shipping options to get your Keyboard Servo Control Keystoke / Switch Button Force Test Machine to you as quickly as possible. We work with trusted shipping carriers to ensure that your order is delivered safely and on time. You will also receive a tracking number so you can track your package and know exactly when it will arrive.

We are proud to offer international shipping for our Keyboard Servo Control Keystoke / Switch Button Force Test Machine. We understand that keyboard enthusiasts are located all around the world, and we want to make sure everyone has access to our product. We work with international shipping carriers to ensure that your order arrives safely and in a timely manner. Please note that additional customs fees and taxes may apply for international orders.

Your satisfaction is our top priority. If for any reason you are not happy with your Keyboard Servo Control Keystoke / Switch Button Force Test Machine, please contact us and we will do our best to make it right. We value our customers and want you to have the best experience with our product.

Don't wait any longer to improve your typing experience with the Keyboard Servo Control Keystoke / Switch Button Force Test Machine. Order now and enjoy fast and reliable shipping, as well as our customer satisfaction guarantee. Thank you for choosing our product!

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is Infinity Machine.
• Q: What is the model number of this product?
  A: The model number of this product is IF6001A.
• Q: Where is this product made?
  A: This product is made in China.
• Q: Does this product have any certifications?
  A: Yes, this product is CE and ISO certified.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 set.
