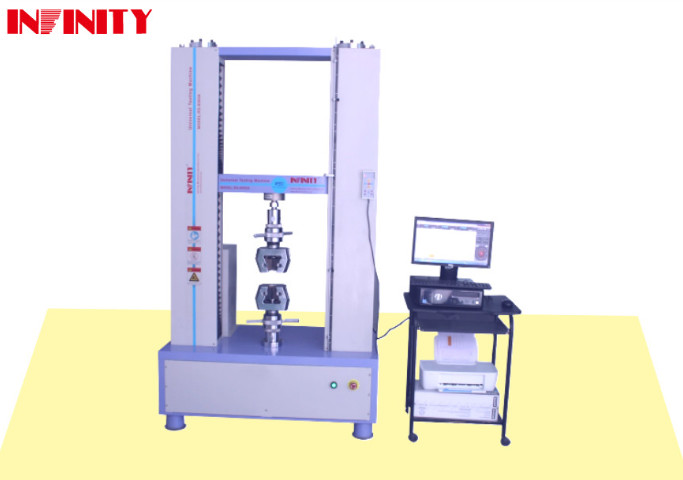

• Product Name: Servo Controlled Universal Tensile Testing Machine
• Features:
  • Superior Software Program:
    • Can achieve closed loop control in force value, speed & displacement
    • Satisfies fatigue test of rubber and durable test of other materials in low cycle conditions
    • Records and memorizes testing data
    • Offers various analysis curves: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve
  • High Performance:
    • Automatic broken identification
    • Automatic return
    • Point collected by hand
    • Units switching
    • 9 languages available: Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese
• Use in various industries:
  • Adhesive tape
  • Motorcar
  • Ceramics
  • Composite materials
  • Architecture
  • Food
  • Medical equipment
  • Metal wire
  • Rubber
  • Plastic
  • Textile
  • Wood
  • Communication
• Unit (switchable):
  • N
  • KN
  • Kgf
  • Lbf
  • Mpa
  • Lbf/In2
  • Kgf/mm2
• Capacity: 100KN
• Other related products:
  • Electric wire & cable tensile testing machine
  • Hardness testing machine
  • ISTA standard test machine

Technical Parameters:

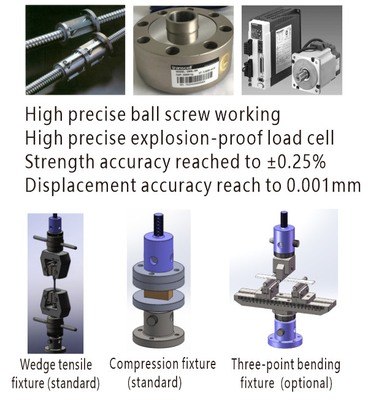

Model IF2A1-100KN Capacity 100KN Unit (switchable) N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 Load resolution 1/500,000 Load accuracy ±0.25% Load range Rangless Stroke (exclude the grips) 650mm, 800mm (optional) Effective width 400mm , 600mm (optional) Test speed 0.001~300mm/min Speed accuracy ±0.5% Displacement resolution 0.001mm Software Closed-loop control software Motor AC servo Motor Transmission rod High accuracy ball screw Main unit dimension (WxDxH) 1220x720x2200mm Main unit weight 1500 Kg Power Supply 380V AC, 50 HZ, 3 PHASE



Applications:



Brand Name: Infinity Machine

Model Number: IF2A1-100KN

Place of Origin: Made In China

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Stroke (exclude the grips): 650mm, 800mm (optional)

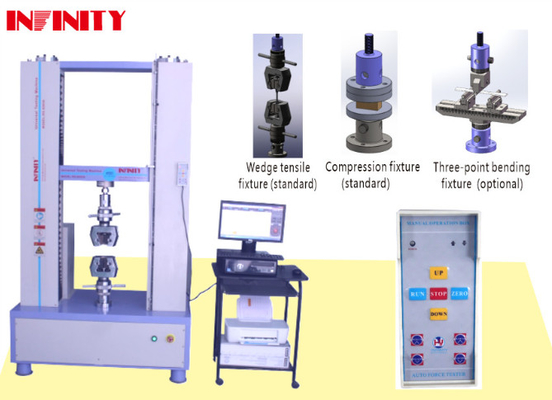

Features 4: Multi-function: Can Coordinate With Different Grips, The Tests Of Tensile, Compression, Bending, Shearing, Tearing, Peeling, Etc Can Be Done.

Testing Report: Testing Report Can Be Output As PDF File Or Printed. There Are Chinese Version And English Version.

Unit (switchable): N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2

Motor: AC Servo Motor





The Servo Controlled Universal Tensile Testing Machine is a highly versatile and essential equipment for material testing in various industries such as automotive, aerospace, construction, electronics, and more. It is designed to perform a wide range of tests such as tensile, compression, bending, shearing, tearing, peeling, and more on different materials including metallic thread, metal foil, adhesive tape, electric wire & cable, and rubber.

With its high accuracy and precision, the Infinity Machine IF2A1-100KN is the perfect solution for quality control, research and development, and product performance evaluation. Its sturdy construction and advanced technology make it suitable for both laboratory and production environments.

Let's take a look at some of the common applications and scenes where the Universal Testing Machine is used:





The Servo Controlled Universal Tensile Testing Machine is widely used in the textile industry for testing the tensile strength and elongation of metallic threads. It can determine the breaking point of the thread and its ability to withstand stress and strain. This is crucial for ensuring the quality and durability of the thread in products such as garments, accessories, and home furnishings.





The Servo Controlled Universal Tensile Testing Machine is also extensively used in the packaging industry for testing the strength and flexibility of metal foils. It can determine the foil's ability to withstand external forces and pressure, ensuring that it can protect the packaged product effectively. This is essential for industries such as food and pharmaceuticals where the packaging needs to be durable and reliable.





The Servo Controlled Universal Tensile Testing Machine is a crucial equipment for the adhesive tape industry, where it is used to test the tensile strength and adhesive bond of the tape. It can determine the maximum force the tape can withstand before breaking and evaluate its adhesion to different surfaces. This helps in ensuring the quality and effectiveness of the tape in various applications.





The Servo Controlled Universal Tensile Testing Machine plays a vital role in the electrical and electronics industry by testing the strength and durability of electric wires and cables. It can determine the maximum load the wire or cable can withstand before breaking and evaluate its insulation and conductivity. This is crucial for ensuring the safety and reliability of the products.





The Servo Controlled Universal Tensile Testing Machine is extensively used in the rubber industry for testing the tensile strength, elongation, and tear resistance of rubber products. It can determine the maximum force the rubber can withstand before breaking and evaluate its elasticity and durability. This is essential for industries such as automotive, footwear, and construction, where rubber is used extensively.



In conclusion, the Servo Controlled Universal Tensile Testing Machine is a highly versatile and essential equipment in various industries for material testing. With its exceptional capabilities and advanced features, the Infinity Machine IF2A1-100KN is the ideal choice for accurate and reliable testing. Its application and scene are vast, making it a valuable investment for any business looking to ensure the quality and performance of their products.





Customization:



• Brand Name: Infinity Machine
• Model Number: IF2A1-100KN
• Place of Origin: Made In China
• Certification: CE ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT, PayPal, Moneygram, and more
• Supply Ability: 200 sets / month
• Stroke (exclude the grips): 650mm, 800mm (optional)
• Application: The Equipment Is Used For Suitable For Stretching, Compressing, Bending, Peeling, Etc. Of Metal Wire, Metal Foil, Metal Sheet And Metal Tape, Rubber, Plastic, Sea/foam, Waterproof Materials, Wires And Cables, Textiles, Mesh Ropes, Non-woven Fabrics And Other Materials. Shearing, Tearing, Bursting, Puncture, Fatigue And Other Tests.
• Load resolution: 1/500,000
• Features: High Performance: Automatic Broken Identification, Automatically Return, Point Collected By Hand, Units Switching And 9 Kinds Of Languages Can Be Selected: Chinese, English, Japanese, Germany, French, Russian, Spanish And Portuguese.
• Capacity: 100kn

At Infinity Machine, we understand that every customer has unique testing needs. That's why we offer customized services for our Universal Testing Machine.

Our team of experts will work with you to create a tailored solution that meets your specific requirements. Whether it's modifying the machine's stroke length, load resolution, or adding additional features, we are dedicated to providing the perfect testing solution for you.

With our ISTA Standard Test Machine, Comprehensive Testing Machine, and ISTA Standard Test Machine, you can trust in our China manufacturing expertise and CE and ISO certifications for top-quality products.

• Flexible Ordering: We have no minimum order quantity, making it easy for you to order the exact number of machines you need.
• Competitive Pricing: Our products are competitively priced to fit your budget without compromising on quality.
• Secure Packaging: We use clear sheets, sponges, and wood cartons to ensure your machine is protected during transportation.
• Timely Delivery: With a fast turnaround time of 20-30 days after order confirmation, you can receive your machine quickly.
• Wide Payment Options: We accept various payment methods, including TT, PayPal, Moneygram, and more, for your convenience.
• Multi-language Support: Our machines come with 9 language options, including Chinese, English, Japanese, German, French, Russian, Spanish, and Portuguese.
• High Load Resolution: Our machines have a load resolution of 1/500,000 for accurate and precise testing results.

Choose Infinity Machine for your Universal Testing Machine needs and experience our top-quality products and customized services. Contact us today to get started.



Packing and Shipping:



Our Servo Controlled Universal Tensile Testing Machine is carefully packaged to ensure safe delivery to our customers. Here is the detailed packaging and shipping process:

1. The Servo Controlled Universal Tensile Testing Machine is first wrapped in a layer of protective plastic to prevent any scratches or damage during transportation.

2. The machine is then placed in a sturdy wooden crate to provide additional protection.

3. The crate is filled with foam padding to ensure that the machine is secure and does not move during transportation.

4. The lid of the crate is then sealed with heavy-duty tape to prevent any tampering or damage.

1. Once the packaging process is complete, the crate is loaded onto a pallet and secured with straps to prevent any movement during transportation.

2. The pallet is then loaded onto a truck or shipped by air or sea, depending on the customer's location and shipping preferences.

3. Our experienced shipping team carefully monitors the shipment to ensure that it reaches its destination safely and on time.

4. Upon arrival, the crate is carefully unloaded and delivered to the customer's specified location.

With this thorough and secure packaging and shipping process, we guarantee that our Universal Testing Machine will arrive at your doorstep in perfect condition.



FAQ:



• Q: What is the brand name of this product?
• A: The brand name of this product is Infinity Machine.


• Q: What is the model number of this product?
• A: The model number of this product is IF2A1-100KN.


• Q: Where is this product made?
• A: This product is made in China.


• Q: Does this product have any certifications?
• A: Yes, this product is CE and ISO certified.


• Q: What is the minimum order quantity for this product?
• A: The minimum order quantity for this product is 1 set.


• Q: Is the price of this product negotiable?
• A: Yes, the price of this product is negotiable.


• Q: How is this product packaged?
• A: This product is packaged with clear sheet, sponge, and wood carton.


• Q: How long does it take for this product to be delivered?
• A: It takes 20-30 days for this product to be delivered after the order is confirmed.


• Q: What are the accepted payment terms for this product?
• A: The accepted payment terms for this product are TT, PayPal, Moneygram, and other methods.


• Q: What is the supply ability for this product?
• A: The supply ability for this product is 200 sets per month.
