Product Description:
Dual-station Sway Force Testing Machine - Accurate Measurement at Your Fingertips
Introducing the Dual-station Sway Force Testing Machine, a high-precision product designed for easy operation and wide application in the field of force measurement. This force testing machine is equipped with a force value sensor capacity of 0.5KN (50Kg F) and offers a test speed range of 0.1~1200mm/min. Its compact size, accurate measurement, and dual-station design make it an ideal choice for various force testing needs.
Key Features:
- Two-station Rocking Force Tester
- Dual-station Sway Force Testing Machine
- High-precision and Accurate Measurement
- Easy Operation
- Wide Application
The Dual-station Sway Force Testing Machine is designed with precision and ease of use in mind. It is suitable for a variety of industries such as automotive, aerospace, construction, and more. With its accurate measurement and dual-station design, it offers convenience and efficiency in force testing processes.
Don't settle for less than accurate and reliable force measurements. Upgrade to the Dual-station Sway Force Testing Machine and experience the difference in your testing processes. Contact us now to learn more and get your hands on this advanced force testing machine.
Features:
- Product Name: Dual-station Sway Force Testing Machine
- Test speed range: 0.1~1200mm/min
- Machine size: 1258*800*560mm
- Power: AC220V 3A 50Hz
- Force value sensor capacity: 0.5KN (50Kg F)
- Two-station Rocking Force Tester
- Dual-station Sway Force Testing Machine
- Swing Force Tester
- High Precision
- Wide Speed Range
- Compact Size
- Easy to Use
Technical Parameters:
| project |
specifications |
| Test station: |
2 Slot |
| Force value sensor capacity: |
0．5KN(50Kg f ) |
| Force value accuracy: |
±0.3% |
| Displacement measurement accuracy: |
±0.05mm |
| Displacement decomposition degree: |
0．001mm |
| Maximum test trip: |
150mm |
| Test speed range: |
0．1~1200mm/min |
| Test speed accuracy: |
±0.5% |

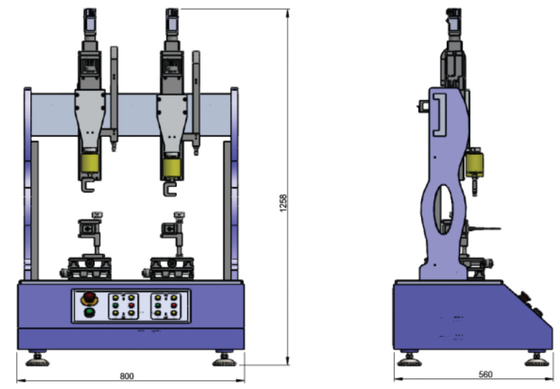

| Unit size (WxDxH): |
800x 560x 1258mm |
| Machine weight: |
About 105 Kg |
| Power: |
AC220V 3A 50Hz |
|
Applications:
Dual-station Sway Force Testing Machine - INFINITY IF6112
The INFINITY IF6112 is a highly accurate and efficient force testing machine designed for various industries and testing purposes. As a leading brand in the market, INFINITY is dedicated to providing top-notch quality products with advanced technology and reliable performance.
Product Attributes
- Brand Name: INFINITY
- Model Number: IF6112
- Place of Origin: MADE IN CHINA
- Certification: CE, ISO
- Minimum Order Quantity: 1
- Price: Negotiate
- Packaging Details: Clear sheet+sponge+wood carton
- Delivery Time: 20-30 days after order confirmed
- Payment Terms: TT, PAYPAL, Moneygram and so on
- Supply Ability: 300 sets / month
- Displacement Decomposition Degree: 0.001mm
- Machine Weight: About 105 Kg
- Maximum Test Trip: 150mm
- Force Value Accuracy: ±0.3%
- Power: AC220V 3A 50Hz
Product Applications
The INFINITY IF6112 is widely used in various industries for its precision and versatility. It is especially suitable for quality control, research and development, and production testing in the following scenarios:
- Swing Force Testing: This machine is perfect for measuring the swing force of different products, such as toys, tools, and electronic devices. It can accurately test the force applied during the swinging motion and provide valuable data for product improvement and safety assessment.
- Double Station Sway Force Test: With its dual-station design, the IF6112 can perform two tests simultaneously, which greatly improves efficiency and saves time. It is ideal for industries that require high-volume testing, such as automotive, aerospace, and construction.
- Dual-station Sway Force Testing: This machine is also capable of conducting dual-station sway force testing, which is essential for industries that require precise and consistent results, such as medical equipment and packaging.
The INFINITY IF6112 is a versatile and reliable force testing machine that meets international standards and is suitable for a wide range of applications. Its precision, efficiency, and advanced features make it a top choice for industries around the world.
Customization:
INFINITY IF6112 Dual-station Sway Force Testing Machine Customization Service
Brand Name: INFINITY
Model Number: IF6112
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 300 sets / month
Force value sensor capacity: 0.5KN(50Kg F )
Features:
- Real-time Display Of The Current Force Value And Displacement Changes
- Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram
- Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched
- The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers
- Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force
- Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information
- Test Data Is Stored In A Local Database For Easy Access And Query
- Header Content Of The Report Can Be Modified At Any Time (both Chinese And English)
- Report Can Be Automatically Generated Without Input
- Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents
- Meet The Independent Control And Independent Testing Of 2 Groups Of Products
Displacement Measurement Accuracy: ±0.05mm
Machine Weight: About 105 Kg
Test Speed Range: 0.1~1200mm/min
Product Keywords: Swing Force Tester, Dual-station Sway Force Testing Machine, Dual-station Sway Force Testing Machine for Product Customization
Packing and Shipping:
Dual-station Sway Force Testing Machine Packaging and Shipping
Our Dual-station Sway Force Testing Machine is carefully packaged to ensure safe delivery to our customers. Here's what you can expect when you receive your order:
- The Dual-station Sway Force Testing Machine is securely wrapped in protective materials to prevent any damage during shipping.
- It is then placed in a sturdy outer box to provide additional protection.
- Inside the box, you will find the Force Testing Machine along with all necessary accessories and manuals.
- The package is sealed to prevent any tampering during transit.
We understand the importance of timely delivery, which is why we use reliable shipping methods to ensure your order arrives on time. We offer both domestic and international shipping options to meet the needs of our customers.
If you have any specific packaging or shipping requests, please let us know and we will do our best to accommodate them. We are committed to providing the best service to our customers.
Thank you for choosing our Dual-station Sway Force Testing Machine. We hope it will meet and exceed your expectations.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
- Q: What is the model number of this product?
A: The model number of this product is IF6112.
- Q: Where is this product manufactured?
A: This product is made in China.
- Q: What certifications does this product have?
A: This product is certified with CE and ISO.
- Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
- Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
- Q: How is this product packaged?
A: This product is packaged with clear sheet, sponge, and wood carton.
- Q: How long is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
- Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are TT, PAYPAL, Moneygram, and others.
- Q: What is the supply ability of this product?
A: The supply ability of this product is 300 sets per month.
