| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Observation Window: | A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. | Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
|---|---|---|---|
| Temperature Uniformity: | ≦2.0℃ | Power: | AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required | Temperature Recovery Time: | Within 5Min |
| Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required | Product Name: | Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber |

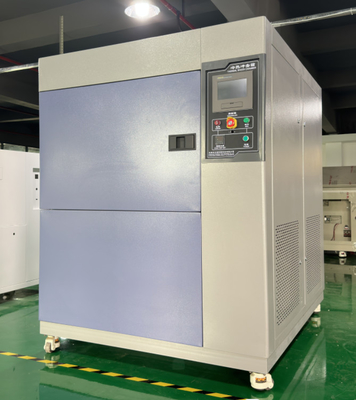

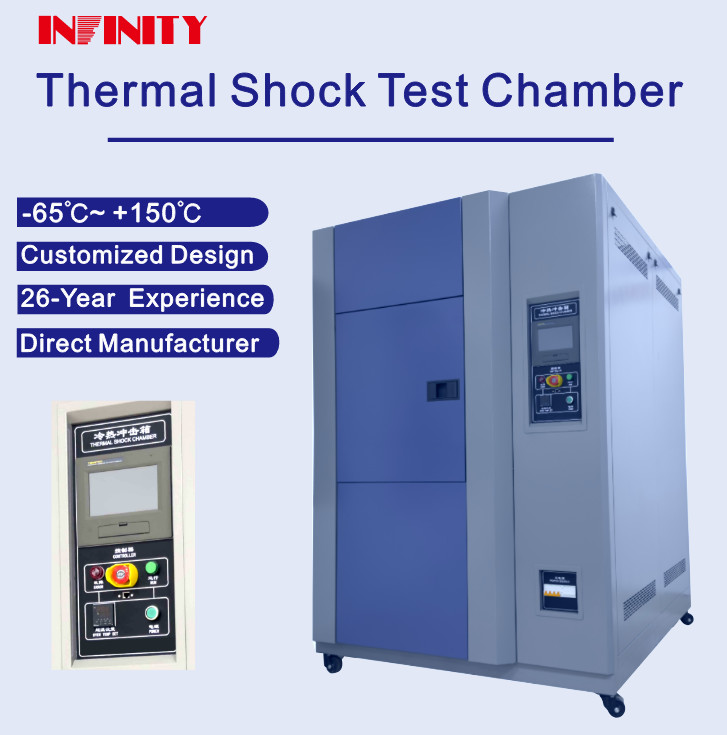

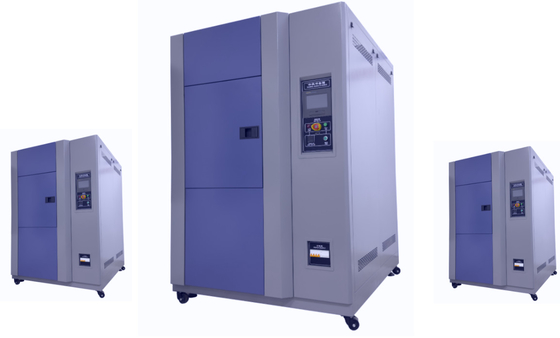

The Infinity IE31A1, manufactured in China, is a cutting-edge thermal Shock Test Chamber designed for various industries and applications. With its compact design and advanced features, this test chamber is a reliable and versatile tool for testing the effects of extreme temperatures on different products.
The Infinity IE31A1 is certified by CE and ISO, ensuring its quality and compliance with international standards. It can be used for a wide range of products, from metal parts to car spare parts, making it a valuable asset for companies in various industries.
The Infinity IE31A1 is suitable for a variety of testing scenarios, including:
Whether it's testing the effects of extreme temperatures on electronic components, car parts, or other products, the Infinity IE31A1 provides accurate and reliable results, making it an essential tool for product development and quality control.
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Rain test machine for electronic, tester equipment factory, Rain test chamber for home appliances
Our Thermal Shock Test Chamber are carefully packaged to ensure safe delivery to our customers.
Each chamber is wrapped in protective foam and placed in a sturdy cardboard box. The box is then sealed with strong packaging tape to prevent any damage during transportation.
We also use shock-absorbing materials to further protect the chamber from any impact during shipping.
For international orders, the chambers are securely packed in a wooden crate to withstand long-distance shipping.
Our shipping partners are reliable and experienced in handling delicate equipment, ensuring that your Climate Test Chamber arrives at its destination in perfect condition.
Upon arrival, please inspect the packaging for any signs of damage. If the packaging is damaged, please contact us immediately and we will work with you to resolve any issues.
Thank you for choosing our Climate Test Chambers. We are committed to providing high-quality equipment and excellent customer service.
