| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Fluctuation: | ±1℃ | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |
|---|---|---|---|
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required | Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany |
| Product Name: | Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber | Test Standards: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu |
| Observation Window: | A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Rever |

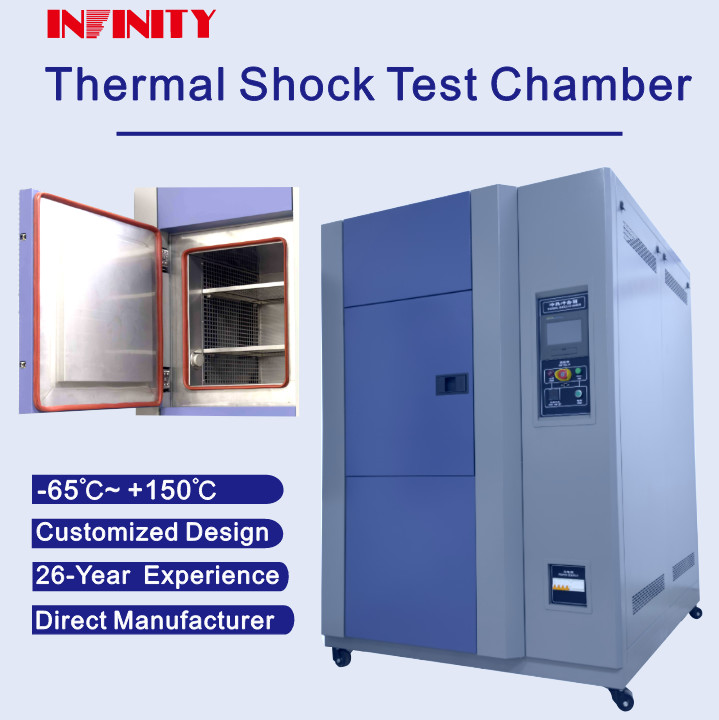

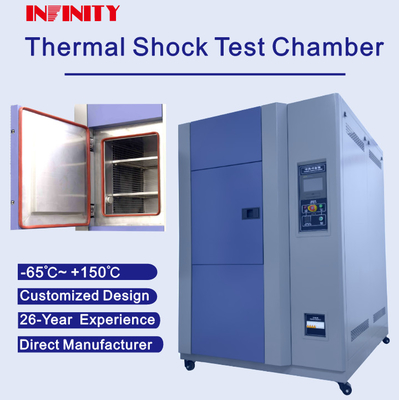

Adjustable Height Specimen Holder Climate Thermal Shock Test Chamber IE31A1408L With Safety Protection Device
Climate Thermal Shock Test Chamber is a high-quality testing machine designed and manufactured in China. It is specially designed for testing environmental conditions such as rain, temperature, and humidity on outdoor lamps. With its advanced features and precise control, it is the perfect test instrument for laboratory use.
Climate Thermal Shock Test Chamber is equipped with Non-fluorine Environmental Protection Refrigerant R404A R23, which is compliant with environmental protection regulations. This refrigerant is safe and non-toxic, making it suitable for use in various testing environments.
The Thermal Shock Test Chamber ensures precision and accuracy with a temperature uniformity of ≦2.0℃. This means that the temperature within the chamber is consistent throughout, ensuring reliable and repeatable test results.
An observation window is installed on the box door, measuring W 300mm x H 400mm. The window is made of multi-layer insulating electric thermal coated glass, providing excellent heat preservation and preventing condensation. This allows for easy observation and monitoring of the test samples.
The Thermal Shock Test Chamber has a wide temperature range of -65℃ ～ +150℃, making it suitable for testing a variety of environmental conditions. It can simulate extreme hot and cold temperatures, allowing for comprehensive testing of outdoor lamps.
In conclusion, The Thermal Shock Test Chamber is a top-of-the-line testing machine designed for the specific needs of outdoor lamp manufacturers. With its advanced features and precise control, it is the perfect solution for testing products in various environmental conditions. Trust in the quality and reliability of our China-manufactured Climate Test Chamber for your testing needs.
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Condenser mode: Water-cooled
Machine Features: GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test; GJB360.7-87 Temperature Shock Test; GJB367.2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type; Meet The Standard IEC68-2-14_ Test Method Temperature Change.

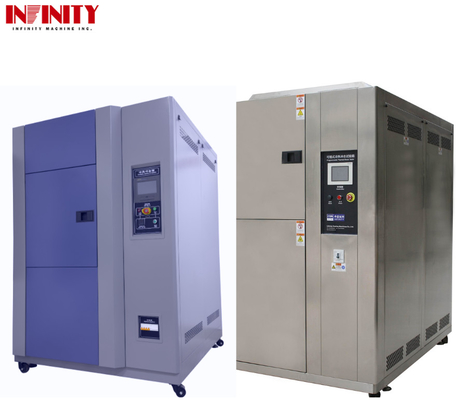

Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber
IE31A180L, IE31A1100L, IE31A1150L, IE31A1225L, IE31A1408L
The Infinity IE31A1 Thermal Shock Test Chamber is designed for testing the performance and durability of various products and materials under extreme temperature and humidity conditions. It is suitable for a wide range of industries, including electrical, electronics, and machinery. The chamber can simulate the temperature and humidity changes that occur during cold and hot impact testing, allowing for accurate evaluation of product quality.
The chamber is specifically designed for finished products or semi-finished parts, electrical appliances, instruments, materials, coatings, and coatings for corresponding climate mutation tests. Its various models offer different capacities to suit the needs of different industries.
The Thermal Shock Test Chamber is ideal for testing the performance and durability of various products and materials, including luggage, electronic devices, machinery parts, and coatings. Its weather simulation capabilities make it suitable for a wide range of industries, including electrical, electronics, and machinery.
The Thermal Shock Test Chamber can be used in a laboratory or testing facility. It is also commonly used in industries such as electronics, machinery, and luggage manufacturing.
The Thermal Shock Test Chamber is a complex and delicate piece of equipment designed to simulate various environmental conditions for testing purposes. As such, it requires careful packaging and shipping to ensure its safe delivery to our customers.
Our packaging process begins with selecting high-quality materials that can withstand the rigors of shipping. The Climate Test Chamber is first wrapped in a layer of protective foam to prevent any damage from external impacts. It is then placed in a sturdy cardboard box with additional cushioning materials to further protect it during transit.
For international shipments, the Thermal Shock Test Chamber is also carefully packed in a wooden crate to provide an extra layer of protection and to comply with international shipping regulations.
We offer various shipping options to meet the different needs of our customers. Our standard shipping method is through a reputable courier service, which provides a tracking number so that customers can monitor the status of their shipment.
For international shipments, we work with experienced freight forwarders to ensure that all necessary customs documents are prepared and that the shipment reaches its destination in a timely and efficient manner.
Upon delivery, our customers can expect their Climate Test Chamber to be in excellent condition, ready to be unpacked and installed for use.
With our careful packaging and shipping processes, we aim to provide our customers with the best experience and ensure that their Thermal Shock Test Chamber arrives safely and securely.
