| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Condenser Mode: | Water-cooled | Equipment Overview: | Apply For The Finished Product (or Semi-finished Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materi |
|---|---|---|---|
| Temperature Range: | -65℃ ～ +150℃ | Product Name: | Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber |
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required | Power: | AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW |

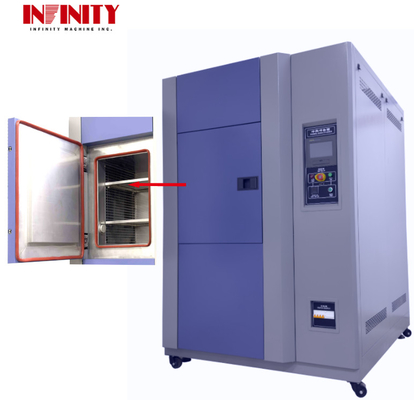

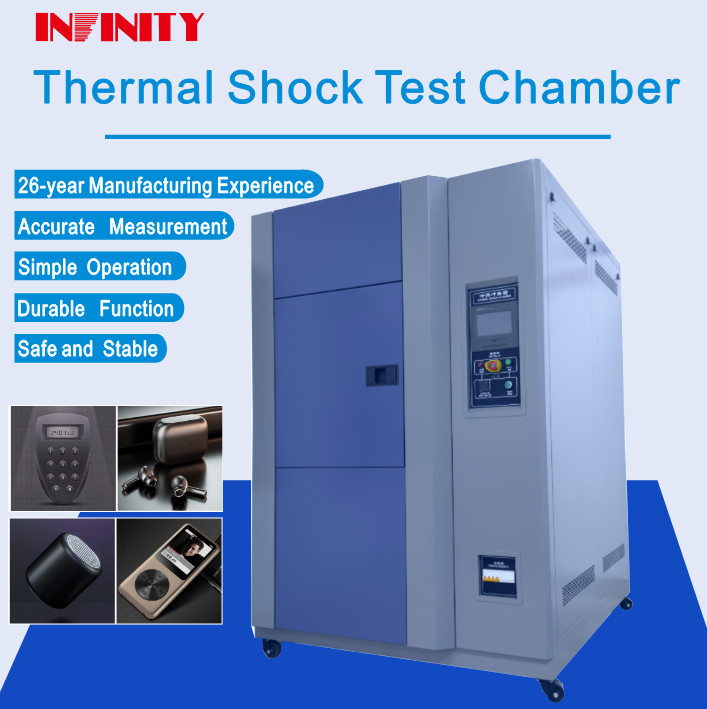

IE31A1100L Climate Thermal Shock Test Chamber For Humidity Test With Temperature Uniformity ≦2.0C IE31A1
The Climate Thermal Shock Test Chamber is a large test chamber that is specifically designed for testing the impact of different environmental conditions on products. It is an essential equipment for industries such as automotive, telecommunications, electronics, and aerospace.
The test chamber features a W 300 H 400mm observation window on the box door. This window is made of multi-layer insulating electric thermal coated glass which effectively provides heat preservation and prevents condensation. This allows for easy observation of the products being tested without compromising the internal temperature of the chamber.
The Climate Test Chamber is equipped with various machine features that meet international standards. It adheres to GB/T2423.1-2001 low-temperature test method, GB/T2423.2-2001, GB/T2423.22-1989 temperature change test, military standards GJB150.3-86, GJB150.4-86, GJB150.5-86, GJB360.7-87 temperature shock test, GJB367.2-87 405 temperature shock test, and J / T10187-91Y73 series temperature change test box-three-box type. It also complies with IEC68-2-14 test method for temperature change.
The name of the product, Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber, perfectly describes its purpose and features. It is designed to test the impact of both cold and hot temperatures, as well as high and low temperatures, on products. The chamber is programmable, allowing for precise control and customization of test conditions.
The Climate Thermal Shock Test Chamber requires AC380V power and has different power options available - 50Hz;18KW, 50Hz;22KW, and 50Hz;25KW. This ensures that the chamber is capable of handling different power requirements for various products.
Safety is a top priority when it comes to the Climate Thermal Shock Test Chamber. It is equipped with various safety protection devices such as heater air defense incineration protection, heater over current protection, circulation fan over current overload protection, compressor high pressure protection, compressor overheat protection, compressor over current protection, over voltage under reverse phase protection, circuit breaker, and leakage protection. These ensure the safety of both the products being tested and the users operating the chamber.
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
The Infinity IE31A1 Climate Thermal Shock Test Chamber is a high-quality product designed for a variety of temperature and humidity testing needs. This chamber is perfect for testing the performance and reliability of home appliances, as well as custom shower equipment.
The Infinity IE31A1 Climate Thermal Shock Test Chamber has an extensive range of applications in various industries. It is commonly used for testing the performance and durability of home appliances such as refrigerators, air conditioners, and washing machines. It is also suitable for testing the quality and reliability of custom shower equipment.
A home appliance manufacturing company has just finished the production of a new refrigerator model and needs to test its performance under extreme temperature and humidity conditions. They turn to the Infinity IE31A1 Climate Test Chamber for its efficient and reliable testing capabilities. With its quick temperature recovery time and accurate temperature uniformity, the company is able to ensure the quality and durability of their product before it hits the market.
The chamber is also used by a custom shower equipment manufacturer to test the functionality and safety of their products. With the IE31A1, they can simulate various weather conditions to ensure that their equipment can withstand different environments and provide a safe and enjoyable shower experience for their customers.
No matter the industry or product, the Infinity IE31A1 Climate Test Chamber is a valuable tool for testing and ensuring the quality and reliability of various products. With its high-quality design and extensive application, it is a must-have for any company looking to deliver top-notch products to their customers.
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and so on
Supply Ability: 200 sets / month
Down From RT To -55℃ Approximately 75min Is Required
This Climate Thermal Shock Test Chamber is designed for the finished product (or semi-finished parts), electrical appliances, instruments, materials, coatings, and coatings for corresponding climate mutation tests. It is suitable for electrical, electronics, and machinery industries to test the high and low temperature and humidity of products, parts, and materials, and simulate the temperature and humidity changes in cold and cold impact tests to evaluate the quality of the test products.
Up From RT To +150℃ Approximately 50min Is Required
The Climate Thermal Shock Test Chamber is a precision instrument that requires careful packaging and shipping to ensure safe delivery to our customers. Our team at INFINITY MACHINE takes great care in handling and packing each unit to meet international shipping requirements and guarantee its arrival in perfect condition.
Each Climate Thermal Shock Test Chamber is first wrapped in a layer of protective material to prevent any scratches or damage during transit. It is then placed in a sturdy, custom-made cardboard box that is designed to withstand any external pressure and keep the unit secure.
To further protect the unit, we use high-quality foam inserts that are specifically cut to fit the shape of the Climate Test Chamber. This not only provides additional cushioning but also prevents any movement or shifting of the unit during shipping.
The outside of the box is then labelled with the necessary shipping information, including the customer's address, contact details, and any special handling instructions. We also include our company logo and contact information to ensure easy identification and communication.
For international shipments, we follow all necessary customs and shipping regulations to ensure a smooth delivery process. We also provide all necessary documentation, such as commercial invoices and certificates of origin, to facilitate customs clearance.
At INFINITY MACHINE , we work with trusted and reliable shipping partners to ensure timely and secure delivery of our Climate Test Chambers. Our team closely monitors the shipping process and provides updates to our customers until the unit reaches its final destination.
We take great pride in our packaging and shipping process and strive to continuously improve our methods to guarantee the safe arrival of our products. As a customer-focused company, we are committed to ensuring the satisfaction of our customers in every aspect of their experience with our Climate Thermal Shock Test Chamber.
