Place of Origin: | China |
Brand Name: | Infinity |
Certification: | CE,ISO |
Model Number: | IE31A1 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Rever | Test Standards: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu |
---|---|---|---|
Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Machine Features: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu |
Temperature Fluctuation: | ±1℃ | Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
Temperature Range: | -65℃ ~ +150℃ | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |

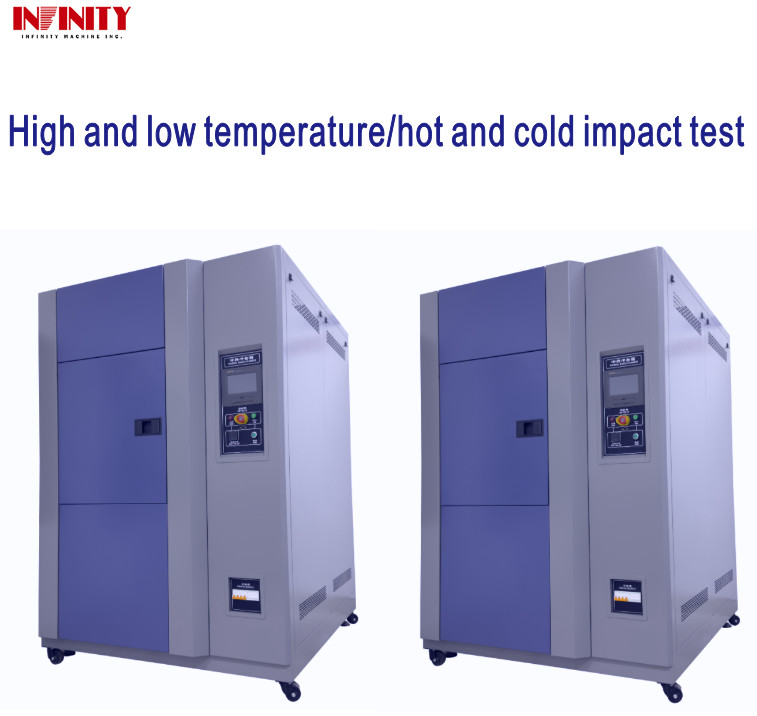

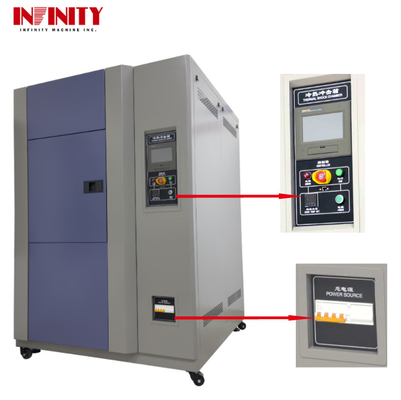

Multi-Layer Insulating Electric Thermal Shock Climate Test Chamber For Military Standard GJB150.4-86
This Climate Thermal Shock Test Chamber is specially designed for testing the performance and durability of outdoor lamps under various weather conditions. It is also known as the Rain Test Chamber for Outdoor Lamp or IPX1234 Rain Test Chamber.
The Climate Thermal Shock Test Chamber has a temperature range of -65℃ to +150℃, making it suitable for simulating extreme weather conditions such as freezing cold and scorching heat. It is equipped with an observation window that measures 300mm in width and 400mm in height, providing a clear view of the testing process. The window is made of multi-layer insulating electric thermal coated glass, which effectively preserves heat and prevents condensation.
The outer wall of the chamber is made of high quality carbon steel plate and has been treated with electrostatic color spray plastic for a durable and attractive finish. The left side of the box has a diameter of φ 50mm hole for connecting external equipment. The inner wall is made of SUS304 # fog surface stainless steel plate, ensuring superior corrosion resistance. The thermal insulation material consists of a hard polyurethane foam thermal insulation layer and glass fiber, providing efficient heat insulation.
The Climate Thermal Shock Test Chamber meets various international and military standards, including GB/T2423.1-2001 Low-temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Shock Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, and J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type. It also meets the standard IEC68-2-14_ Test Method Temperature Change.
The Climate Thermal Shock Test Chamber requires a power supply of AC380V;50Hz;18KW, AC 380;V50Hz;18KW, AC 380;V50Hz;22KW, AC 380;V50Hz;22KW, or AC 380;V50Hz;25KW, depending on the specific model. It is designed to be energy-efficient and cost-effective in the long run.
Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
Temperature range | -65℃ ~ +150℃ | ||||
Temperature fluctuation | ±1℃ | ||||
Temperature uniformity | ≦2.0℃ | ||||
Temperature recovery time | Within 5Min | ||||
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, etc.
Supply Ability: 200 sets / month
Thermal Insulation Box:
Observation Window: A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Cooling Rate (Cold Storage Area): Down From RT To-55℃ Approximately 75min Is Required.
Test Standards:
Condenser Mode: Water-cooled
This Climate Thermal Shock Test Chamber from Infinity is a high-quality and durable tester equipment designed for various environmental tests. It is manufactured in China and has passed CE and ISO certification.
The thermal insulation box is made of high-quality carbon steel plate and is treated with electrostatic color spray plastic for a professional and clean appearance. The inner wall is made of SUS304 # fog surface stainless steel plate for maximum protection against corrosion. The thermal insulation layer is made of hard polyurethane foam and glass fiber for efficient heat preservation and insulation.
The observation window is made of multi-layer insulating electric thermal coated glass, providing both heat preservation and preventing condensation. The cooling rate for the cold storage area is approximately 75 minutes from room temperature to -55℃, making it suitable for various temperature tests.
This Climate Thermal Shock Test Chamber meets various test standards such as GB/T2423.1-2001 Low-temperature Test Method and Military Standard GJB150.5-86 Temperature Shock Test. It has a water-cooled condenser mode for efficient cooling.
This product is suitable for rain and spray tests, making it ideal for industries such as automotive, electronics, and aerospace. It is a reliable and essential equipment for any testing laboratory.
The Climate Thermal Shock Test Chamber will be carefully packaged to ensure its safe delivery. The packaging will consist of the following materials:
The Climate Thermal Shock Test Chamber will be securely placed in the cardboard box and surrounded by bubble wrap to protect it from any impact during shipping. Foam padding will also be used to provide additional cushioning. The entire package will then be wrapped in plastic to protect it from any moisture or dust.
The Climate Thermal Shock Test Chamber will be shipped using a reliable and trusted courier service. The shipping process will follow these steps:
The estimated shipping time will be provided upon purchase and may vary depending on the shipping address. The customer will be notified once the package has been shipped and provided with a tracking number for real-time updates on the delivery status.
Thank you for choosing our Climate Thermal Shock Test Chamber. We strive to provide the best packaging and shipping services to ensure your product arrives safely and on time.
