Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1

Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1

  • Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1
  • Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1
Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1
Product Details:
Place of Origin: China
Brand Name: Infinity
Certification: CE,ISO
Model Number: IE31A1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Temperature Recovery Time: Within 5Min Product Name: Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber
Box Door: Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. Observation Window: A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Power: AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW Temperature Uniformity: ≦2.0℃
Machine Features: GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu Temperature Fluctuation: ±1℃

Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1 0

Product Description:

Climate Thermal Shock Test Chamber Product Overview

The Thermal Shock Test Chamber is a state-of-the-art testing equipment designed to simulate various environmental conditions, such as temperature, humidity, and light, to evaluate the performance and reliability of products. It is a must-have tool for manufacturers and researchers in industries such as electronics, automotive, aerospace, and pharmaceuticals.

This product is proudly manufactured in China, known for its high-quality testing machines and equipment. With years of experience and advanced technology, our Thermal Shock Test Chamber provides precise and reliable results, making it a top choice for businesses and institutions around the world.

Key Features
  • Heating Rate: The Thermal Shock Test Chamber can achieve a heating rate of up to 150℃ from room temperature in just 50 meters.
  • Temperature Fluctuation: With a temperature fluctuation of only ±1℃, our Climate Test Chamber ensures accurate and consistent testing results.

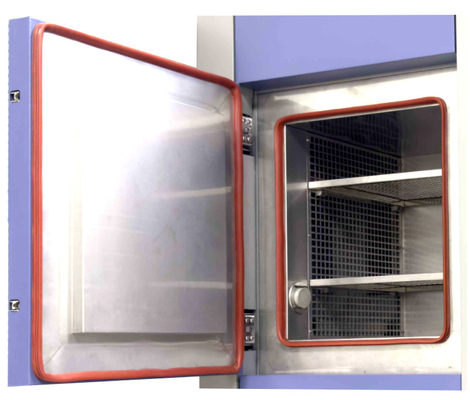

  • Box Door: The chamber's door can be opened alone, and it comes with a door frame heating wire to prevent condensation at low temperatures.
  • Observation Window: A W 300 H 400mm observation window is installed on the chamber's door, equipped with multi-layer insulating electric thermal coated glass to provide heat preservation and prevent condensation.
  • Power: Our Climate Test Chamber runs on AC380V, 50Hz, with power options ranging from 18KW to 25KW, depending on the specific needs of our clients.
Product Specifications
Model Power Heating Rate Temperature Fluctuation
CTC-18 AC 380V; 50Hz; 18KW Up from RT to + 150℃ in 50m ±1℃
CTC-22 AC 380V; 50Hz; 22KW Up from RT to + 150℃ in 55m ±1℃
CTC-25 AC 380V; 50Hz; 25KW Up from RT to + 150℃ in 55m ±1℃

Invest in our Climate Test Chamber, the top choice for climate test equipment in the market. With its advanced features and precise results, it will help you ensure the quality and reliability of your products. Contact us now for more information and a customized quote.

Keywords: Chamber for Climate, China manufacture for testing machine, climate test equipment

Thermal Shock Test Chamber Suitable For Electrical Temperature Fluctuation ±1C IE31A1 1
Model IE31A180L IE31A1100L IE31A1150L IE31A1225L IE31A1408L
Temperature range -65℃ ~ +150℃
Temperature fluctuation ±1℃
Temperature uniformity ≦2.0℃
Temperature recovery time Within 5Min

Heating rate

(heat storage area)

Up from RT to + 150℃ About 50m in is required Up from RT to + 150℃ About 55m in is required

Cooling rate

(cold storage area)

Down from RT to-55℃ About 75min is required Down from RT to-55℃ Approximately 75min is required

Internal box size:

WxHxD(mm )

500x 400x400 500x 400x500 500x 600x500 500x750x600 600×850×800

Out box size:

WxHxD(mm )

1480×1450 ×1950 1480×1485×2050 1500×1750×2150 1600×1900×2250 1800x2000x2500

Thermal

insulation box

● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole.

● Inner wall material: SUS304 # fog surface stainless steel plate.

● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.

Box door Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
Observation window A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
specimen holder Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.

Refrigeration

compressor

Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany
Cooling medium Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
Condenser mode

water-cooled



water-cooled



water-cooled



water-cooled



water-cooled



Safety protection device Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection.
Power AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW


Applications:

Infinity Thermal Shock Test Chamber - Your Ultimate Solution for Environmental Testing
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Safety Protection Device:
  • Heater Air Defense Incineration Protection
  • Heater Over Current Protection
  • Circulation Fan Over Current Overload Protection
  • Compressor High Pressure Protection
  • Compressor Overheat Protection
  • Compressor Over Current Protection
  • Over Voltage Under Reverse Phase Protection
  • Circuit Breaker
  • Leakage Protection
Cooling Medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
Product Name: Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber
Product Description:

The Infinity Thermal Shock Test Chamber is a state-of-the-art environmental testing equipment designed for a wide range of applications. It is suitable for testing the performance and reliability of various electronic and mechanical products under extreme temperatures, humidity, and other environmental conditions. With its advanced features and robust construction, this test chamber is a must-have for companies and industries that require precise and accurate environmental testing.


Thermal Insulation Box:
  • Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole.
  • Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate.
  • Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber.

With its high-quality materials and advanced technology, the Infinity Climate Test Chamber is built to last and provide accurate and reliable results for all your environmental testing needs. Contact us today to learn more about this product and how it can benefit your business.



Customization:

Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Observation Window: A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Safety Protection Device: Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection.
Cooling Rate (Cold Storage Area): Down From RT To -55℃ About 75min Is Required Down From RT To -55℃ Approximately 75min Is Required
Temperature Range: -65℃ to +150℃
Power: AC380V; 50Hz; 18KW AC 380; V50Hz; 18KW AC 380; V50Hz; 22KW AC 380; V50Hz; 22KW AC 380; V50Hz; 25KW
Keywords: water spray test chamber for car spare parts, Small Environmental Test Chamber, Climatic Chamber


Packing and Shipping:

Packaging and Shipping
Thermal Shock Test Chamber

Our Thermal Shock Test Chamber is carefully packaged to ensure safe and secure delivery to our customers. Each unit is wrapped in protective foam and placed in a sturdy cardboard box to prevent any damage during transit.

We also offer customized packaging options for our customers, such as wooden crates or pallets, for an additional cost.

All packages are labeled with detailed handling instructions and our company logo for easy identification.

For international shipping, we use trusted shipping carriers with experience in handling fragile and sensitive equipment. We also provide proper documentation and labeling for customs clearance.

Our standard shipping time for the Thermal Shock Test Chamber is 3-5 business days for domestic orders and 7-10 business days for international orders.

Upon arrival, please inspect the packaging for any signs of damage. If there is any damage to the packaging, please take photos and contact our customer service team immediately.

Thank you for choosing our Thermal Shock Test Chamber. We strive to provide the best packaging and shipping services to ensure your product arrives safely and in perfect condition.
