| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Test Standards: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu | Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Rever |
| Power: | AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW | Condenser Mode: | Water-cooled |

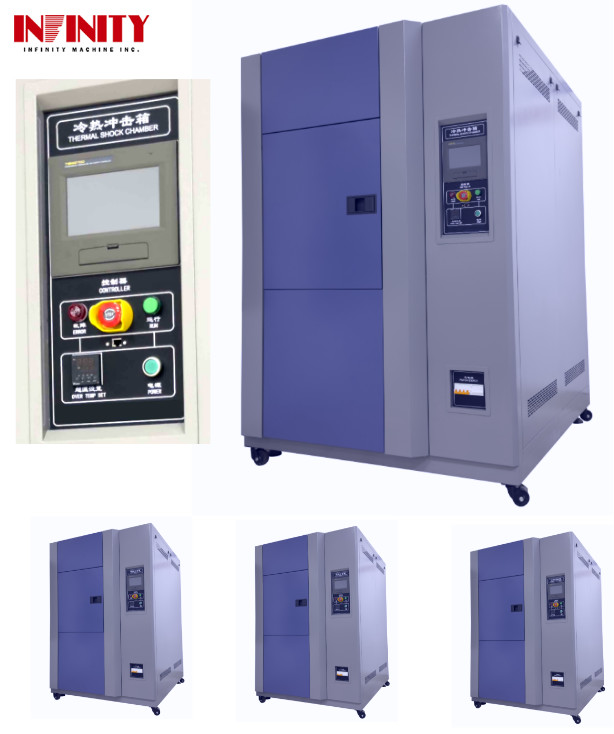

Carbon Steel Plate Outer Wall Material Water-Cooled Climate Thermal Shock Test Chamber For IE31A1408L
The Climate Thermal Shock Test Chamber is a highly advanced testing equipment designed and manufactured by Environmental Test Chamber Manufacturers. It is specifically designed to simulate various weather conditions and their effects on different materials and products. The chamber is equipped with state-of-the-art technology and features, making it the perfect choice for conducting climate mutation tests on a wide range of products.
As an experienced manufacturer, we also offer customized rain test equipment and water spray test chambers for metal parts. These features can be added to the Climate Thermal Shock Test Chamber upon request, providing our customers with a more comprehensive testing solution tailored to their specific needs.
"Experience the power of climate testing with our Climate Thermal Shock Test Chamber!"
| Model | IE31A1 80L | IE31A1 100L | IE31A1 150L | IE31A1 225L | IE31A1 408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||

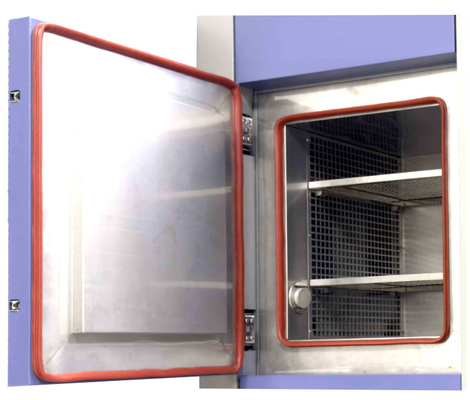

| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
The Climate Thermal Shock Test Chamber is a high-quality environmental testing equipment designed and manufactured by Infinity, a leading brand in the industry. The model number IE31 is a versatile and reliable product that can simulate various environmental conditions for testing purposes.
| Temperature Uniformity | ≦2.0℃ |
|---|---|
| Refrigeration Compressor | Half-compact Compressor In Bitzer, Germany |
| Condenser Mode | Water-cooled |
| Temperature Recovery Time | Within 5Min |
The Climate Thermal Shock Test Chamber is widely used in various industries for testing the effects of extreme temperature and humidity on products. It provides a controlled environment for products to be tested under extreme conditions and assess their performance and durability.
Some of the common applications of the Climate Test Chamber include:
The following are some scenarios where the Climate Test Chamber can be used:
As one of the leading Environmental Test Chamber Manufacturers in China, Infinity offers a range of high-quality and customizable testing equipment. The Climate Test Chamber is designed to meet international standards and provide accurate and reliable results. Our products are known for their durability, precision, and user-friendly interface, making them a popular choice among industries.
In addition to the Climate Thermal Shock Test Chamber, Infinity also offers customized rain test equipment, known as IPX1234 Rain Test Chamber. This equipment is used to simulate various levels of rain to test the waterproof capabilities of products.
At Infinity, we understand the unique needs of our customers and offer tailored solutions to meet their requirements. Our team of experts works closely with clients to design and manufacture rain test equipment that meets their specific testing needs.
The Thermal Shock Test Chamber is another popular product offered by Infinity, which is used to test the resistance of products to sudden changes in temperature. This equipment is highly efficient and provides quick temperature recovery time, making it ideal for testing a wide range of products.
With Infinity, you can expect high-quality products, excellent customer service, and competitive prices. Contact us now to learn more about our Climate Thermal Shock Test Chamber and other testing equipment.
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature Fluctuation: ±1℃
The Infinity Climate Thermal Shock Test Chamberr is a rain test machine designed for electronic products, specifically for outdoor lamps. Made in China, it is certified with CE and ISO and has a minimum order quantity of 1 unit. The price is negotiable and it comes with clear sheet, sponge, and wood carton packaging. The delivery time is 20-30 days after order confirmation and various payment methods such as TT, PAYPAL, and Moneygram are accepted. With a supply ability of 200 sets per month, it guarantees efficient and timely delivery.
The Infinity Climate Thermal Shock Test Chamber is suitable for testing finished products or semi-finished parts, electrical appliances, instruments, materials, coatings, and coatings under different climatic conditions. It is widely used in the electrical, electronics, and machinery industries to evaluate the quality of their products. It can simulate temperature and humidity changes, as well as perform cold and cold impact tests.
The specimen holder of the Infinity Climate Thermal Shock Test Chamber is made of stainless steel and has 2 layers that are adjustable in height. Each layer can bear a weight of 30kg.
The box door of the Infinity Climate Thermal Shock Test Chamber is equipped with a W 300mm x H 400mm observation window. It is made of multi-layer insulating electric thermal coated glass, which effectively provides heat preservation and prevents condensation.
Climate Thermal Shock Test Chamber is carefully packaged to ensure safe and secure delivery to our customers. Here is our standard packaging and shipping process:
Upon delivery, please inspect the package for any signs of damage during transit. If there are any concerns, please contact us immediately.
We strive to deliver our Climate Thermal Shock Test Chamber in the most efficient and secure manner. Thank you for choosing our product.
