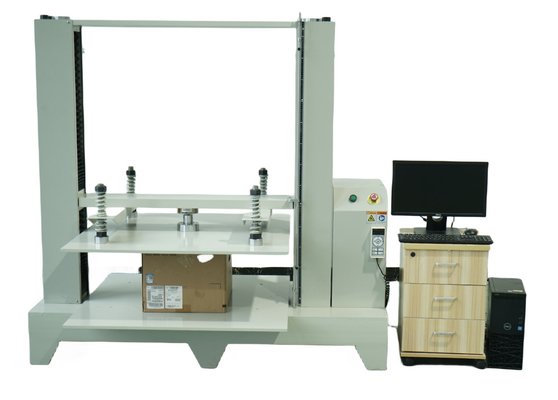

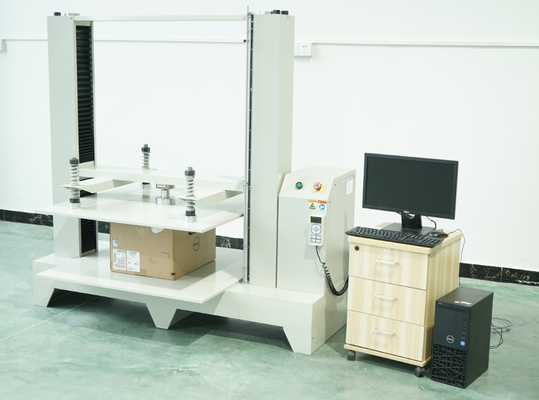

C5460-2T 20KN ASTM D642 Compression Load Testing Machine For Industrial Applications Packaging Box Compression Testing

C5460-2T 20KN ASTM D642 Compression Load Testing Machine For Industrial Applications Packaging Compression Tester

Application:
C5450-2T packaging carton compression tester is applied for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.

Test standards:

GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.

Features:

• Brand Name: Infinity Machine

1. High stability:
2. Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.
3. High precision:

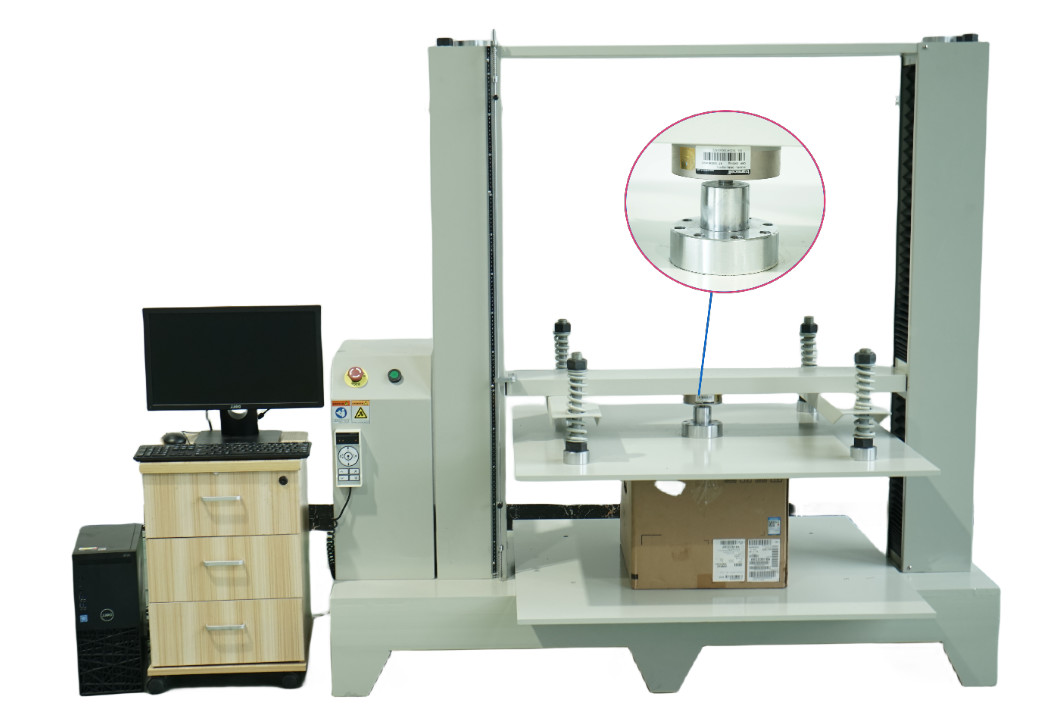

4. Adopt highly precise explosion-proof load cell, repeat tolerance: ±0.01%F.S.
5. Professional control software:
6. Servo motor control and computer professional software control. It can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .

The compression test.

This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.

1.1 The test setting interface.

1.2The testing interface and real-time testing graph.

The test graph can be saved and to edit the test report.

1.3 The testing report.

The parameters in the test report can be edited, the testing result is auto created.

The testing report can be printed and also can be converted to be PDF format.

Product Description:

The Compression Test Machine is a state-of-the-art equipment designed for accurately measuring compression pressure, strength, and hardness of various materials. It is an essential tool for quality control and research and development in industries such as construction, automotive, aerospace, and manufacturing.

• Test Space: 1200x1200x1200mm
• Dimension: 2100x1300x2100mm
• Power Supply: AC220V 50Hz 5A Or Specified By User
• Test Speed: 0.001~200mm/min
• Weight: 1400kg

• High Accuracy: The Compression Test Machine is equipped with advanced sensors and software that ensure precise and reliable test results.
• Wide Test Space: With a test space of 1200x1200x1200mm, this machine can accommodate a wide range of materials for compression testing.
• Easy to Use: The user-friendly interface and intuitive controls make it easy for operators to set up and run tests efficiently.
• Versatile: This machine can test various materials including concrete, metal, plastic, and rubber, making it a versatile tool for different industries.
• Adjustable Test Speed: The test speed can be adjusted from 0.001 to 200mm/min, allowing for accurate testing of different materials with varying compression rates.
• Robust and Durable: The Compression Test Machine is made with high-quality materials and components, ensuring its durability and long lifespan even with frequent use.
• Safety Features: This machine is equipped with safety features such as emergency stop buttons and overload protection, ensuring the safety of operators during testing.

The Compression Test Machine is suitable for a wide range of applications, including:

• Testing the compression strength of concrete, bricks, and other construction materials
• Measuring the compression hardness of metals, plastics, and rubber
• Quality control testing in manufacturing industries
• Research and development in the automotive and aerospace industries

The Compression Test Machine is a reliable and efficient tool for accurately measuring the compression properties of various materials. Its high accuracy, versatility, and durability make it an essential equipment for industries that require precise and reliable compression testing. With its user-friendly interface and safety features, this machine is suitable for both experienced technicians and novice operators. Choose the Compression Test Machine for your compression testing needs and experience superior quality and performance.

Technical Parameters:

Customization:

Brand Name: Infinity Machine

Model Number: C5460-2T

Place of Origin: Made In China

Motor: AC Servo Motor

Power supply: AC220V 50Hz 5A Or Specified By User

Product name: Packaging Carton Compression Tester

Test space: 1200x1200x1200mm

Test speed: 0.001~200mm/min

Key words: Compression Stress Testing Machine, Compression Strength Testing Machine, Compression Durability Testing Machine, Packaging Carton Compression Test

Packing and Shipping:

The Compression Test Machine is carefully packaged to ensure safe and secure delivery to our customers. Each unit is individually packed in a sturdy cardboard box with ample padding and cushioning materials to protect it from any potential damage during transit.

For international shipments, the Compression Test Machine is shipped in a wooden crate for added protection. The crate is securely strapped and labeled with all necessary shipping information, including the product name, model number, and destination address.

We work closely with trusted logistics partners to ensure timely and efficient delivery of our products. Depending on the customer's location and shipping preferences, we offer a variety of shipping options, including air, sea, and land transportation.

Upon receiving the Compression Test Machine, customers are advised to carefully inspect the package for any signs of damage or mishandling during transit. In the rare event of a damaged product, customers are requested to contact our customer service team immediately for assistance.

Thank you for choosing our Compression Test Machine. We are committed to providing high-quality products and excellent customer service. If you have any further questions or concerns, please do not hesitate to contact us.
