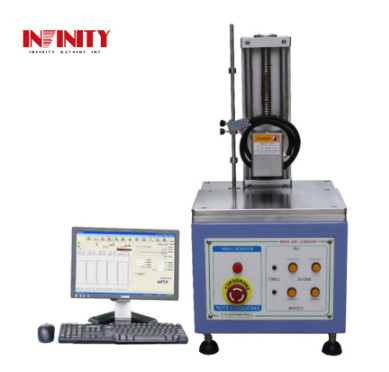

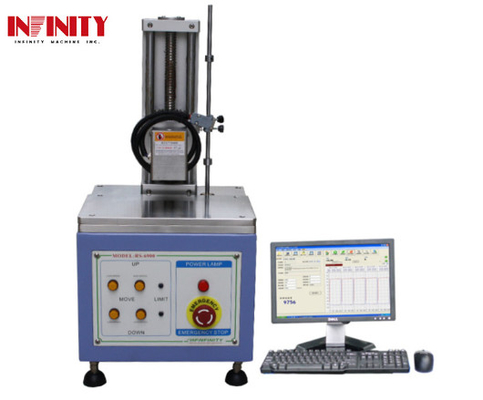

High Performance Servo Control Keystoke Switch Tester With AC Servo Motor

High Performance Servo Control Keystoke Switch Tester With AC Servo Motor

High Performance Servo Control Keystoke Switch Tester With AC Servo Motor
High Performance Servo Control Keystoke Switch Tester With AC Servo Motor
High Performance Servo Control Keystoke Switch Tester With AC Servo Motor
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IF6001A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Speed: 0~200mm/min Power Supply: AC220V 5A Or Specified By User
Product Name: Servo Control Keystoke / Switch Tester Main Unit Weight: 25kg
Unit (switchable): Unit (switchable) Min. Load Display: 0.01gf
Test Stroke: 100mm
High Light:

Servo Control Keystoke Switch Tester

,

AC Servo Motor Keystoke Switch Tester



Servo Control Keystoke / Switch Tester



Model Number:IF6001A

High-Performance Servo Control Keystoke / Switch Tester with AC Servo Motor

Product Description:



This Servo Control Keystoke / Switch Tester is used for pressing force test and rebounding force test of keyboard buttons, and the keystokes, buttons of all kinds of electronic products.
Adopt high precision load cell and drive by servo motor, can get accurate force testing data.

Features:

  • The software can create the force value testing report and the testing curves.
  • The values of peak force, return force, distance, TT, Click rate and dynamic Impedance data can directly display on the testing window.
  • FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing and past or failure can be judged by software according r setting the judging conditions.
  • Chinese / English display interface can be shifted by user; N, lb, gf, kg units can be shifted freely.
  • Testing methods can be set and reserved by user, and can create the life-time damping curve and the testing report which can be converted to be Excel and PDF file, or can be printed out directly from the original file.

Technical Parameters:

Model IF6001A
Capacity (optional) 500gf, 2kgf, 5kgf
Unit (switchable) Kgf, N, Lb, gf
Load accuracy ±0.5%
Min. load display 0.01gf
Test stroke 100mm
Min. angle display 0.001mm
Test speed 0~200mm/min
Speed accuracy ±0.5%
Motor AC servo motor
Main unit dimension (WxDxH) 300x270x500mm
Main unit weight 25kg
Power supply AC220V 5A or specified by user



Button Force Testing:



  1.  Automatically inductive test method: no matter what height of the key is, it can be controlled by computer automatically through the test of the Button test method.
  2. Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.
  3. The test graph for the button test:High Performance Servo Control Keystoke Switch Tester With AC Servo Motor 0



Applications:

Servo Control Keystoke / Switch Tester - Infinity Machine IF6001A
  • Rubber key force test
  • Spring & key force test
  • Keyboard & mobile keystoke force test
  • Switch force test

Customization:

Servo Control Keystoke / Switch Tester - Customization Service

Brand Name: Infinity Machine

Model Number: IF6001A

Place of Origin: Made In China

Load accuracy: ±0.5%

Main unit weight: 25kg

Min. angle display: 0.001mm

Test speed: 0~200mm/min

Test stroke: 100mm

Key Features:

  • Servo Control Keystoke / Switch Tester
  • Rubber key force test
  • Switch force test

Support and Services:

Servo Control Keystoke / Switch Tester Technical Support and Service

Thank you for choosing Keyboard Button Tester. We are dedicated to providing you with the best support and service for our product. Please read through the following information to learn more about our technical support and service options.

Online Support

Our website provides a comprehensive FAQ section and user manual to help you troubleshoot any issues you may encounter with our product. You can also submit a support ticket through our website for further assistance from our technical support team.

Email Support

If you have any questions or concerns, you can reach out to us through email .com. Our team will respond to your inquiry within 24 hours.



Packing and Shipping:

Packaging and Shipping for Servo Control Keystoke / Switch Tester
Packaging:

The Servo Control Keystoke / Switch Tester will be packaged in a sturdy cardboard box to ensure safe transportation. The product will be carefully wrapped in bubble wrap to prevent any damage during shipping.



Shipping:

The Servo Control Keystoke / Switch Tester will be shipped through a reliable and trackable courier service. We offer worldwide shipping to ensure that our product is available to customers around the globe.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name is Infinity Machine.
  • Q: What is the model number of this product?
  • A: The model number is IF6001A.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: Is this product easy to use?
  • A: Yes, it is designed to be user-friendly and easy to use.
