ANSI Z97.1-1984 Impact Testing Machine For Safety Glass

ANSI Z97.1-1984 Impact Testing Machine For Safety Glass

ANSI Z97.1-1984 Impact Testing Machine For Safety Glass
ANSI Z97.1-1984 Impact Testing Machine For Safety Glass
ANSI Z97.1-1984 Impact Testing Machine For Safety Glass
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Model Number: B8120R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Shatter Proof Glass Pendulum Impact Teser: Standard export wooden case with operation manual and video inside.
Delivery Time: Laminated Glass Shotgun Impact Tester: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Shotgun bag impact testing machine: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Glass Impact Testing Machine/Glass Drop Impact Test Machine/Impact Drop Tester Model: B8120R
Impact Way: Pendulum Bob Swing Arm Radius: 300~1200mm
Impact Canister ’s Weight: 45kg±0.1kg The Canister Ball Dia.: ∮2.5mm
Warranty: 12months Power Supply: AC220V 50Hz Or Specified By User
Highlight:

ANSI Z97.1 Impact Testing Machine

,

Safety Glass Impact Testing Machine

,

Safety Glass Impact Tester

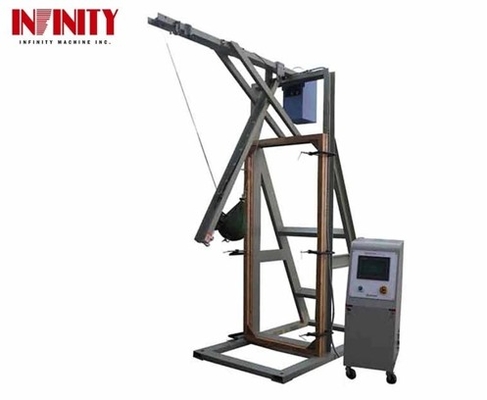

ANSI Z97.1-1984 Pendulum Impact Testing Machine, Shotgun Bag Impact Tester for Testing Safety Glass

Toughened Glass Impact Tester Machine



Model: B8120R





Application:



Shot Bag Impact Apparatus is built to meet GB9963,GB/T9963,ECE R43 and used to shot bag impact testing or pendulum testing glass.



Standard:



ANSI Z97.1-1984, ISO/DIS12542 1~12543-6:1997, AS/NZ S2208:1996, GB/T9962-1999



Specification:



Model B8120R
Impact way Pendulum bob
Swing arm Radius 1530mm
Impact height 300~1200mm
Impact canister ’s weight 45kg±0.1kg
The canister ball dia. ∮2.5mm
Specimen size H1930xW864mm
Inner size of Wooden Fixing frame

H1911xW845mm The part which contact the specimen

is the rubber with hardness Shore 50 degree

Dimension(WxDxH) 1200x1800x2200mm
Weight About 700kg
Power 1∮ AC220V 3A or specified by user
