| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | B8200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE Tape Drop Ball Impact Test Machine: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | PE Tape Drop Ball Impact Test Machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | PE Tape Drop Ball Impact Tester: 200 sets per month |
| Max. Height: | 2m | Control Way Of Ropped Ball: | DC Electromagnetic Control |
|---|---|---|---|
| Standard: | JIS K6745. A5403 GB/T4537-92 | Dimension: | 400 X 450 X 2200mm |
| Weight: | About 50Kg | Power Supply: | AC220V 50Hz 3A Or Specified By User |
Purpose:

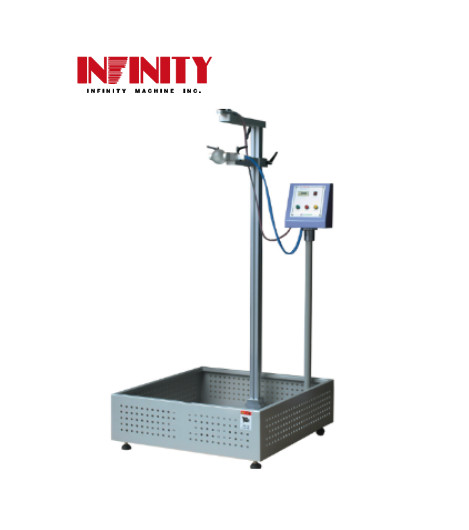

Drop ball impact test machine is used to tape, plastic, building materials, ceramics, coatings and other test samples, exert instantaneous impact, to destroy the material needed for the impact of energy instrument. At the same time, drop ball impact testing instrument can also be used for the same material, the same specifications of the sample impact comparison test to identify the quality of the material whether is good or not.
Application:
Drop Ball Impact Tester Machine applies for ceramic, acrylic, glass, plastic, tape and etc.
Standard: JIS K6745. A5403 GB/T4537-92
Specification:
| Max. height | 2 meters |
| Control way of ropped ball | DC electromagnetic control |
| Steel ball weight | JIS Standard 112g, 198g, 225g, 357g, 533g, 1042g, 2280g (Standard) |
| Standard GB/T14485: 454g, 761g, 1053g, 1735g (Optional) | |
| Dimension ( WxDxH ) | 400 x 450 x 2200mm |
| Weight | About 50Kg |
| Power | AC220V 50Hz 3A or specified by user |
