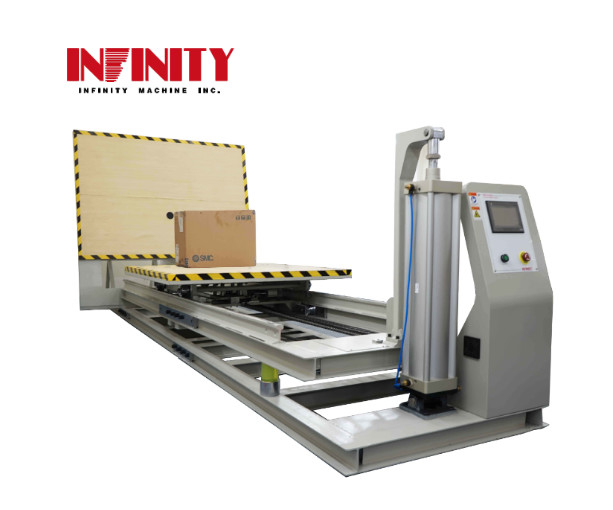

200kg Load Package Carton Incline Impact Testing Machine

200kg Load Package Carton Incline Impact Testing Machine

  • 200kg Load Package Carton Incline Impact Testing Machine
  • 200kg Load Package Carton Incline Impact Testing Machine
200kg Load Package Carton Incline Impact Testing Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: P5200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Slant Impact Testing Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max. Load: 200Kg (or Customized) Warranty: 1 Year
Products: Incline Impact Testing Machine Power: AC220V 50Hz 1KVA
Impact Speed Range: 1.305~2.68m/s Impact Plate Size: W1900×H1400 Mm
Impact Speed Resolution: ≤±5% Inclined Angle: 0~25° Cylinder Adjusting,deviation ±1°
High Light:

GB/T4857.11 Impact Testing Machine

,

GB/T1019 Impact Testing Machine

,

200kg load impact test equipment



Package Carton Incline Impact Testing Machine / Packaging Box Slant Impact Testing Machine



Model: P5200







Standards:



GB/T 4857.11-2005,GB/T1019.2008,ISTA 1A



Feature:



Can locate motor tackle flexible, easy to get needed speed changing value;

Low tackle height, good for specimen installation;

Can adjust the plane to horizontal, easy to fix the specimen;

Can remote control the machine, make sure user’s security;

Fix the machine onto the floor, easy installation and operation;

Impact plane can fix a impact block, height adjustable;

Adopt touchable panel to control.



Specification:



Products Package Carton Bevel Impact Testing Machine
 Max. load  200Kg (or customized)
 Specimen max. dimension  L1400xW1400xH2000mm
 Angle between impact plane and orbit  plane  90°±1°
 Max. slide space  2000mm (or customized)
 Impact speed range  1.305~2.68m/s
 Impact plate size  W2000×H2200 mm
 Impact speed resolution  ≤±5%
 Inclined angle  0~25° cylinder adjusting,deviation ±1°
 Controller  LCD panel
 Power supply  Three phase 380V,50/60Hz or specified by user
 Working condition  Temperature: 0~45℃,humidity ≤85% (Non-condensate)
 Machine dimension  L4600×W2200×H2600mm





Application:



One of the most utilized pieces of shock test equipment in package testing is Package Carton Incline Impact Tester Machine or Packaging Box Slant Impact Tester Machine. Packaging carton slope impact test machine evaluates the ability of the packaging system to withstand sudden horizontal impacts or crushing forces. Real world examples include a packaged product sitting in the back of a truck abruptly coming to a quick stop, or a forklift driver picking up a palletized load on-the-fly.

Utilizing a tilted test carriage, the machine uses gravity to propel the test sample to a pre-determined speed before impacting a massive, flat, steel wall. For package testing, the test sample could be Less-Than-Truckload (LTL) or a Unitized Load. Although the test is relatively simple, the results of testing are valuable, especially for high-value and/or heavy products. The number of orientations and axes is prescribed by the test protocol.



200kg Load Package Carton Incline Impact Testing Machine 0



200kg Load Package Carton Incline Impact Testing Machine 1



200kg Load Package Carton Incline Impact Testing Machine 2



200kg Load Package Carton Incline Impact Testing Machine 3
