| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8401A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 10KN, 20KN, 50KN | Test Space: | 1000x1000x1200mm |
|---|---|---|---|
| Dimension: | 1950x1200x2000mm | Weight: | 1550kg |
| Product Name: | Package Free Fall Drop Tester | Maximum Load: | 200/300kg |
| Dropping Height Range (mm): | 0~1000/1200/1500mm | Machine Weight (kg): | 2400/2800/3400 |
| Highlight: | packaging testing equipments,packaging testing instruments |
||

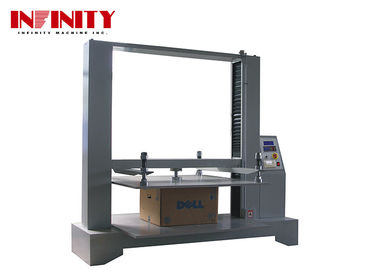

ASTM D642 Box Compression & Stacking Testing Equipment
Model: RS-8401A
Test standards:
GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.
Features:
High stability: Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.
High precision: adopt highly precise explosion-proof loadcell, repeat tolerance: ±0.01%F.S.
Professional control software: pressure holding, load setting, deformation setting, time setting. It can perfectly satisfy the compression resistance and stacking test.
Specification:
| Model | RS-8401A |
| Capacity (optional) | 20KN 2T |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| Load resolution | 1/25,000 |
| Load accuracy | ±1% |
| Load magnifying rate | stepless |
| Test space | 1000x1000x1200mm |
| Test speed | 5~100mm/min |
| Stroke resolution | 0.001mm |
| Software | Microcomputer control |
| Motor | AC motor |
| Dimension (WxDxH) | 1950x1200x2000mm |
| Weight | 1550kg |
| Power supply | AC220V 5A or specified by user |
Package:
