Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m

Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m

Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m
Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m
Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8019
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Measure Range: 10-1000N.m Relative Humidity: ≤80%
Measure Angle: 0-100,000° External Dimensions: 1500×420×1250mm
Environment Temperature: 10℃~40℃ Dimensions Of Clamp Sample: ¢6-¢32mm
Color: As Grey Showed In Picture Power Supply: AC 220V 50 Hz
Max. Capacity: 1000N.m
High Light:

utm universal testing machine

,

computerized universal testing machine

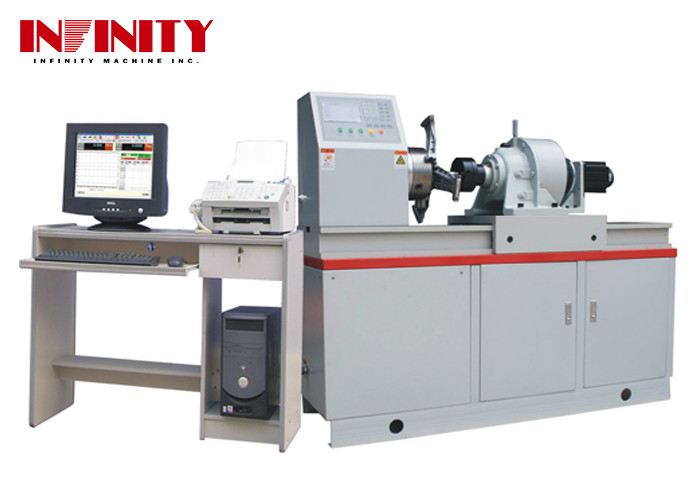

Electrical Terminal Plastic Shell Universal Tensile Machine For Lab Use (RS-8019)



Purpose:



This device is designed for torsion testing of metal and non-metal materials with precise torsion and torsion Angle control. At the same time, it can also realize the torsion test of the parts through the accessories. In microcomputer control mode, with small Angle measuring equipment, accurate torsional elastic modulus (shear modulus G), proportional stress (TP) and other test data can be obtained. This equipment is widely used in quality inspection units, universities and scientific research institutes and industrial and mining enterprises, is an indispensable testing equipment.


The equipment adopts horizontal steel structure, and the appearance is made of high-quality steel plate with high spray cover plate, which makes it have strong and durable characteristics. The drive system uses reliable components and the operating noise is less than 60dB, ensuring a comfortable operating environment. In addition, the drive loading system is controlled by Panasonic servo system, which ensures the stability and reliability of the system. Torque measurement adopts high-precision torque sensor and Angle measurement adopts imported high-precision photoelectric encoder to ensure the accuracy and reliability of test data. These characteristics make the device ideal for a wide range of applications in materials research and engineering laboratories.



Specification:



 Max. load  1000N.m
 Relative error  ±1%
 Measurement range of torque  10-1000N.m
 Measurement range of torque angle  0°-100,000°
 Relative error of torque angle  ±1%
 Speed  0.2-1000°/min, stepless speed regulating
 Max. distance between chucks  550mm
 Dimensions of clamp sample  ¢6-¢32mm
 External dimensions  1500×420×1250mm
 Safety protection  overloading protection and overflow, overpressure  and overheat protection of electronic control system
 Power  single phase 0.75Kw
 Weight  about 550kg
 Power supply  AC220V 50 Hz
 Environment temperature  10℃~40℃
 Relative humidity  ≤80%



Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m 0

Configurations:



A. Host testing machine:

1. 1000 N.m host 1 set

2. Torque sensor 1 pc

3. High-accuracy planet reduction box 1 set

4. AC servo motor and servo system (Japanese Panasonic) 1 set

5. Loading hand wheel 1 pair



B. Control system of testing machine:

    Control system with liquid crystal display (as figure 2) 1 set

    Features: it can realize host operation independent from computer to avoid affecting normal test due to computer virus and other factors.



C. Torsion clamp of testing machine 1 set (standard configuration)



D. Microcomputer configuration of testing machine:

1. One Lenovo computer 1 set (Dikaryon 1.6G/ RAM 1G/ HDD 160G/ DVD/ 17” LC/ Lenovo attached legal XP system)

2. One HP A4 color ink jet printer 1 set

3. Professional test software in Chinese under Windows XP platform 1 set



Our Show Room:



Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m 1

Support and Services:

Technical Support and Services

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



Packing and Shipping:

Packaging and Shipping

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.

Electrical Terminal Plastic Shell Universal Tensile Testing Machine For Lab 10℃~40℃ 10-1000N.m 2



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
