    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-8010 & RS-8010A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Capacity: 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN Stroke: 650mm Or 1000mm
    Effective Width: 130mm Software: Standard Software
    Motor: AC Servo Motor Transmission Rod: High Accuracy Ball Screw
    Dimension: 500x600x1280mm Or 500x600x1550mm Power Supply: AC220V 10A Or Specified By User
    High Light:

    utm universal testing machine

    ,

    universal test equipment

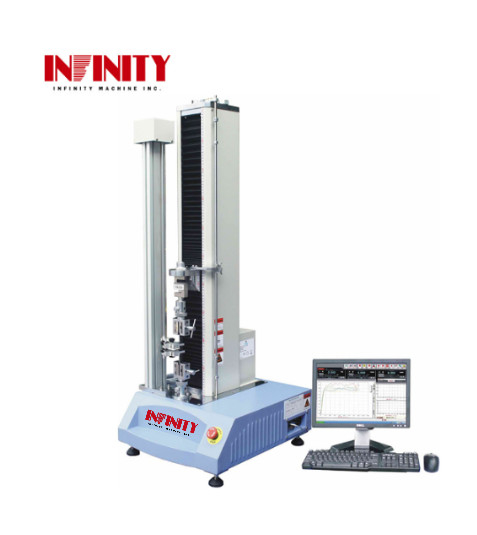

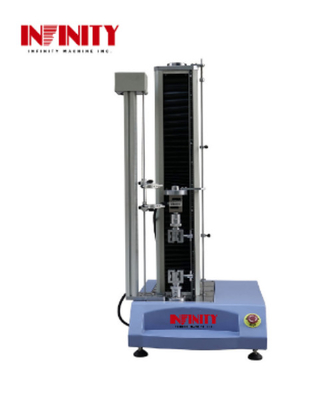

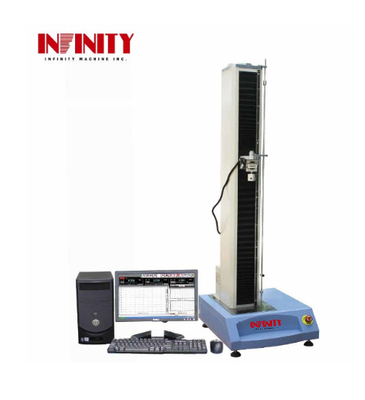

    AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment



    Model: RS-8010 & RS-8010A



    Purpose:



    This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength, fatigue etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, non-woven fabrics, textile, tape, polyfoam, waterproof material, electric wire, electric cable, etc., which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C.), Physical inspection, Mechanics research and material development.

    Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle.

    Can record and memorize the whole testing data.



    Typical applications:



    Rubber tape peeling test at 90 / 180 °

    Rubber / plastic tensile test

    Plastic bending test

    Wire / sheet tensile / bending test

    Fabric tearing test

    Drink package compression / bursting test



    Specification:



     Model  RS-8010  RS-8010A
     Purpose

     Test room for precision test,

     control by computer

     Used for material repeated

     test & retention test

     Capacity (optional)  50N,100N,200N,500N,200N, 1KN, 2KN, 5KN
     Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
     Load resolution  1/500,000
     Load accuracy  ±0.25%
     Stroke (exclude the grips)  650mm or 1000mm (optional)
     Effective width  130mm
     Test speed  0.001~500mm/min
     Load range  rangless
     Speed accuracy  ±0.5%
     Stroke resolution  0.001mm
     Motor  AC servo Motor
     Software  Standard software  Standard Software
     Transmission rod  High accuracy ball screw

     Main unit dimension

     (WxDxH)

     500x600x1280mm(stroke at 650mm) or 500x600x1550mm(stroke at  1000mm)

     Main unit weight  About 140Kg
     Power supply  AC220V 10A or specified by user



    Standards:



     ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A-  Single-Coated Tapes at 180° Angle)

    ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method F-Single Coated Tapes at 90° Angle)

    ASTM D1894-06 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting



    Features:



    High accuracy:

    Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



    High performance:

    Automatic breaking identification, automatically return, units are selectable.



    Multi-function:

    Can coordinate with different grips, the testing of tensile, compression, bending, shearing, tearing, peeling, etc can be done.



    Software control:



    Professional software control Tensile testing curve.



    AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment 0



    Professional software control Tape peeling testing curve.



    AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment 1

    AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment 2AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment 3AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment 4

    5KN Electronic Universal Testing Machine

    5KN lectronic Universal Testing Machine
