| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8006A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 50N, 100N, 200N, 500N | Stroke: | 150mm |
|---|---|---|---|
| Effective Width: | 130mm | Unit: | N, Kgf, Lbf |
| Test Speed: | 10~150mm/min | Weight: | 19Kg |
| Dimension: | 320x300x590mm | Power Supply: | AC220V 3A Or Specified By User |
| High Light: | utm universal testing machine,universal test equipment |
||

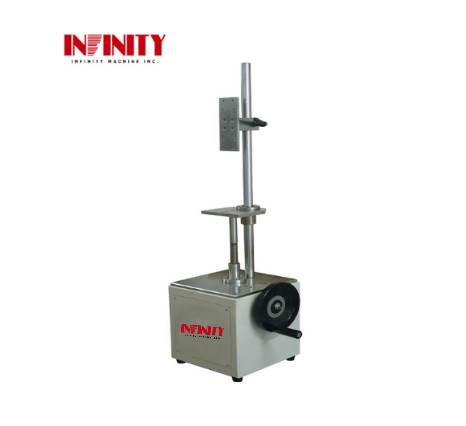

UTM Manual Type Electrical Terminal Bursting Strength Testing Machine
Model: RS-8006A
Typical applications:
UTM Manual Type Electrical Terminal Bursting Strength Testing Machine can be used for below tests:
Electrical terminal tensile test
Small plastic shell of electrical parts press resistance test
Drink package bursting test
This is a multifunctional test device that can be used for tensile test of electrical terminals, voltage test of small plastic shell electrical components, and bursting test of beverage packaging. Whether it is the tensile properties of electrical connectors, the pressure resistance of plastic shells, or even the safety performance of beverage packaging, it can be accurately and reliably tested.
Specification:
| Model | RS-8006A |
| Capacity (optional) | 50N, 100N, 200N, 500N |
| Unit (switchable) | N, Kgf, Lbf |
| Stroke (exclude the grips) | 150mm |
| Effective width | 130mm |
| Test speed | 10~150mm/min |
| Main unit dimension (WxDxH) | 320x300x590mm |
| Main unit weight | 19Kg |
| Power supply | AC220V 3A or specified by user |
Meters for Destop Testing Mchine:
Japanese SHIMPO data display instrument
Japanese ALGOL data display instrument
Japanese ALGOL mechanical instrument
Our Show Room:
Support and Services:
Technical Support and Services
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
