| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE |
| Model Number: | RS-8000GDW |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 500N，1KN，2KN，5KN，10KN，20KN，50KN，100KN, 200KN Optional | Unit Switch: | N，KN，Kgf，Lbf |
|---|---|---|---|
| Resolution: | 1/500,000 | Load Accuracy: | ±0.25%F.S |
| Effective Testing Range: | 0.25%~100%F.S | Effective Stroke: | 400，500，750mm Optional |
| Effective Width: | 600mm | Dimension: | 950×800×2400mm, Or 1100x2000x2400mm |
| Weight: | 295kg, Or 350kg | Power: | AC220V,12A, AC220V 30A Or Specified By User |
| High Light: | utm universal testing machine,computerized universal testing machine,SUS304 Tensile Testing Machine |
||

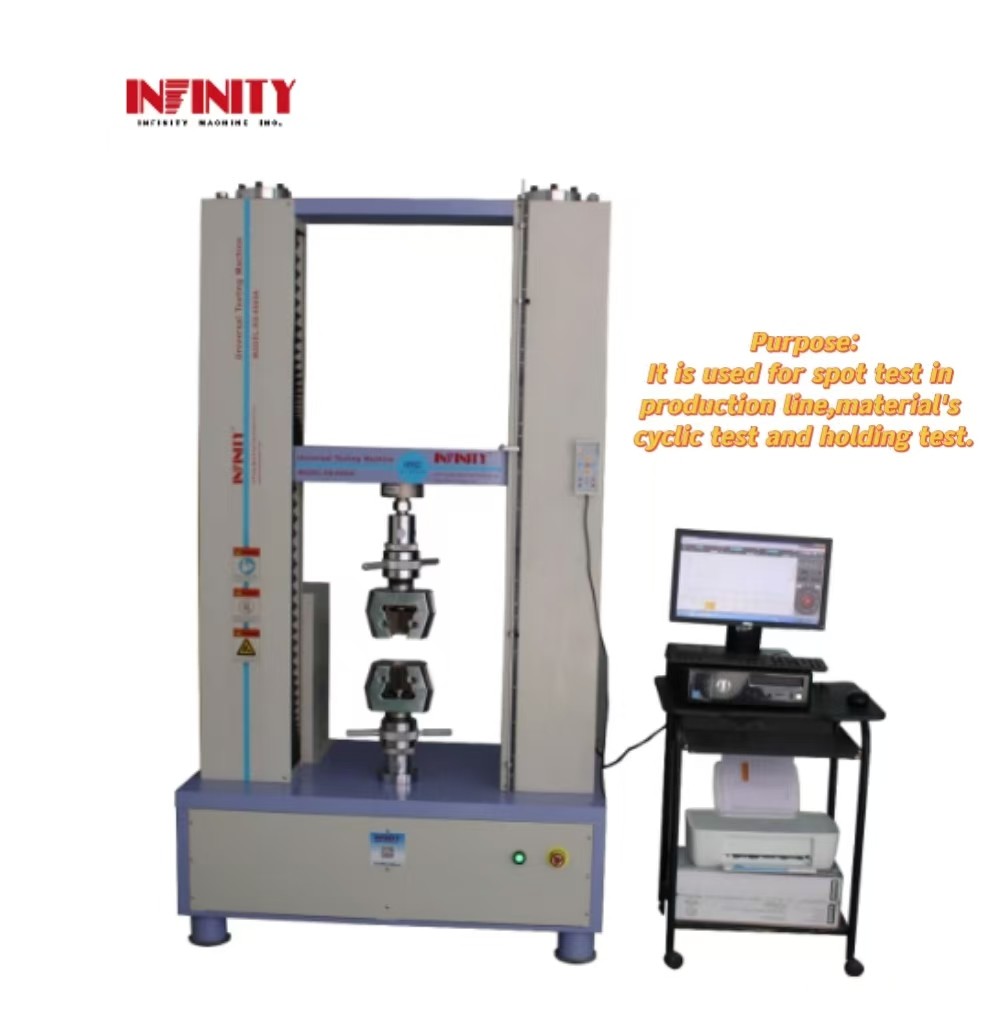

High And Low Temperature Tensile Testing Machine In UTM 20KN / 50KN Capacity
Model: RS-8000GDW
Test standard:
GB/T4338-1995 ISO783:1989 Metal high temperature tensile test
GB/T13239-2006 ISO15579:2000 Metal low temperature tensile test
GB/T228-2002 ISO6892:1998 Metal room temperature tensile test
Features:
High accuracy:
Adopt Japan PANASONIC AC servo motor to driving the Taiwan ABBA high precise ball screw working, with USA TRANCELL high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & stroke accuracy reach to 0.001mm;

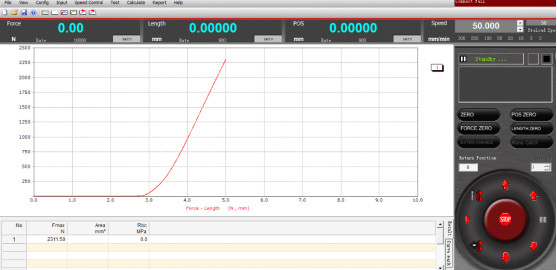

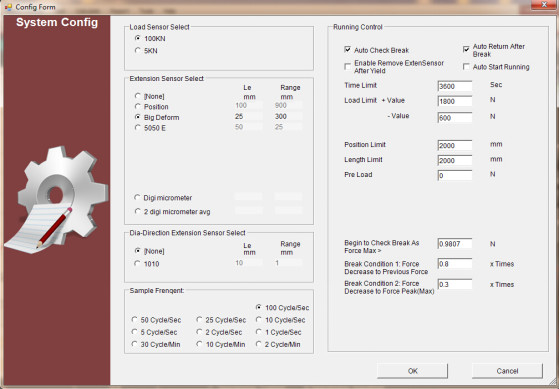

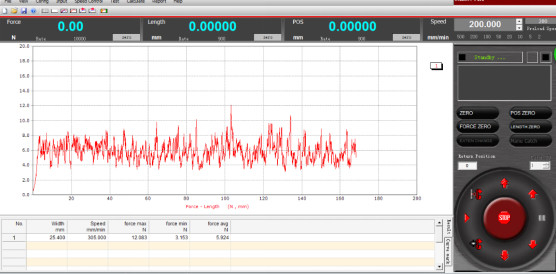

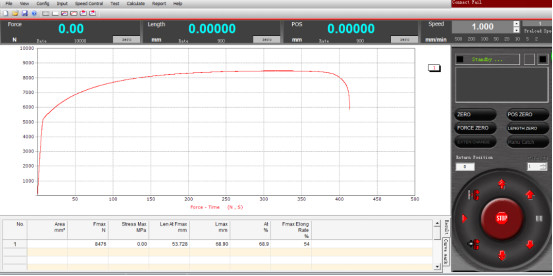

High performance:
Automatic broken identification, automatically return,
point collected function, units switching and languages
can be selected: Chinese/English. Can analysis many
curve: load-stroke, load-time, stroke-time, stress-strain,
strain-time, stress-time;
Specification:
| Model | RS-8000-GW | RS-8000-DW | RS-8000-CDW | RS-8000-GDW | RS-8000-CGDW | |
| Capacity | 500N,1kN,2kN,5kN,10kN,20kN,50kN can option | |||||
| Resolution | 1/500,000 | |||||
| Load accuracy | ±0.25%F.S | |||||
| Test speed range | 0.001~500mm/min or 1~1000mm/min | |||||
| Temperature range | Room tem. ~ 250℃ | Room temp. ~ -40℃ | Room temp. ~ -70℃ | -40 ~ 150℃ | -70 ~ 200℃ | |
| Inner chamber dimension | W300×D350×600mm | |||||
| Temperature control accuracy | ±2℃ | |||||
| Min. temperature value | 0.1℃ | |||||
| Cooling recycle system | 90W motor, Stainless steel lengthen roller, multi-wing fan blade | |||||
| Heater | 1000W×2 fin-style radiator tube stainless steel heater | |||||
| Thermal insulation material | high temperature chamber: glass fiber; low temperature chamber, hard foam. | |||||
| Coolants | low temperature chamber, environmental coolants | |||||
| Chamber material | inner side will be SUS304# mirror, the outside will be cold steel plate with painting | |||||
| Temperature control mode | P.I.D self-adjusting mode and SSR control | |||||
| Temperature controller | button input, LED digital display output | |||||
| View window | double layer view window(180×220mm) | |||||
| Dimension WxDxH (mm) | 950×800×2400 | 1100x2000x2400 | ||||
| Weight | 295kg | 350kg | ||||
| Power | AC220V,12A | 1∮ AC220V 30A or specified by user | ||||
Purpose:
Apply for tensile, compress, bending, peel, tearing, peeling, bursting, fatigue test on metal rod, metal plate, rubber, PU, leather, plastic, foam, sponge, water-proof material, cable, wire, fabric, nettle, non-woven, etc..
Metal high temperature tensile test
Metal low temperature tensile test
Rubber high & low temperature tensile test
Other material high & low temperature tensile test
Picture:
