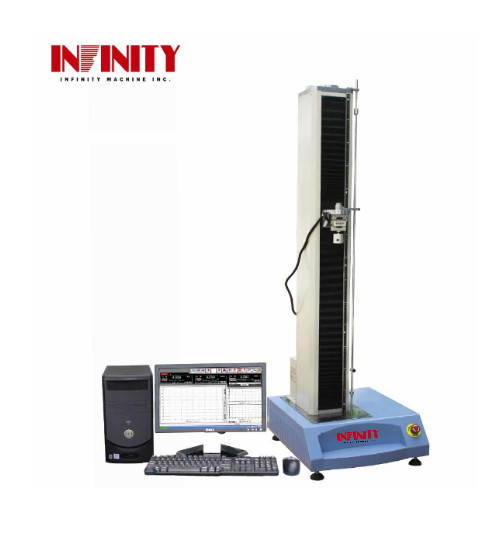

Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing

Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing

Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing
Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing
Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8010 / 8010A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Purpose: Test Room For Precision Test, Control By Computer Capacity (optional): 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN
Unit (switchable): N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2 Load Resolution: 1/500,000
Load Accuracy: ±0.25% Stroke (exclude The Grips): 650mm Or 1000mm (optional)
Dimension: 500x600x1280mm Or 500x600x1550mm Power Supply: AC220V 10A Or Specified By User
Highlight:

utm universal testing machine

,

universal test equipment



Servo Control Tensile Testing Machine For Material Circulation And Retention Testing



Model: RS-8010 / 8010A



Features:



High accuracy:

Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



High performance:

Automatic breaking identification, automatically return, units are selectable.



Multi-function:

Can coordinate with different grips, the testing of tensile, compression, bending, shearing, tearing, peeling, etc can be done.



Typical applications:



1. Rubber tape peeling test at 90 / 180 °

2. Rubber / plastic tensile test

3. Plastic bending test

4. Wire / sheet tensile / bending test

5. Fabric tearing test

6. Drink package compression / bursting test



Purpose:



This test machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable & thread, textile, net rope, non-woven fabrics ect nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do stretching, compression, bending, peeling, cutting, tearing tests.



Computer control style RS-8010( It is used for laboratory precise test, can do many data analyse and printing special sports), special control style RS-8010A (It is used for materials to do retentiveness test ect).



Standards:



ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A- Single-Coated Tapes at 180° Angle)



ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method F-Single Coated Tapes at 90° Angle)



ASTM D1894-06 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting



Specification:



 Model  RS-8010  RS-8010A
 Purpose

 Test room for precision test,

 control by computer

 Used for material repeated

 test & retention test

 Capacity (optional)  50N,100N,200N,500N,200N, 1KN, 2KN, 5KN
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
 Load resolution  1/500,000
 Load accuracy  ±0.25%
 Stroke (exclude the grips)  650mm or 1000mm (optional)
 Effective width  130mm
 Test speed  0.001~500mm/min
 Load range  rangless
 Speed accuracy  ±0.5%
 Stroke resolution  0.001mm
 Motor  AC servo Motor
 Software  Standard software  Standard Software
 Transmission rod  High accuracy ball screw

 Main unit dimension

 (WxDxH)

 500x600x1280mm(stroke at 650mm)

 or 500x600x1550mm(stroke at 1000mm)

 Main unit weight  About 140Kg
 Power supply  AC220V 10A or specified by user



Pictures:



Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing 0

Fixture:



Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing 1



Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing 2



Packaging:



Servo Control Utm Tensile Testing Machine For Material Circulation And Retention Testing 3
