| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8000MC |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Power Supply: | AC220V 10A Or Specified By User | Unit Switch: | N，KN，Kgf，Lbf |
|---|---|---|---|
| Resolution: | 1/500,000 | Load Accuracy: | ±0.25%F.S |
| Capacity: | 20kN(2000kgf),50kN(5000kgf) Optional | Effective Test Range: | 0.25%~100%F.S |
| Effective Tensile Space: | 1100mm | Effective Width: | 400mm |
| Highlight: | utm universal testing machine,universal test equipment |
||
20KN - 50 KN Computer Control Tensile Testing Machine In UTM For Wood
Model: RS-8000MC
Application:
Wood, Tape, Automotive, ceramic, composite material, construction, medical/food equipment, metal, paper, plastic, rubber, textile, communication, etc.
Universal material testing machine is also called universal tension machine or electronic tension machine, independent servo loading system, high-precision broadband electro-hydraulic servo valve, to ensure the system of high precision and efficiency, low noise, fast response, the use of independent hydraulic clamping system, to ensure that the system of low noise stable operation, and the test process sample firmly clamping, do not slip.
Universal material testing machine is the use of microcomputer control full digital broadband electro-hydraulic servo valve, drive precision hydraulic cylinder, microcomputer control system to test force, displacement, deformation of a variety of modes of automatic control, complete the tensile, compression, bending test of the sample, in accordance with the national standard GB/T228-2010 "Metal material room temperature tensile test method" requirements and other standards.
Standard:
GB/T 16491-2008, GB2611-2007, JB6146-2007, JF1246-2010, GB/T17657-1999
Feature:
1. High accuracy: Adopt Japan Panasonic AC servo motor, Taiwan ABBA high precision seamless ball screw driving, with Japan NTS high precision
LOADCELL, load resolution can be ±0.25% and stroke resolution can be 0.001mm;
2. High performance: Judge sample broken and return by itself, unit and language can be switched; can analysis various curve: load-stroke curve,
load-time curve, stroke-time curve, stress-strain curve, stress-time curve, etc.
3. Professional report analysis: Crystal Reports10.0, can calculate strength, automatically and export report by Excel,PDF,HTML format.
Purpose:
This machine apply for wood, engineered wood, veneer, plywood do MOR (modulus of rupture) & MOE (modulus of elasticity), surface soundness strength, Internal bond strength, screw/nail pull out test. Meanwhile, can do tensile, compression, peeling, tearing tests for other material.
Specification:
| Capacity | 20kN(2000kgf),50kN(5000kgf) optional |
| Unit switch | N,KN,Kgf,Lbf |
| Resolution | 1/500,000 |
| load accuracy | ±0.25%F.S |
| Effective test range | 0.25%~100%F.S |
| Effective tensile space | 1100mm |
| Effective width | 400mm |
| Test speed range | 0.001~500mm/min |
| Deformation accuracy | Less than 0.5% of displayed value |
| Specimen fixture device | Mechanical limit |
| Specimen Lifting device | quick/slow speed control automatically, can jogging control |
| Returning function | manual or auto return function, auto return once specimen broken |
| Overload protection | Overload 10%,machine will cutoff to protection |
| Main body dimension | 830x670x1940mm |
| Main body weight | About 245kg |

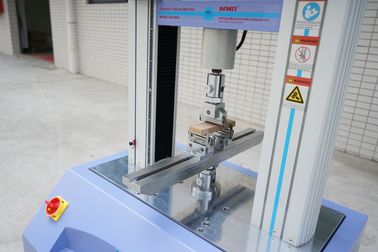

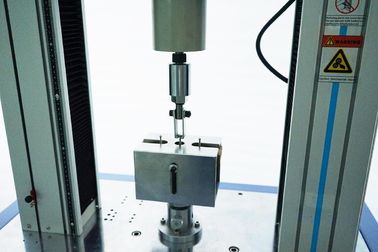

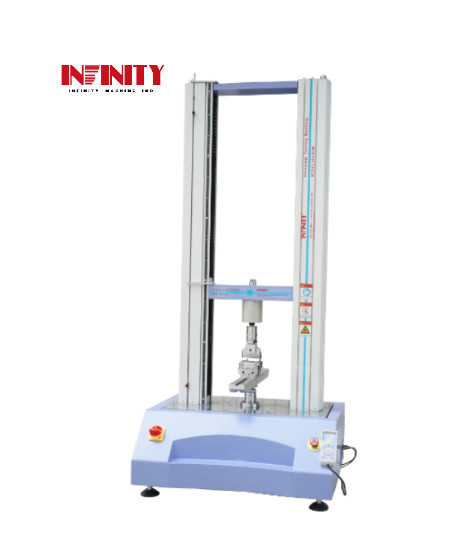

Picture:
Support and Services:
Technical Support and Services
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
