| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE |
| Model Number: | RS-8000A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Transmission Rod: | High Accuracy Ball Screw | Motor: | AC Servo Motor |
|---|---|---|---|
| Test Speed: | 0.001~300mm/min | Capacity (optional): | 100KN, 200KN, 300KN |
| Unit (switchable): | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 | Speed Accuracy: | ±0.5% |
| Dimension: | 1220x720x2200mm | Power Supply: | AC220V 15A Or Specified By User |
| High Light: | computerized universal testing machine,universal test equipment |
||

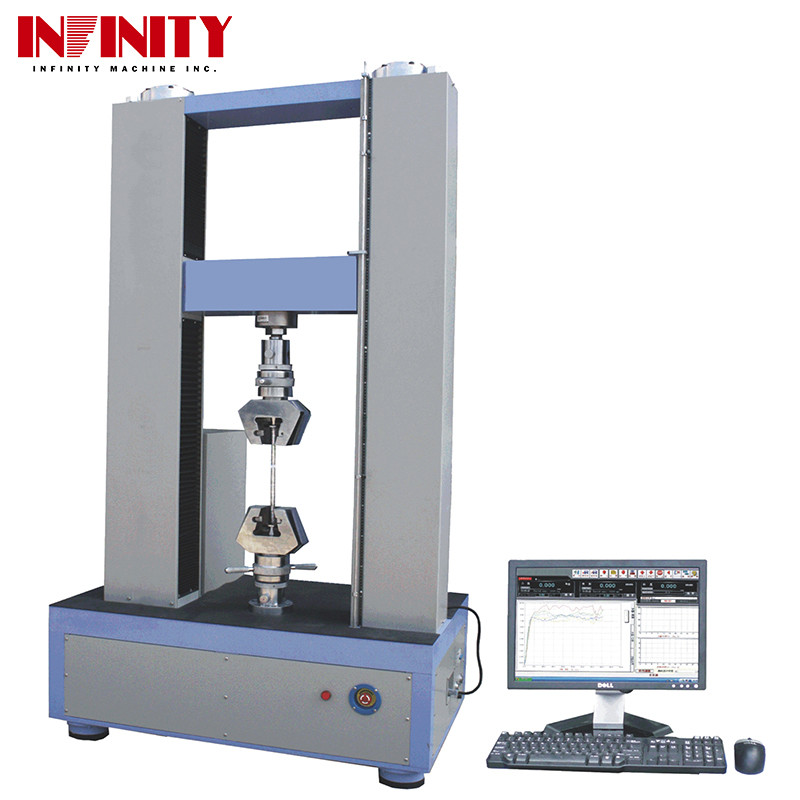

Maximum 300KN Tensile Strength Testing Machine For Material Development With Servo Motor
Model: RS-8000A
Features:
High accuracy:
Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High performance:
Automatic broken identification, automatically return, point collected by hand, units switching and 9 kinds of languages can be selected: Chinese, English, Japanese, Germany, French, Russian, Spanish and Portuguese.
Superior software program:
Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.
Multi-function:
Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.
Special report can be printed:
Applications:
Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.
Specification:
| Model | RS-8000A |
| Capacity (optional) | 100KN, 200KN, 300KN |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
| Load resolution | 1/500,000 |
| Load accuracy | ±0.25% |
| Load range | Rangless |
| Stroke (exclude the grips) | 650mm, 800mm (optional) |
| Effective width | 400mm , 600mm (optional) |
| Test speed | 0.001~300mm/min |
| Speed accuracy | ±0.5% |
| Displacement resolution | 0.001mm |
| Software | Closed-loop control software |
| Motor | AC servo Motor |
| Transmission rod | High accuracy ball screw |
| Main unit dimension (WxDxH) | 1220x720x2200mm |
| Main unit weight | 1500 Kg |
| Power Supply | AC220V 15A or specified by user |
Purpose:
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.
Computer control style RS-8000A ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).
Packaging:
100Kn 200Kn 300Kn Rebar Metal Plastic Textile Tape Universal Tensile Testing Machine
100Kn 200Kn 300Kn Rebar Metal Plastic Textile Tape Universal Tensile Testing Machine
