|Place of Origin:||Made in China|
|Brand Name:||Infinity Machine|
|Minimum Order Quantity:||1|
|Packaging Details:||Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per month|
|Power Supply50KN:||AC220V 10A Or Specified By User||Dimension:||830x670x1940mm|
|Weight:||345 Kg||Capacity (optional):||100N, 200N, 500N, 1, 2, 5, 10, 20, 30, 50KN|
|Load Resolution:||1/500,000||Load Accuracy:||±0.25%|
|Motor:||AC Servo Motor||Software:||Standard Control Software|
compression test equipment,
digital compression testing machine

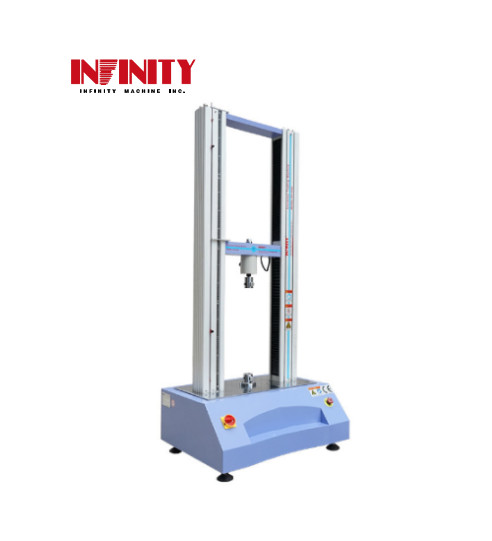

Can Record And Memorize The Whole Testing Data Tensile Testing Machine In Testing Equipment
Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.
|Capacity (optional)||100N, 200N, 500N, 1, 2, 5, 10, 20, 50KN|
|Unit (switchable)||N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2|
|Stroke (exclude the grips)||800mm,1000mm (optional)|
|Effective width||400mm, 500mm (optional)|
|Software||Closed-loop control software|
|Motor||AC servo Motor|
|Transmission rod||High accuracy ball screw|
|Main unit dimension (WxDxH)||830x670x1940mm|
|Main unit weight||345 Kg|
|Power Supply||AC220V 10A or specified by user|
Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
Language of software: English
Superior software program:
Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.
Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.
Computer control style RS-8000 ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).
