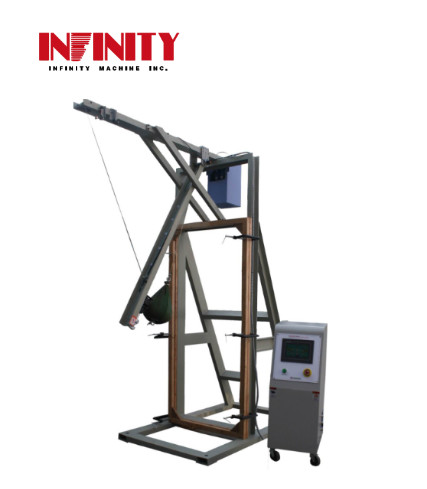

GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass

GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass

GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass
GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass
GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8220SD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Material: Iron Standard: ANSI Z97.1 , ISO/DISI2542 1~12543-6:1997 , AS/NZS2208:1996 , GB/T9962-1999
Weight: 700 Kg Colour: White
The Canister Ball Dia.: ∮2.5mm Specimen Size: H1930xW864mm
Dimension: 1200x1800x2200mm Warranty: 1 Year
Highlight:

impact resistance tester

,

ball drop machine



GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass





Application:



Shot Bag Impact Apparatus is built to meet GB9963,GB/T9963,ECE R43 and used to shot bag impact testing or pendulum test for glass in building



Standard:



ANSI Z97.1,ISO/DIS12542 1~12543-6:1997,AS/NZS2208:1996,GB/T9962-1999



Specification:



 Model  RS-8220SD
 Impact way  Pendulum bob
 Swing arm Radius  1530mm
 Impact height  300~1200mm
 Impact canister ’s weight  45kg±0.1kg
 The canister ball dia.  ∮2.5mm
 Specimen size  H1930xW864mm

 Inner size of Wooden Fixing  frame

 H1911xW845mm The part which contact the specimen

 is the rubber with hardness Shore 50 degree
 Dimension(WxDxH)  1200x1800x2200mm
 Weight  About 700kg
 Power  1∮ AC220V 3A or specified by user

GB / T9962-1999 Shot - Bag Impact Testing Machine For Laminated Glass 0
