Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine

Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine

  • Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine
Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Compressing Force Setting: 100~1200N (adjust Continuously) Test Stroke (max): 100mm
Test Speed: 10~30 Times/min Dimension: 530x470x960mm
Weight: 95kg Power Supply: AC220V 50Hz 5A Or Specified By User
Warranty: 1 Year Coloer: Blue
High Light:

universal test machine

,

compression test equipment



Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine





Application:



Apply for soft compressing testing for mobile phone remote controls, MP3, CD, electronic dictionary and so on. To estimate the anti-pressing function of mobile phone LCD, PCB and so on.



Features:



Adopt high elasticity rubber and jeans for compressing the goods, to simulate the real using condition.

Adopt Japan SMC precision pneumatic component, double station Adopt Mitsubishi LCD touching screen+PLC as program control.

Standard force meter can be optional.



Specification:



 Model  RS-8500(economic)
 Compressing force setting  100~1200N (adjust continuously)
 Test stroke (max)  100mm
 Test speed  10~30 times/min
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  530x470x960mm
 Weight  95kg
 Power supply  AC220V 50Hz 5A or specified by user



Picture:

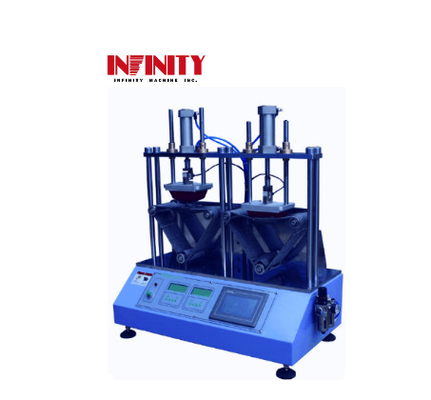

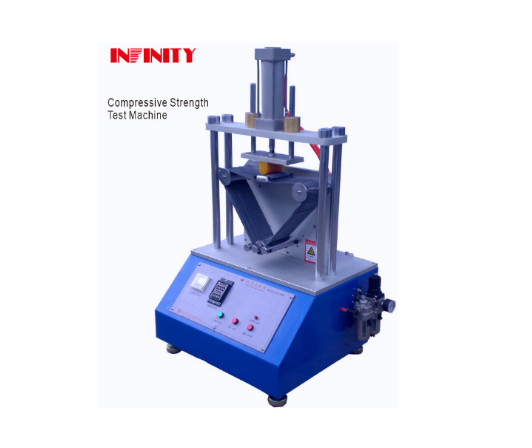

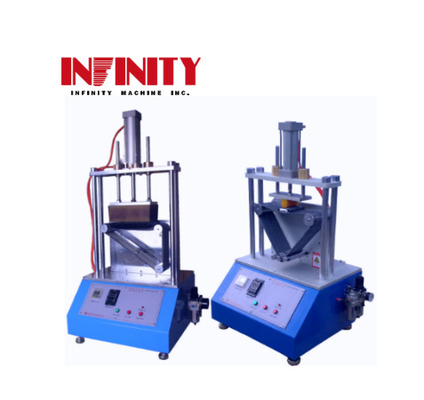

Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine 0



Mobile Phone Soft Compressive Strength Test Machine , 100~1200n Universal Test Machine 1
