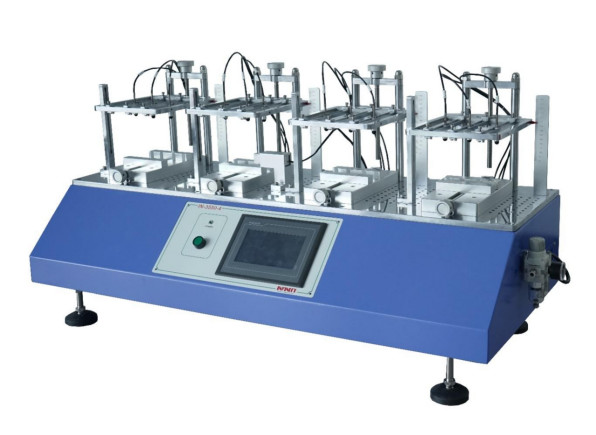

Name: Pneumatic key life test machine Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor
Brand: Infinity Machine International Inc.
SKU: IK1204 (4 Stations)
Price: 50,050.00 USD
Availability: InStock

Home Products Keyboard Button Tester

Pneumatic key life test machine Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor

Product Details:

Place of Origin:	Made in China
Brand Name:	Infinity Machine
Certification:	CE
Model Number:	IK1204 (4 Stations)

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case with operation manual and video inside.
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Test Amount:	4 Pcs	Test Load:	80gf~500gf Or 200gf~1000gf (or Specified)
Test Speed:	10~60 Cycles /min	Counting Setting:	0~999,999 Adjustable
Dimension:	1100x400x570mm	Weight:	About 110kg
Air Source:	≧0.6MPa	Power Supply:	AC220V 3A Or Specified By User
Highlight:	keyboard key tester , button pull test machine

Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor

Pneumatic key life test machine (4 Stations)

Purpose:

Apply for keystoke ( buttons) life-time test for mobile phone, telephone, car entertainment devices, PDA, bluetooth/ earphone, Automobile TV remote controller, MP3/CD ,the other electronic products and so on.

Features:

The modes of sorting and same time clicking test can shift, and can simulate the real clicking condition for the key-clicking;
Adopt Japan SMC precise pneumatic component, hitting-strength is adjustable and long lifespan.
Adopt Mitsubishi touch LCD and PLC program controller.
Can test four sets mobile phone or other devices in the same time, any directions of the grips is adjustable, can satisfy to test keystoke of different kinds of products.
Can satisfy the testing of backside and front side of mobile phone, with hitting strength calibrating device which can response the anti-clicking ability of keystoke.

Specification:

Model	IK1204
Testing cylinders with tips	8 pcs
Pressing force	If using Ø16 cylinder: force will be 5~50N, Ø10 cylinder: force will be 2~25N
Air cylinder stroke	15mm
Testing speed	10~150 cycles /min
Counting setting	0~999,999 adjustable
Dimension (WxDxH)	1100x550x510mm
Weight	About 105kg
Air source	≧0.5MPa
Power supply	AC220V 5A or specified by user

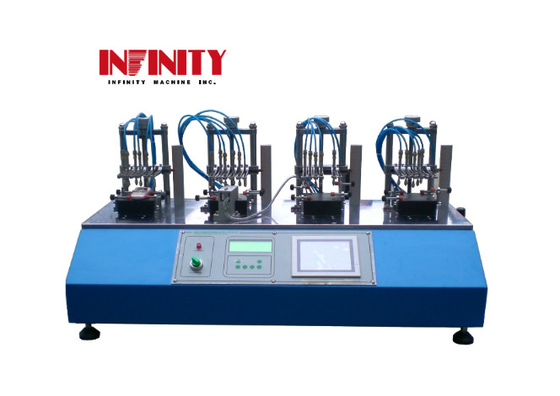

Pneumatic key life test machine Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor 0

For more details , pls contact with us :

Ms. Sandy Chen
Infinity Machine International Inc.
Mobile/WhatsApp:+86 189 2293 3631
Tel:+86-(0)76987796906
E-mail: sales1@infinity-machine.com
