| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | IN-2000EY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity (optional): | 2000KN(200T) | Testing Force Effective Range: | 40KN~2000KN |
|---|---|---|---|
| Max Moving Speed Of Piston: | 60mm/min | Displacement Measurement Resolution: | 0.01mm |
| Force Accuracy: | ±1% | Warranty: | 1 Year |
| Material: | Steel | Color: | Grey Red |
| Highlight: | hydraulic testing equipment,hydraulic testing machine |
||
Purpose:

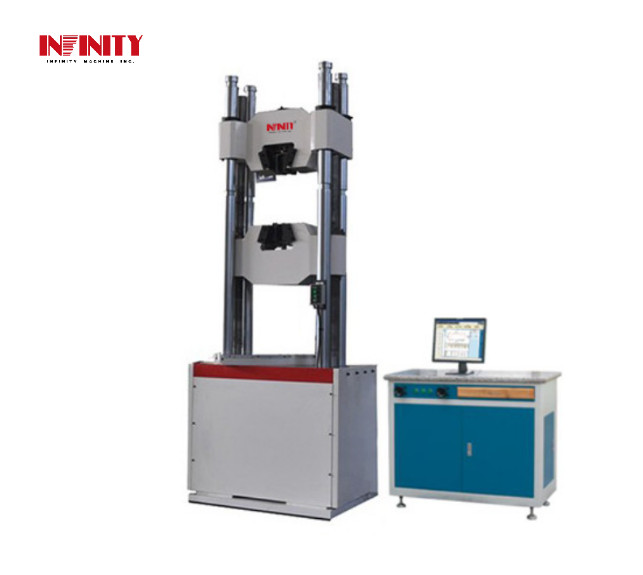

Computer screen display hydraulic UTM mainly adopts four-standard column main machine of underneath-type oil cylinder, used for tensile, compression, bending and shearing test for metal and non-metal materials. It applies to various fields including metallurgy, construction, light industry, aviation, aerospace, material, institutions of higher education and scientific institutions, etc.
Its test operation and data process meet requirements of standard GB228-2002
“Material in room temperature: test method of metal tensile”.
The computer screen shows that the hydraulic universal testing machine adopts the lower cylinder four-standard column host, which can be widely used in the tensile, compression, bending and shear test of metal and non-metal materials.
The equipment is suitable for metallurgy, construction, light industry, aviation, aerospace, materials, institutions of higher learning, research institutes and other fields. Its test operation and data processing meet the requirements of GB228-2002 "Materials at Room temperature: Metal tensile test method" standard to ensure the accuracy and reliability of test results.
In addition, the device is highly flexible and stable, which can meet the test needs of different fields. Through advanced technology and design, the hydraulic universal testing machine can accurately carry out various tests, and provide reliable data support for the research and evaluation of material properties. Whether in industrial production sites or scientific research laboratories, the equipment can provide users with efficient and accurate testing services.
Specification:
| Model | IN-2000EY |
| Capacity | 2000KN (200T) |
| Testing force effective range | 40KN~2000KN |
| Force accuracy | ±1% |
| Deformation measurement |
Gauge length of standard configuration is 50mm, maximum deformation is 10mm |
| Deformation testing accuracy | ±0.5% |
| Max moving speed of piston | 60mm/min. |
| Displacement measurement resolution | 0.01mm |
| The Max tensile space | 1000mm |
| The Max compression pace | 900mm |
| Flat sample clamping thickness | 0~60mm |
| Flat sample clamping width | 100mm |
| Clamping diameter of Round specimen (mm) | φ15~φ70 |
| Compression plate | 204mmX204mm |
| Support roller space of bending test | 450mm |
| Width of support roller | 160mm |
| Piston stroke | 250mm |
| Diameter of pivot | 50mm |
| Clamping way | Hydraulic clamping |
| Amplifier | Programmable amplifier plug-in mounted inside the PC,automatic zero setting and calibrating |
| Dimension (mm) | Machine: 1400x850x3300; Oil source: 1140x700x930 |
| Weight | About 7500kg |
| Power supply | Three phases AC380V 50Hz or specified by user |
Description Schemes:
The main machine
The main machine adopts underneath type of oil cylinder, tensile space is above the main machine, compression and bending space is between the lower cross beam and working station.
Solid four-standard column and two-lead screw structure design, so the whole machine has strong stability.
Movable cross-beam is designed with unique clearance elimination mechanism, avoiding test error caused by cross-beam stress of B type machine.
There designs a sliding plate of 10mm between jaw and jaw splint, effectively extending service life of jaw splint.
Test space can be divided into three segments for adjustment according to length of specimen, the highest point is suitable for the use of peripheral equipment like high temperature furnace.
Drive system
Lower cross beam lifting adopts hydraulic motor, chain, and lead screw pair drive to realize adjustment of tensile and compression space. No matter in the state of adjusting space or in the test process, it both reaches operation if zero clearance.
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.
Packaging and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
