100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min

100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min

100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min
100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min
100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8010-XY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity (optional): 100N, 200N, 500N, 1kN, 2kN Unit (switchable): N,kN,Kgf,Lbf
Load Cell Accuracy: ±0.01%FS Load Resolution: 1/500,000
Warranty: 1 Year Level Of The Accuracy: ±0.5%
Measurement Accuracy: ±0.5%F.S
High Light:

utm universal testing machine

,

computerized universal testing machine

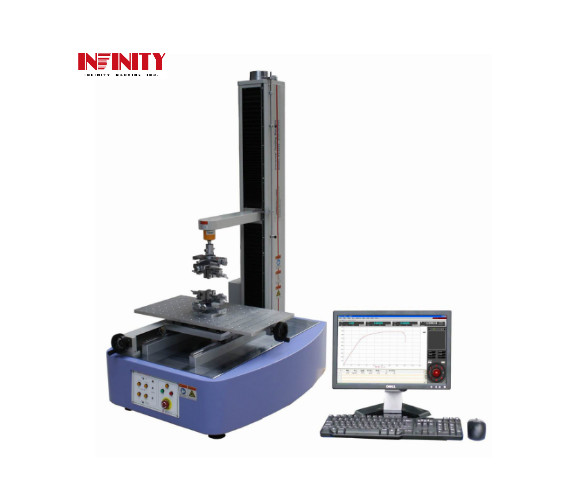

X - Y Axis Universal Testing Machine for The Testing of Tensile

Model:RS-8010XY
100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min 0


Purpose:



This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile, etc., which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C.), Physical inspection, Mechanics research and material development.





 Standard:



GB/T228-2002, GB/T14452-93, ASTM D638-03, ASTM D790-07, GB/T2792, ASTM D3330-04, ASTM D1894-06.



 Specification:




 Capacity (optional)  100N, 200N, 500N, 1kN, 2kN
 Unit (switchable)  N,kN,Kgf,Lbf
 Dynamic system  Panasonic® AC servo motor+ Shimpo® gear reducer+ Mitsubishi® synchronous belt+ TBI® Ball screw
 Load cell accuracy  ±0.01%FS
 Load resolution  1/500,000
 Level of the accuracy  ±0.5%
 Measurement accuracy  ±0.5%F.S
 Effective range  0.2%~100%F.S
 Stroke resolution  0.0001mm
 Stroke measurement accuracy  Less than ±0.5% of the display
 Deformation resolution  0.0001mm
 Deformation measurement accuracy  Less than ±0.5% of the display
 Stroke (exclude the grips)  1000mm
 Effective width  400mm
 Test speed  0.001~500mm/min
 Speed accuracy  ±0.5%
 Deformation measurement (purchasing additional)  large deformation: 10~1000mm, Electronic extensometer:gauge length -25mm, deformation-25mm
 Fixtrue  tensile, compression, peeling force
 X-Y axis mobile test platform  X axis: 0~350mm
 Limiting protection  Mechanical limit
 Overload protection  Over maximum load 10%, machine protection.
 Main unit dimension (WxDxH)  W800*D1080*H1720mm
 Main unit weight  175kg
 Power  AC220V 5A
 Noise  5mm/min 55dB(A) / 500mm/min 68dB(A)



Feature:



High accuracy:

Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell, load accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



High performance:

Automatic broken identification, automatically return, point collected by hand, multi-units switching.



Superior software program:

Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also have many kinds of analysis curve: stress vs strain curve, load vs flexure curve, strength vs deformation curve, strength vs time curve, time vs flexure curve.



Multi-function:

Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, elongation rate etc can be done.



 100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min 1

Support and Services:

Technical Support and Services

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.





Packing and Shipping:

Packaging and Shipping

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.

100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min 2100N-2000N Electronic Universal Tensile Testing Machine Rs-8007c Effective Test speed 0.001~500mm/min 3



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
