| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8000GDW |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity (optional): | 500N,1,2,5,10,20,50kN | Unit (switchable): | N, KN, Kgf, Lbf |
|---|---|---|---|
| Load Resolution: | 1/500,000 | Load Accuracy: | ±0.25%F.S |
| Load Range: | Rangless | Stroke (exclude The Grips): | 400，500，750mm Optional |
| Warranty: | 1 Year | ||
| High Light: | computerized universal testing machine,universal test equipment |
||

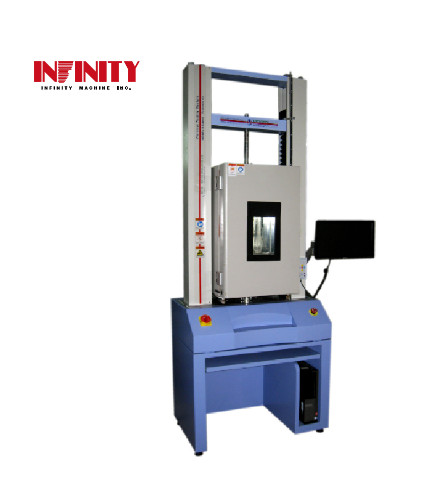

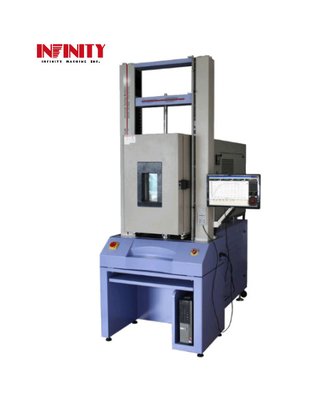

Temperature Universal Tensile Testing Machine for Metal with Servo Motor
Purpose:
Apply for tensile, compress, bending, peel, tearing, peeling, bursting, puncture, fatigue test on metal rod, metal plate, rubber, PU, leather, plastic, foam, sponge, water-proof material, cable, wire, fabric, nettle, non-woven, etc..
metal high temperature tensile test
metal low temperature tensile test
rubber high & low temperature tensile test
other material high & low temperature tensile test
Test standard:
GB/T4338-1995 ISO783:1989 metal high temperature tensile test
GB/T13239-2006 ISO15579:2000 metal low temperature tensile test
GB/T228-2002 ISO6892:1998 metal room temperature tensile test
HG/T 3868-2008 vulcanized rubber high temperature tensile and elongation test
ISO37-2011 vulcanized rubber or thermoplastic rubber tensile stress-strain feature measuring
ASTM D412 vulcanized rubber or thermoplastic rubber tensile test
Machine technical parameter:
| Capacity | 500N,1KN,2KN,5KN,10KN,20KN,50KN,100KN, 200KN optional |
| Unit switch | N,KN,Kgf,Lbf |
| Resolution | 1/500,000 |
| Load accuracy | ±0.25%F.S |
| Effective testing range | 0.25%~100%F.S |
| Effective stroke | 400,500,750mm optional |
| Effective width | 600mm |
| Test speed range | 0.001~1000mm/min |
| Deformation range | large deformation: 10~800mm,small deformation: standard 25mm,deformation: 10mm |
| Deformation accuracy | Less than showing data 0.5% |
| Specimen plate Fixture device | mechanical limit |
| Specimen plate up-down moving device | quick/low speed control automatically, can do point controlling |
| Specimen plate return function | manual or auto return, auto back once broken |
| Overload protection | Over Max. capacity 10%,machine do self protection |
| Main body dimension | W1030x670x1940mm |
| Machine weight | About 245kg |
High-low temperature chamber parameter:
| Model | RS-8000-GW | RS-8000-DW | RS-8000-CDW | RS-8000-GDW | RS-8000-CGDW | |
| Resolution | 1/500,000 | |||||
| Load accuracy | ±0.25%F.S | |||||
| Test speed range | 0.001~500mm/min or 1~1000mm/min | |||||
| Temperature range | Room temp. ~250℃ | Room temp. ~-40℃ | room temp.~-70℃ | -40~150℃ | -70~200℃ | |
| Inner chamber size | W300×D350×600mm | |||||
| Temp. control accuracy | ±2℃ | |||||
| Min. temp. value | 0.1℃ | |||||
| Cooling recycle system | 90W motor, Stainless steel lengthen roller, multi-wing fan blade | |||||
| Heater | 1000W×2 fin-style radiator tube stainless steel heater | |||||
| Thermal insulation material | high temperature chamber: glass fiber; low temperature chamber, hard foam. | |||||
| Coolants | low temperature chamber, environmental coolants | |||||
| Chamber material | inner side will be SUS304# mirror, the outside will be cold steel plate with painting | |||||
| Temp. control mode | P.I.D self-adjusting mode and SSR control | |||||
| Temp. controller | button input, LED digital display output | |||||
| View window | double layer view window(180×220mm) | |||||
| Dimension WxDxH (mm) | 950×800×2400 | 1100x2000x2400 | ||||
| Weight | 295kg | 350kg | ||||
| Power | AC220V,12A | 1∮,AC220V,30A or specified by user | ||||
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
