| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity (optional): | 100N, 200N, 500N,1,2,5,10,20,30,50kN | Unit (switchable): | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
|---|---|---|---|
| Load Resolution: | 1/500,000 | Load Accuracy: | ±0.25% |
| Load Range: | Rangless | Stroke (exclude The Grips): | 800mm, 1000mm (optional) |
| Warranty: | 1 Year | ||
| High Light: | computerized universal testing machine,universal test equipment |
||

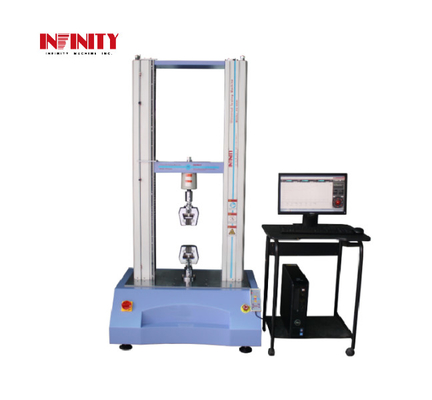

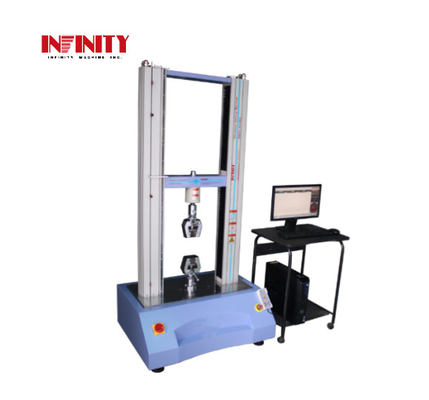

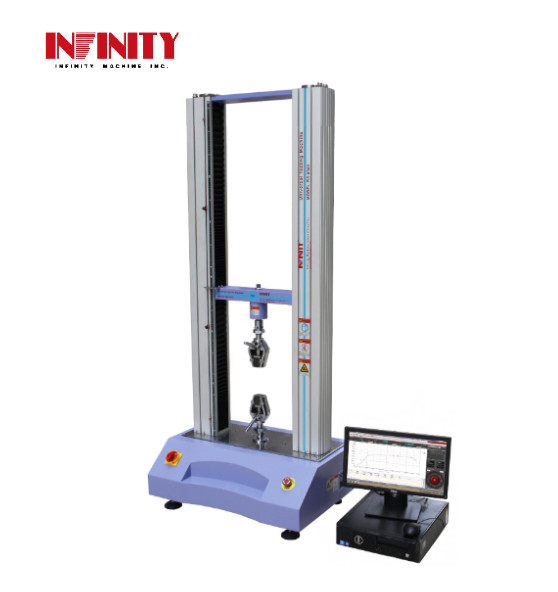

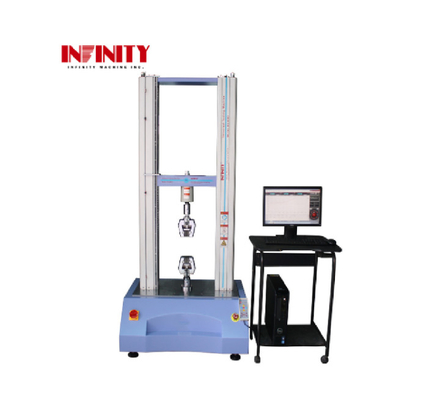

1,2,5,10,20,50KN Universal Tensile Testing Machine for Metal with Servo Motor
Purpose:
This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength, fatigue etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, non-woven fabrics, textile, tape, polyfoam, waterproof material, electric wire, electric cable, etc., which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C.), Physical inspection, Mechanics research and material development.
Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle.
Can record and memorize the whole testing data.
S Standard:
The testing machine is manufactured according to the standards including GB/T 16491-2008, GB2611-2007, JB6146-2007, JJF1246-2010.
To meet GB/T228-2002, GB/T14452-93 standard testing requirements.
To meet ASTM D638-03, ASTM D790-07 standard testing requirements.
To meet GB/T2792, ASTM D3330-04 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A—Single-Coated Tapes at 180° Angle), ASTM D1894-06 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting(Single Coated Tapes at 90° Angle) standard testing requirements.
Features:
High accuracy:
Adopt AC servo motor to driving the high precise Taiwan ABBA ball screw working, with high precise America TRANSCELL explosion-proof load cell, load accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High performance:
Automatic broken identification, automatically return, point collected by hand, multi-units switching, English and Chinese languages can be choice. And also have many kinds of analysis curve: stress vs strain curve, load vs flexure curve, strength vs deformation curve, strength vs time curve, time vs flexure curve.
Specification:
| Model | RS-8000 | |
| Capacity (optional) | 100N, 200N, 500N, 1, 2, 5, 10, 20, 30, 50KN | |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2 | |
| Power system |
Japan Panasonic serve motor Italy Motovaria gearbox Japan Mitsubishi synchronous belts Taiwan ABBA ball screw |
|
| Load resolution | 1/500,000 | |
| Load accuracy | ±0.25% | |
| Load range | rangless | |
| Stroke (exclude the grips) | 800mm,1000mm (optional) | |
| Effective width | 400mm, 500mm (optional) | |
| Test speed | 0.001~500mm/min | |
| Speed accuracy | ±0.5% | |
| Stroke resolution | 0.001mm | |
| Software | Profession software | |
| Motor | AC servo Motor | |
| Main unit dimension | W830xD670xH1940mm | |
| Main unit weight | 345Kg | |
| Power supply | AC220V 5A or specified by user |
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for our test machines. If you have any questions or need assistance, please feel free contact us.

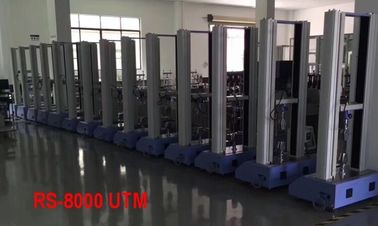

Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
