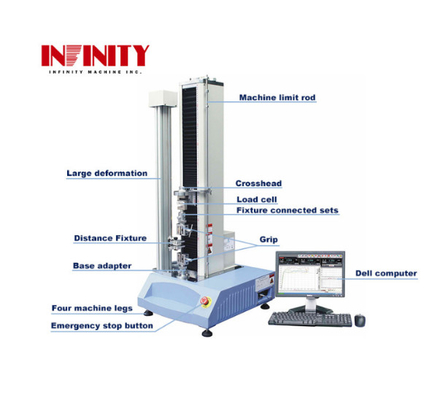

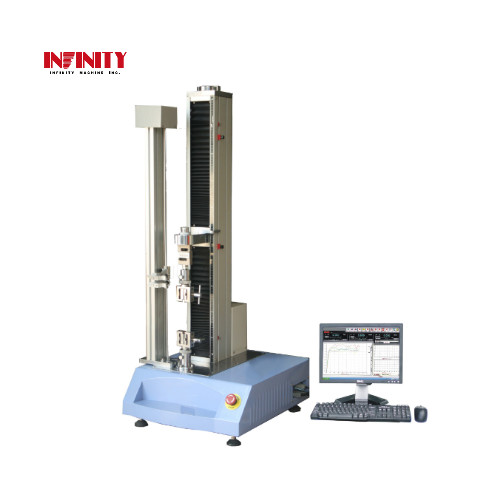

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width
5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width
5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE; ISO
Model Number: RS-8010A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN Unit Dimesion: 500x600x1280mm (stroke At 650mm)
Weight: About 140kg Aplication: Plastic, Metal, Textile, Tape Peeling, Adhesion, Tensile Tester
Load Resolution: 1/500,000 Load Accuracy: 0.25%
Stroke: 650,1000mm(optional) Effective Width: 130mm
Highlight:

utm universal testing machine

,

universal test equipment

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine

Model: RS-8010A

Product Description


5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width 0




Purpose:
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable & thread, textile, net rope, non-woven fabrics ect nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, stretching, compression, bending, peeling, cutting, tearing tests.
RS-8010 is used for laboratory precise test, can do many data analyse and printing special sports)



Specification:

Model RS-8010
Purpose Test room for precision test, control by computer
Capacity (optional) 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN
Unit (switchable) N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
Load resolution 1/500,000
Load accuracy ±0.25%
Stroke (exclude the grips) 650mm or 1000mm (optional)
Effective width 130mm
Test speed 0.001~500mm/min
Load range rangless
Speed accuracy ±0.5%
Stroke resolution 0.001mm
Motor AC servo Motor
Software Standard software
Transmission rod High accuracy ball screw

Main unit dimension

(WxDxH)

500x600x1280mm (stroke at 650mm)

or 500x600x1550mm (stroke at 1000mm)

Main unit weight About 140Kg
Power supply AC220V 10A or specified by user



Software interface:

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width 1

Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



Our workshop:

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width 2



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width 3

Packing and Shipping:

Packaging and Shipping

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width 4

5KN Tape Peeling Strength Testing Machine / Adhesion Test Machine 130mm Width 5



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
