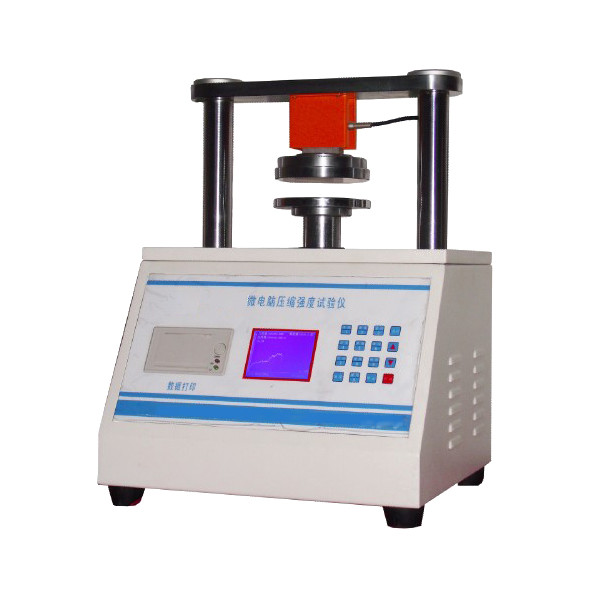

Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution

Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution

    • Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution
    • Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution
  • Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: IN-3003 / IN-3003T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Measuring Range: 5N~3000N Accuracy: ≤±1%
    Testing Force Range: 0.4%~100%FS Load Accuracy: 0.1N
    Test Speed: 12.5±1mm/min Printout: Modular Thermal Printer
    Weight: 45kg Dimension: 400*400*600mm / 350*310*500mm
    High Light:

    packaging testing equipments

    ,

    packaging testing equipment



    Paper and Board Compressive Strength Testing Equipment GB/T 2679.8 5~3000N Load



    Model: IN-3003 / IN-3003T



    Application:



    Compressive Strength Testing Equipment for paper and board is used for testing ring crush resistance(RCT) of paper and board, edge crush resistance(ECT) of paper board, adhesive strength(PAT) of corrugated board, flat crush resistance(FCT) of corrugated board, corrugating medium CMT and corrugating medium CCT and other items.



    Standard:



    GB/T 2679.8 ,GB/T 6546,GB/T 6548,GB/T 2679.6



    Specification:



     Model  IN-3003  IN-3003T
     Measuring range  5~3000N
     Accuracy  ≤±1%
     Testing force range  0.4%-100%FS
     Load accuracy  within ±1%
     Load resolution  0.1N
     Deformation resolution  ≤0.1mm
     Parallelism of pressing plate  ≤0.05mm
     Test speed  12.5±1mm/min
     Human-computer interface  3.5in 320*240 lattice LCD, curve  oscillogram display  3.2in LCD
     Printout  modular thermal printer
     Dimension  400×400×600mm  350×310×500mm
     Weight  45kg





    RCT Clamp:



    Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution 0



    ECT Clamp:



    Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution 1



    PAT Grip:



    Paper and Board Compressive Strength Package Testing Equipment 0.1N Load resolution 2
