300KN Universal Test Machines , Universal Test Equipment Closed-loop Control

300KN Universal Test Machines , Universal Test Equipment Closed-loop Control

    • 300KN Universal Test Machines , Universal Test Equipment Closed-loop Control
    • 300KN Universal Test Machines , Universal Test Equipment Closed-loop Control
    • 300KN Universal Test Machines , Universal Test Equipment Closed-loop Control
  • 300KN Universal Test Machines , Universal Test Equipment Closed-loop Control

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-8000A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Max. Capacity: 300KN Max. Stroke: 800mm
    Effective Width: 400mm / 600mm Test Speed: 0.001~300mm/min
    Speed Accuracy: ±0.5% Main Unit Weight: Closed-loop Control
    Dimension: 1220x720x2200mm Power Supply: AC220V 15A Or Specified By User
    High Light:

    computerized universal testing machine

    ,

    universal test equipment



    600KN Capacity Universal Test Machines , Universal Test Equipment Closed-loop Control



    Model: RS-8000A



    Purpose:



    It is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.

    Computer control style RS-8000A ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).



    Features:



    High accuracy:

    Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



    High performance:

    Automatic broken identification, automatically return, point collected by hand, units switching and 9 kinds of languages can be selected: Chinese, English, Japanese, Germany, French, Russian, Spanish and Portuguese.



    Superior software program:

    Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.



    Multi-function:

    Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.



    Specification:



     Model  RS-8000A
     Max. capacity  300KN
     Unit (switchable)  N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
     Load resolution  1/500,000
     Load accuracy  ±0.25%
     Load range  Rangless
     Max. stroke (exclude the grips)  800mm (optional)
     Effective width  400mm , 600mm (optional)
     Test speed  0.001~300mm/min
     Speed accuracy  ±0.5%
     Displacement resolution  0.001mm
     Software  Closed-loop control software
     Motor  AC servo Motor
     Transmission rod  High accuracy ball screw
     Main unit dimension (WxDxH)  1220x720x2200mm
     Main unit weight  1500 Kg
     Power Supply  AC220V 15A or specified by user

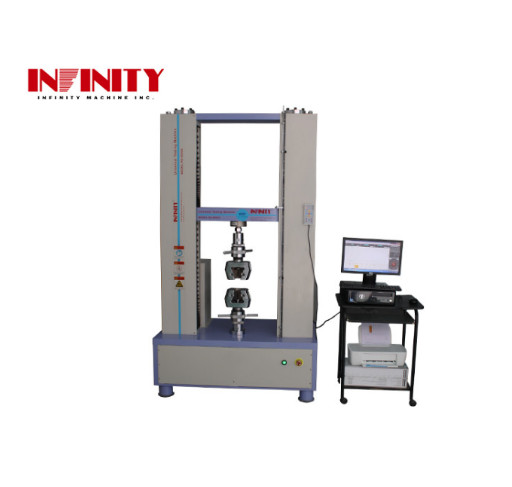

    Picture:



    300KN Universal Test Machines , Universal Test Equipment Closed-loop Control 0



    300KN Universal Test Machines , Universal Test Equipment Closed-loop Control 1
